Hardware Installation
C
OMPLETE INSTALLATION INSTRUCTIONS
The following procedures illustrate a complete step-by-step guide on installing the emulator.
-
+
F
2-1. E
IGURE

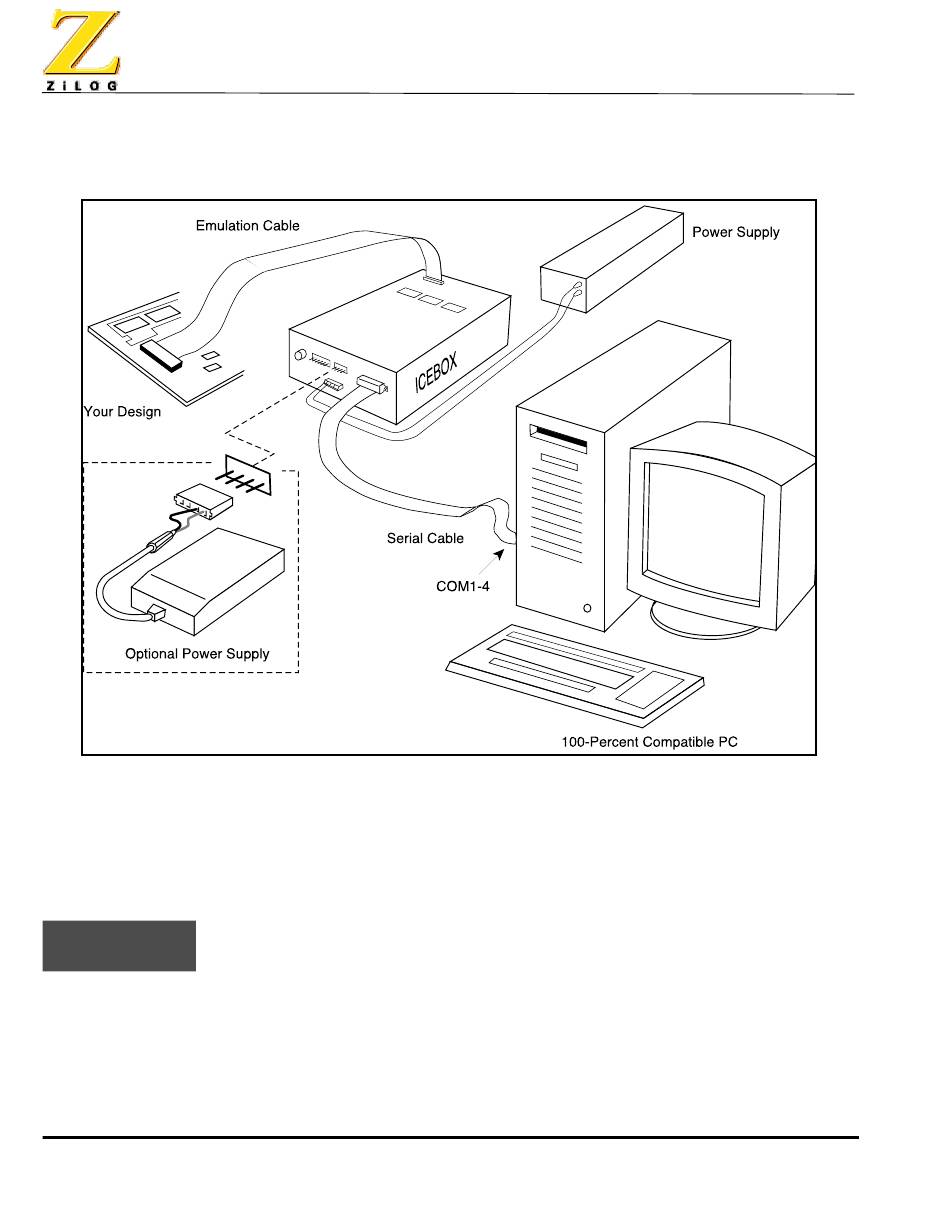

MULATOR CONNECTION
Set Power Jumper
The Z86L9900100ZEM ICEBOX allows the user to power the emulator and target from a
variety of different sources. Before powering the emulator the user should select their power
configuration.
CAUTION!
The user must choose their power source before powering the emulator. Before selecting a
power source study Figure 2-2, which shows a schematic of the J6 power jumper. Failure to
properly configure the power source will result in damage to the emulator or target.
2–2
Set-Up and Installation
UM005100-IRR0400
