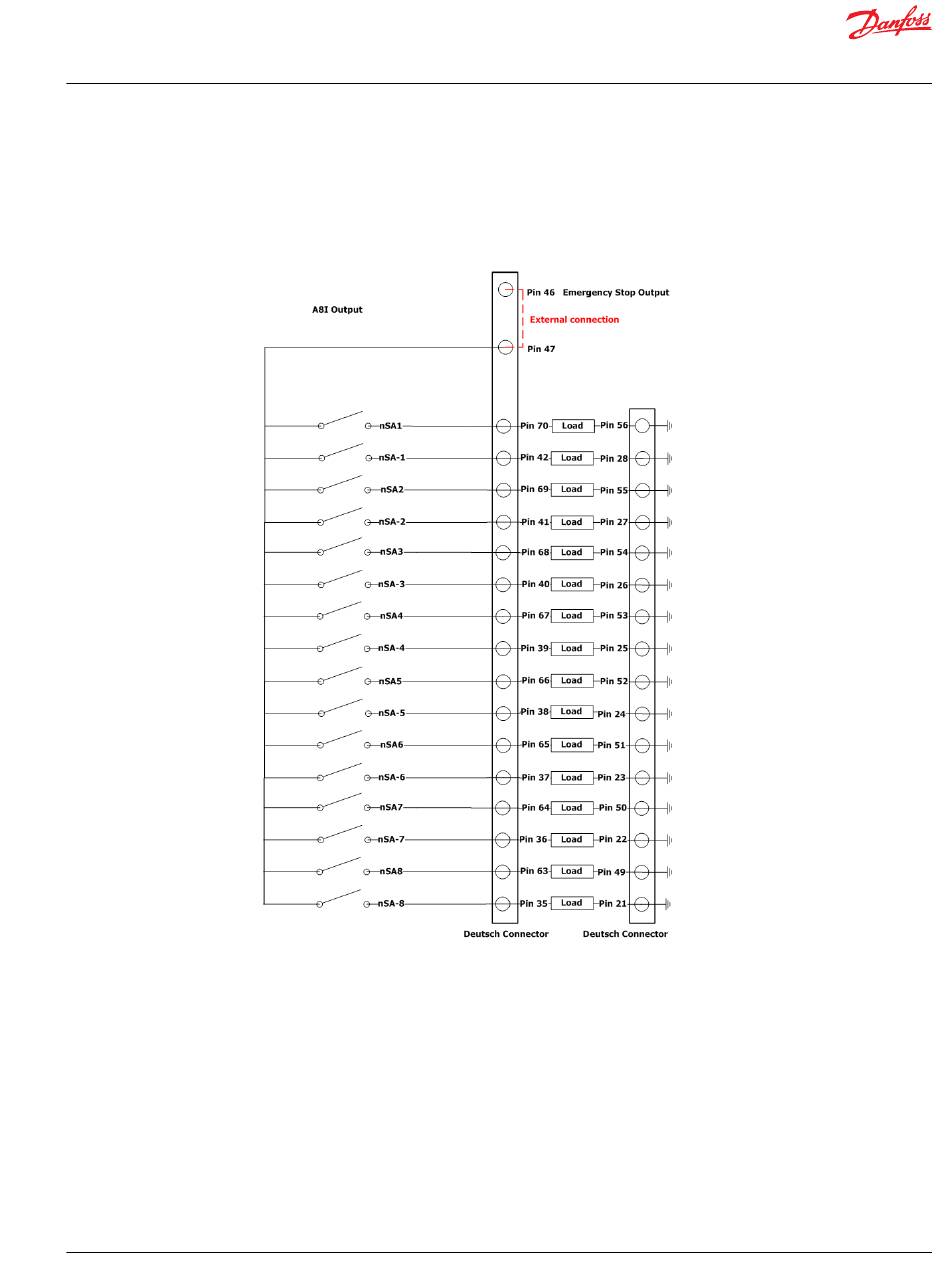

MP20 analog outputs
The analog outputs have a common contact at pin 47 of the connector. This pin is connected to pin 46
(stop) for powering up the 1-8 outputs. Maximum 2A per output.
nSA1-nSA8 have a common contact at pin 47 of the connector. Pin 47 connects with pin 46 (stop) in
order to feed nSA1-nSA8 outputs. Maximum 2A per output.
BC292562489617en-000101 | 11
