User Manual
MP20A Receiver
Installation

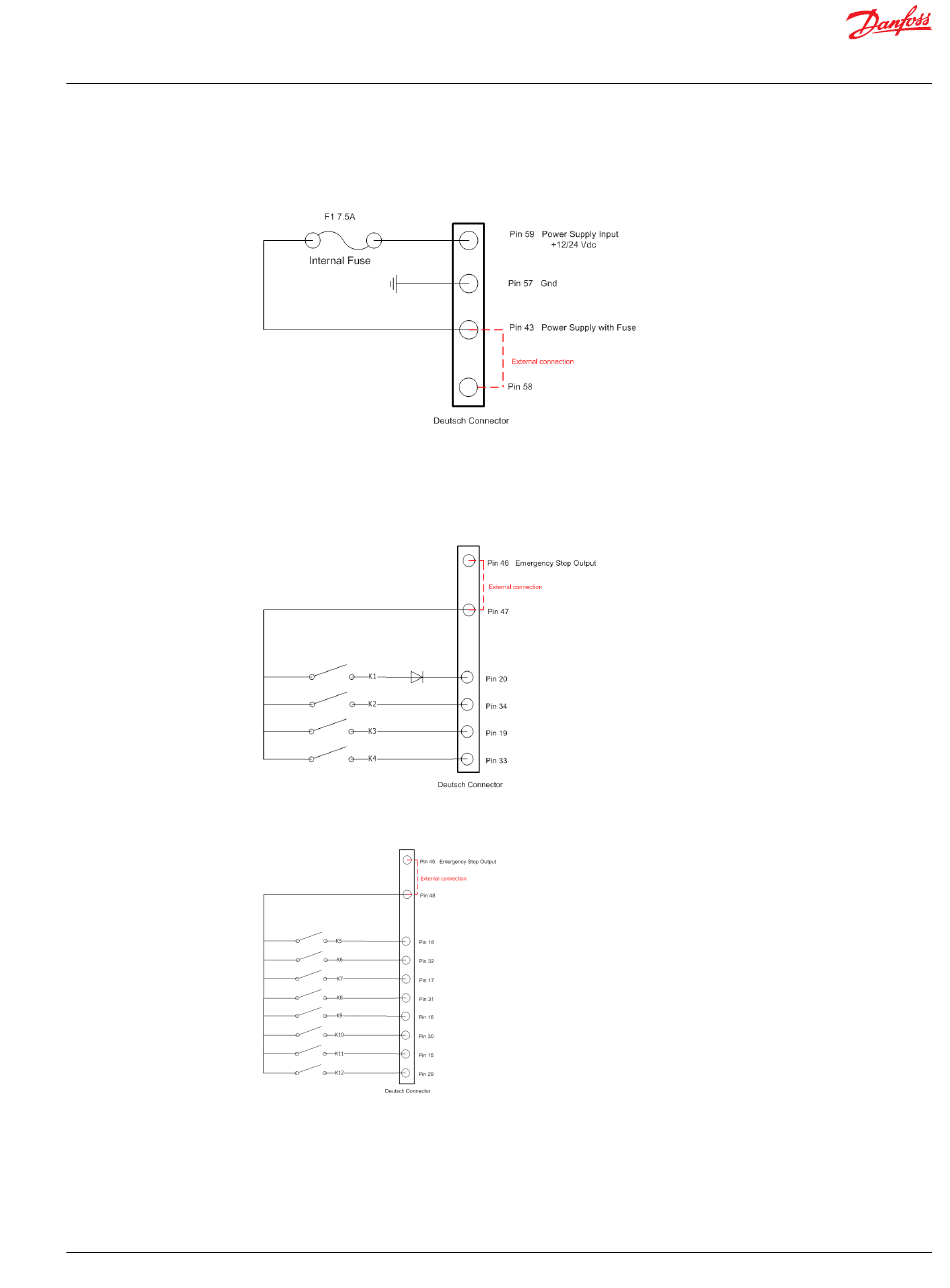

MP20 input and output configuration
©
Danfoss | January 2019
The MP20 includes a 7.5A permeable internal fuse.
MP20 digital outputs
The digital outputs K1-K4 have a common contact at pin 47 of the connector. This pin is connected to pin
46 (stop) for powering up this group of outputs. Maximum 2A per output. It is recommended to use K1
for by-pass valve.
The digital output K5-K12 have a common contact at pin 48 of the connector. This pin is connected to pin
45 (stop) for powering up this group of outputs. Maximum 2A per output.
As an alternative, the K5-K12 output group can be connected directly to the external general power
supply in order to provide a higher capacity of current.
BC292562489617en-000101 | 9
