Solinst Levelogger Series User Manual page 30

Levelogger User Guide - Software Version 3.2.3 or Higher

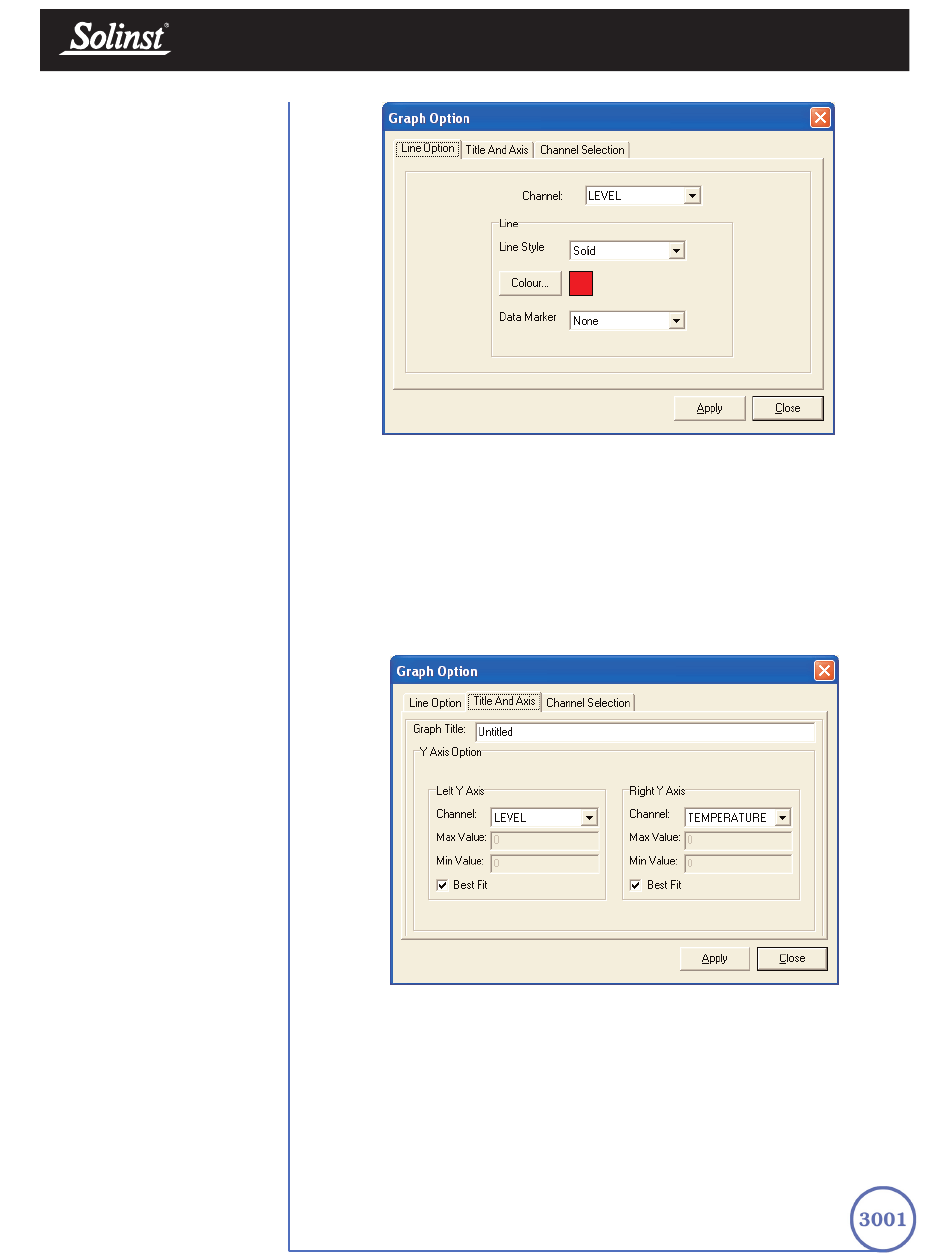

F F i i g g u u r r e e 7 7 - - 5 5 L L i i n n e e O O p p t t i i o o n n W W i i n n d d o o w w
The Line Option is used to adjust the style and colour of the line in the graph
for each channel. The user can also select the shape of the data marker or
remove the data marker.
F F i i g g u u r r e e 7 7 - - 6 6 T T i i t t l l e e a a n n d d A A x x i i s s W W i i n n d d o o w w
The Title and Axis Option is used to enter the title of the graph and change the
Y axis label or user selected scale. Check the Best Fit box to enable the software
to determine the best fit scale. If the Best Fit box is not checked, the user has
to enter a maximum and minimum value of the selected channel. The X axis is
logging time.
Page 30
