Status LEDs and Buttons

This section contains information for interpreting front, rear, and internal LED states.

Front Panel LEDs

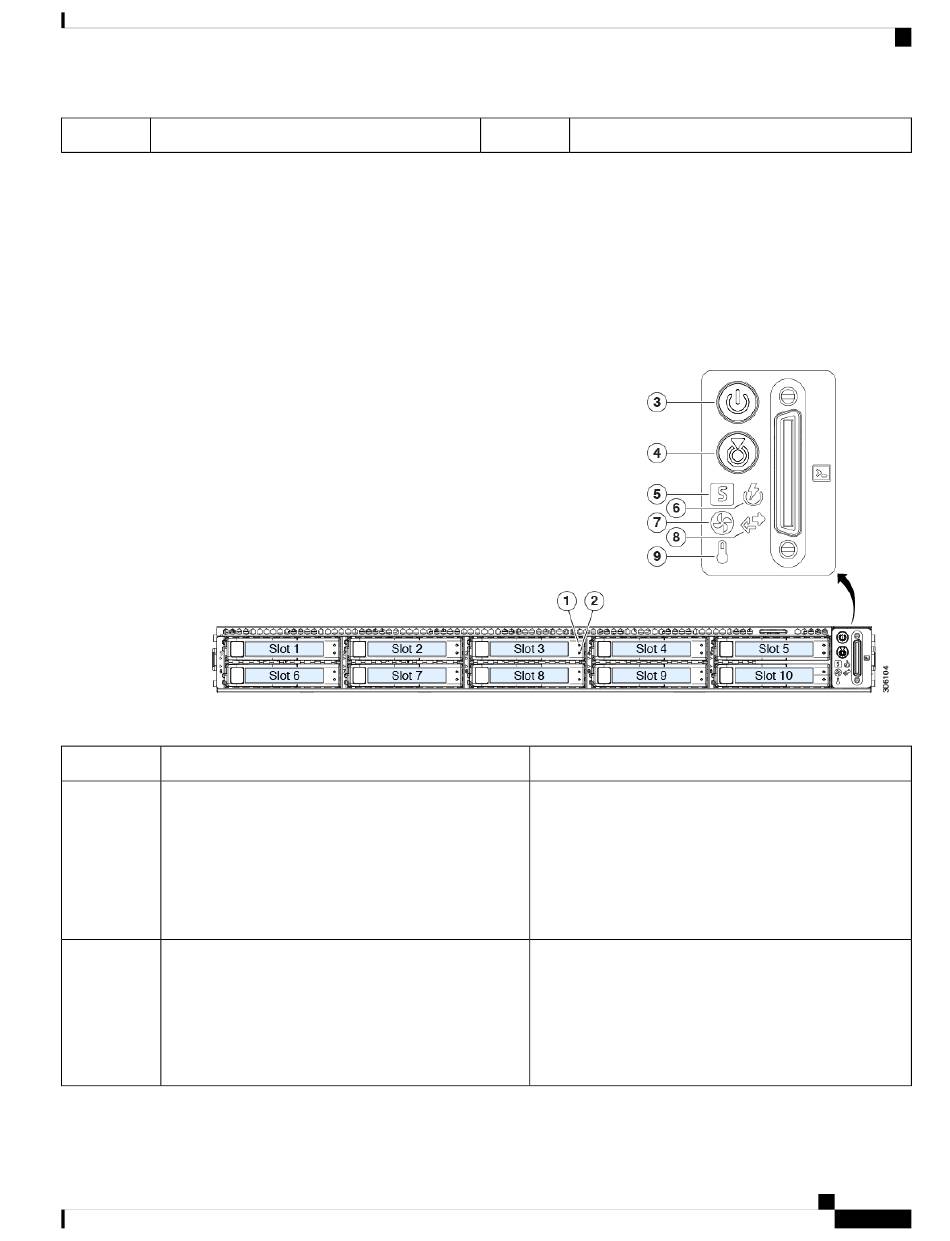

The following figure shows the front panel LEDs of Cisco SNS 3600 series appliance.
Figure 3: Front Panel LEDs
Table 2: Front Panel LEDs
LED Name
1 SAS/SATA drive fault
NVMe SSD drive tray LEDs have different
SAS Note
behavior than SAS/SATA drive trays.
2 SAS/SATA drive activity LED
SAS
-
States
• Off—The hard drive is operating properly.
• Amber—Drive fault detected.
• Amber, blinking—The device is rebuilding.
• Amber, blinking with one-second interval—Drive
• Off—There is no hard drive in the hard drive tray (no
• Green—The hard drive is ready.
• Green, blinking—The hard drive is reading or writing
Cisco Secure Network Server 3600 Series Appliance Hardware Installation Guide
locate function activated in the software.
access, no fault).
data.
