Cisco Secure Network Server 3600 Series Appliance Overview

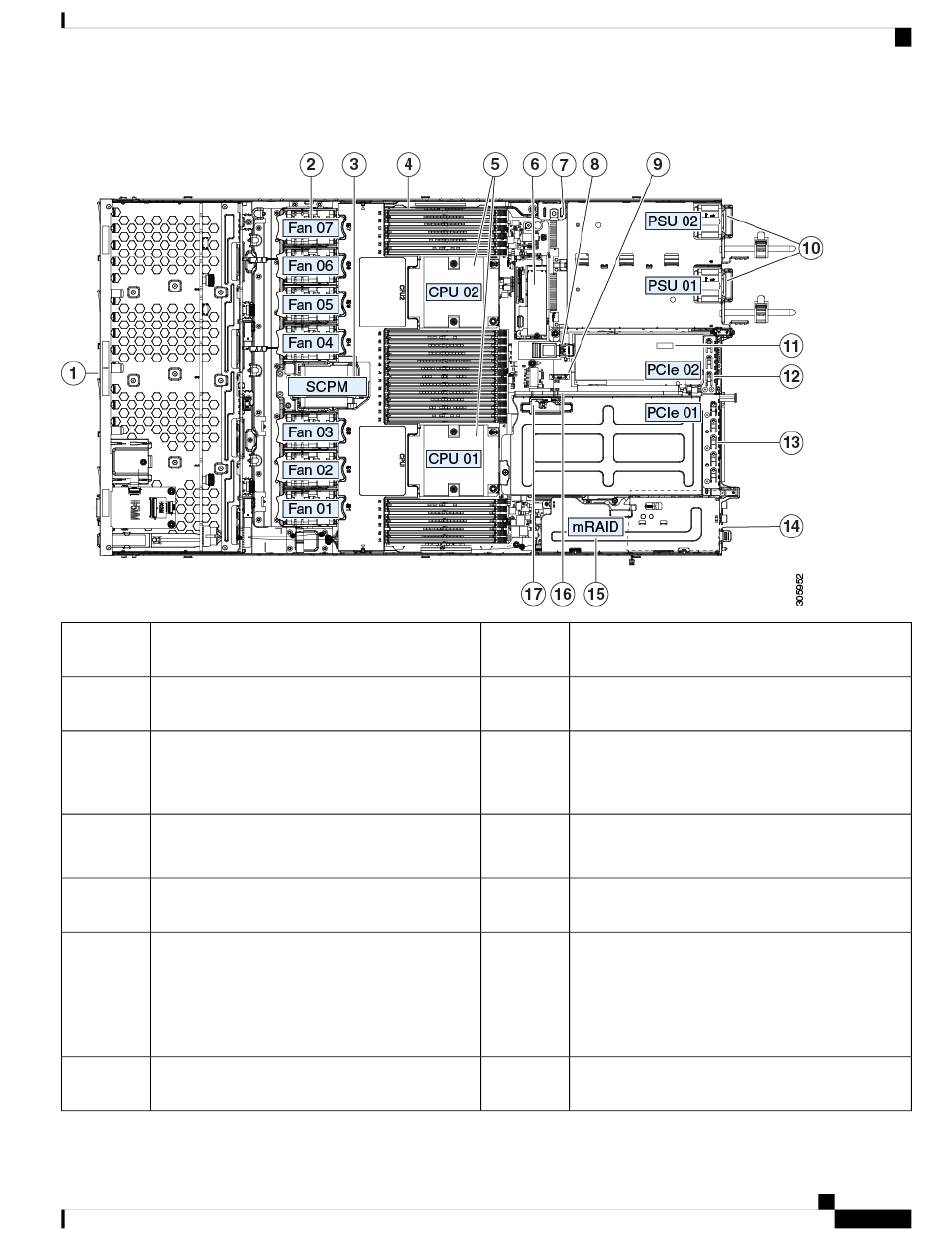

Figure 6: Serviceable Component Locations
1 Front-loading drive bays 1–10 support SAS/SATA
drives
2 Cooling fan modules (seven, hot-swappable)
3 Supercap unit mounting bracket (RAID backup)
4 DIMM sockets on motherboard (12 per CPU)
5 CPUs and heatsinks (up to two)
Mini storage module socket
6
Supports either an SD card module with two SD
card slots; or an M.2 module with two NVMe or
SATA M.2 SSD slots.
7 Chassis intrusion switch (optional)
10
11
12
13
14
15
16
Cisco Secure Network Server 3600 Series Appliance Hardware Installation Guide
Serviceable Component Locations
Power supplies (hot-swappable when redundant as
1+1)
Trusted platform module (TPM) socket on
motherboard (not visible in this view)
PCIe riser 2 or slot 2 (half-height, x16 lane)
Includes PCIe cable connectors for front-loading
NVMe SSDs (x8 lane)
PCIe riser 1 or slot 1 (full-height, x16 lane)
Includes socket for Micro-SD card
Modular LOM (mLOM) card bay on chassis floor
(x16 PCIe lane), not visible in this view
Modular RAID (mRAID) riser, can optionally be a
riser that supports either:
• Hardware RAID controller card
• Interposer card for embedded SATA RAID
PCIe cable connectors for front-loading NVMe SSDs
on PCIe riser 2
