KRUPS
ESPRESSERIA AUTOMATIC
SERIE EA 80xx
www.krups.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Espresseria Automatic EA 80 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Krups Espresseria Automatic EA 80 Series

Summary of Contents for Krups Espresseria Automatic EA 80 Series

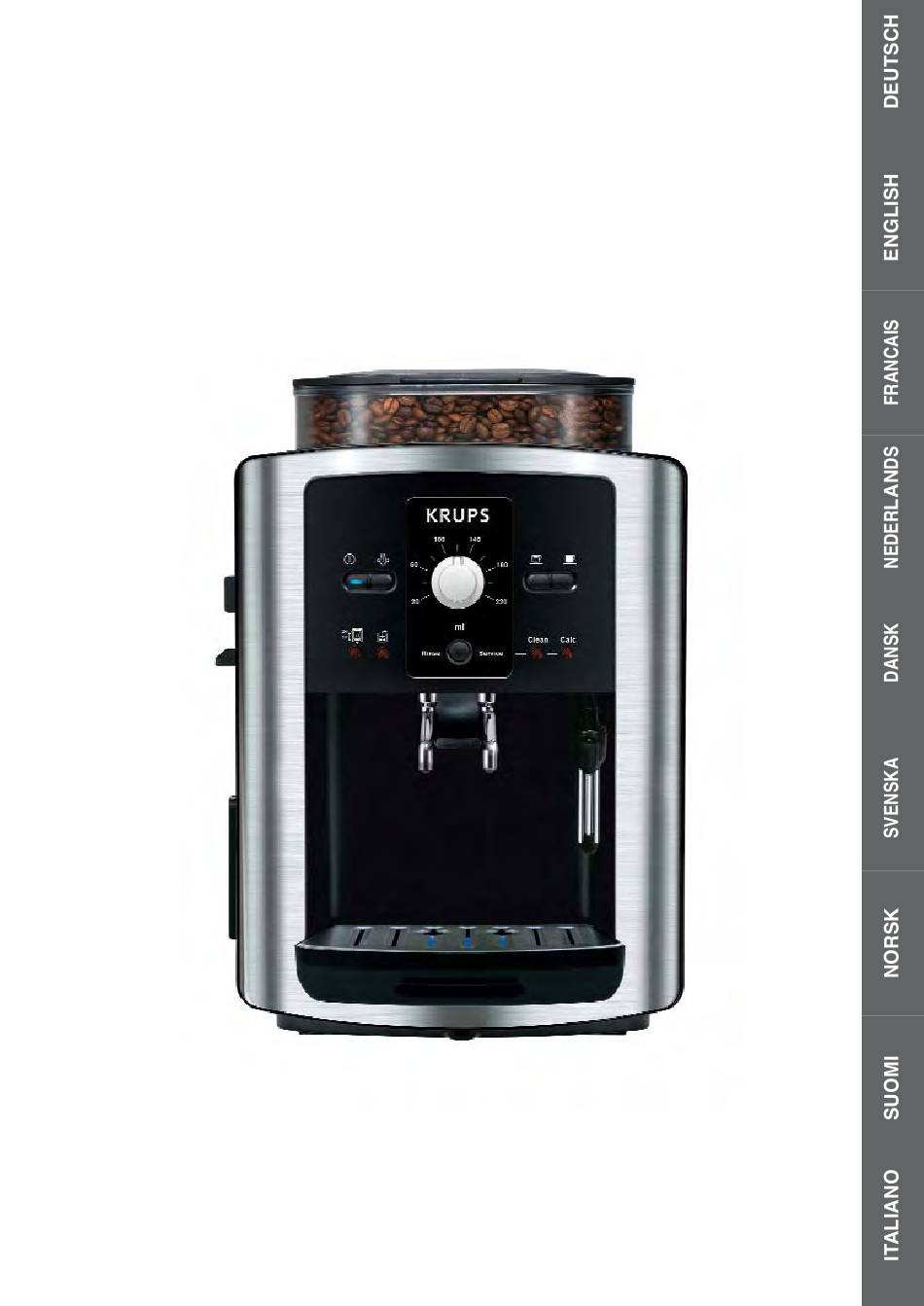

  • Page 1 KRUPS ESPRESSERIA AUTOMATIC SERIE EA 80xx www.krups.com...
  • Page 2 10 9...
  • Page 3 KRUPS ESPRESSERIA AUTOMATIC SERIE EA 80xx Use and maintenance...
  • Page 4 KRUPS Espresseria Automatic Important Read these instructions carefully and keep them. Please follow the safety guidelines Manufacturer SAS Groupe SEB Moulinex Rue Saint-Léonard F-53104 Mayenne France Use and maintenance / SERIE EA 80xx...

  • Page 5: Table Of Contents

    KRUPS Espresseria Automatic Contents 1 Important information on the appliance and instructions ..5 1.1 Your Automatic Espresseria ...............5 1.2 Guide to the symbols used in the instructions ......... 1.3 Safety guidelines ..................6 1.4 Correct use ....................8 1.5 Products supplied with your machine............8 1.6 Factory check ....................8...
  • Page 6 KRUPS Espresseria Automatic Use and maintenance / SERIE EA 80xx...

  • Page 7: Important Information On The Appliance And Instructions

    Read these instructions carefully before using the appliance for the first time and keep them: Krups may not be held responsible for any incorrect use. 1.1 Your Automatic Espresseria Espresso or lungo, ristretto or cappuccino, your automatic espresso/coffee maker has been designed to allow you to taste the same coffee at home as in a coffee bar at any time of the day.

  • Page 8: Safety Guidelines

    The power cord must be re- same as that of your electrical supply. placed by a Krups' Approved After-Sales Only connect the appliance to an earthed Service Centre. mains socket.
  • Page 9 • described in the procedures in the KRUPS' Approved After-Sales Service instructions for the appliance, all work on Centre (see list in the KRUPS service the appliance must be carried out by a handbook). KRUPS' Approved After-Sales Service For safety and approval (CE) reasons, •...

  • Page 10: Correct Use

    If any parts are missing, contact our hot- - Cartridge fitting accessory line (see chapter 10). • Maintenance kit, including: Parts supplied: - 1 descaling sachet (KRUPS – ref F054) • Automatic Espresseria - 2 cleaning tablets (KRUPS – ref XS3000) •...

  • Page 11: Overall View Of Your Automatic Espresseria And Its Operation9

    KRUPS Espresseria Automatic 2 Overall view of your Automatic Espresseria and its operation All of the controls and displays of your associated to numbers referred to in Automatic Espresseria are presented these instructions. The corresponding below. references in brackets refer to the fold- Each function is briefly described, to help out page.

  • Page 12: Display Elements

    KRUPS Espresseria Automatic N° Identification Function Coffee bean holder lid Holds the coffee beans Used to set the grinding fineness of the coffee beans: fine, Setting button medium or coarse grind Grinder Grinds the coffee beans Coffee bean holder Holds the coffee beans (max. 275 g)

  • Page 13: The Indicator Lights And Their Meanings

    KRUPS Espresseria Automatic 2.3 The indicator lights and their meanings ON/OFF Water tank Clean indi- Collector in- Calc indi- indicator indicator dicator light cator light cator light light light Meaning The appliance is ready for a coffee or steam cycle.

  • Page 14: First Use Of Your Automatic Espresseria

    KRUPS Espresseria Automatic 3 First use of your Automatic Espresseria Danger : Connect the appliance to a mains socket of 230V that is earthed. Failure to do so means that you run the risk of fatal injury due to electricity! Respect the safety guidelines (see point 1.3).
  • Page 15 KRUPS Espresseria Automatic Installing the filter cartridge (optional) The Krups Aqua Filter System F088 car- up to 75%*, chlorine up to 85%*, lead up tridge improves the taste of your water. It to 90%*, copper up to 95%*, aluminium is made of an anti-scale substance like up to 67%*).

  • Page 16: Preparing The Appliance

    KRUPS Espresseria Automatic 3.2 Preparing the appliance Before switching on the appliance, carry maged. Ensure that no foreign particles out the following steps. (e.g. small stones in the coffee beans) get into the holder as they could damage the grinder (not covered by the guaran-...

  • Page 17: Initial Settings

    KRUPS Espresseria Automatic 3.3 Initial settings When using the machine for the first time, you will be asked to confirm several settings. Follow the instructions displayed on the screen. Confirming the settings Important: The appliance must be plug- ged in but not switched on.
  • Page 18 KRUPS Espresseria Automatic The "Calc" indicator light (6) lights up The digital display indicates the coffee Note: The higher the number, the higher temperature preset in the factory (i.e. 2) the temperature of the coffee. Press the "Strong" button several times to set the coffee temperature to the desired value, between 1 and 3.

  • Page 19: Rinsing The Coffee Circuit

    KRUPS Espresseria Automatic 3.4 Rinsing the coffee circuit After several days without being used, "Service" button. you need to rinse the coffee circuit. You may rinse after switching on the ap- pliance or at any time by pressing the Press the ON/OFF button (1).

  • Page 20: Use

    KRUPS Espresseria Automatic 4 Use Respecting the instructions below will Caution : Your appliance is only des- ensure good results. Several tests will igned to use coffee beans. When prepa- probably be required to find the mix and ring your first coffee, after several days...
  • Page 21 KRUPS Espresseria Automatic 4.2 Preparation of an espresso or a coffee You can set the quantity of water Apart from normal strength for these two required for an espresso between 20 and drinks, you can also choose the "strong 70 ml, for a coffee between 80 and 120 coffee"...
  • Page 22 KRUPS Espresseria Automatic 4.3 Preparation of a cappuccino Cappuccino is a drink prepared with an skimmed milk. espresso and frothed milk. Cappuccino Tip : Preferably use a cappuccino cup lovers prepare the frothed milk first and as it is not as high and can contain a then add the espresso as the espresso large volume;...

  • Page 23: Using The Auto-Cappuccino Accessory (Optional)

    KRUPS Espresseria Automatic 4.4 Using the auto-cappuccino accessory (optional) The XS 6000 auto-cappuccino accessory includes a brushed stainless accessory facilitates the preparation of a steel milk jug, a riser tube and a cappuccino or caffe latte (white coffee) connector tube, and a special nozzle.
  • Page 24 KRUPS Espresseria Automatic Preparation of a cappuccino or a caffe latte with the auto-cappuccino accessory Place a recipient or a cappuccino cup un- derneath the special nozzle and press the Steam button. The blue indicator light flashes: the ap- pliance is preheating.

  • Page 25: Cup Function

    KRUPS Espresseria Automatic 4.5 Two cup function Your appliance allows you to prepare 2 The machine automatically continues with cups, which is to say twice the quantity a second coffee preparation cycle. of the selected drink. Place two cups underneath the coffee tubes and adjust their height to suit the cups.

  • Page 26: Maintenance And Cleaning

    KRUPS Espresseria Automatic 5 Maintenance and cleaning ensure that the drip tray is empty to avoid Danger : Any contact of the conduc- water or the cleaning or descaling pro- tive parts of the appliance with humidity duct from being spilt.

  • Page 27: The Cleaning Programme

    Only use KRUPS cleaning tablets least 0.6 litres and that can fit underneath (XS 3000) otherwise the guarantee will the coffee tube, and a KRUPS cleaning not cover any material damaged caused tablet (XS 3000). by the use of other brands of tablets.
  • Page 28 KRUPS Espresseria Automatic Once the cleaning cycle is finished, the "clean" indicator light will flash again. Empty the recipient and put it back under the coffee tubes and steam nozzle. Press the "Service" button. Info : The first rinsing cycle starts and The "clean"...

  • Page 29: The Descaling Programme

    If you use the Krups Aqua Filter System F088 filter cartridge, remove it before the desca- ling operation. Empty the drip tray, empty the water tank and fill it up to the Calc line (0.5 l) with lukewarm water.
  • Page 30 KRUPS Espresseria Automatic Once the descaling cycle has finished, the "calc" (6) and "water tank" (9) indicator lights will start flashing again. Empty the recipient and put it back under the coffee tubes and steam nozzle. Empty the drip tray. Empty and clean the water tank then fill it up to the "max" line.

  • Page 31: The Long Rinsing Cycle

    KRUPS Espresseria Automatic 5.4 The long rinsing cycle Before using for the first time or in case of unusual low flow, the appliance detects it and warns you by flashing "clean" and "calc" lights. Remove, fill and fit the tank.
  • Page 32  Unblock the tube with the come out of the cof- The tube is blocked. cleaning wire or a toothpick. fee tube (24). The coffee grinder  Contact KRUPS Customer Foreign bodies are inside the grin- makes a strange der. Service. noise.
  • Page 33 KRUPS Espresseria Automatic Corrective actions Problem Probable causes  Remove the steam nozzle No steam comes from its support and unblock out of the steam The nozzle or the nozzle support is these two parts using the clea- nozzle (25).
  • Page 34 KRUPS Espresseria Automatic Problem Probable causes Corrective actions  The appliance is automatically A power cut occurs reinitialised when it is switched during the cycle. back on.  Check that the drip tray has There is water un- derneath the ap-...

  • Page 35: Technical Data

    KRUPS Espresseria Automatic 7 Technical data Appliance: Automatic Espresseria Electrical power supply: 220-240V~/50 Hz Energy consumption: In operation: 1450 W In stand-by: < 1 W Capacity: Water tank: 1.8 l Coffee bean holder: 275 g Pump pressure: 15 bar Storage and use:...

  • Page 36: Service

    KRUPS Espresseria Automatic 10 Service For all questions or problems, please contact our hotline on the following numbers: DE : Tel. 0800 980 00 00 Times: Monday to Friday from 8 am to 6 pm and Saturday from 9 am to 2 pm A : Tel.
