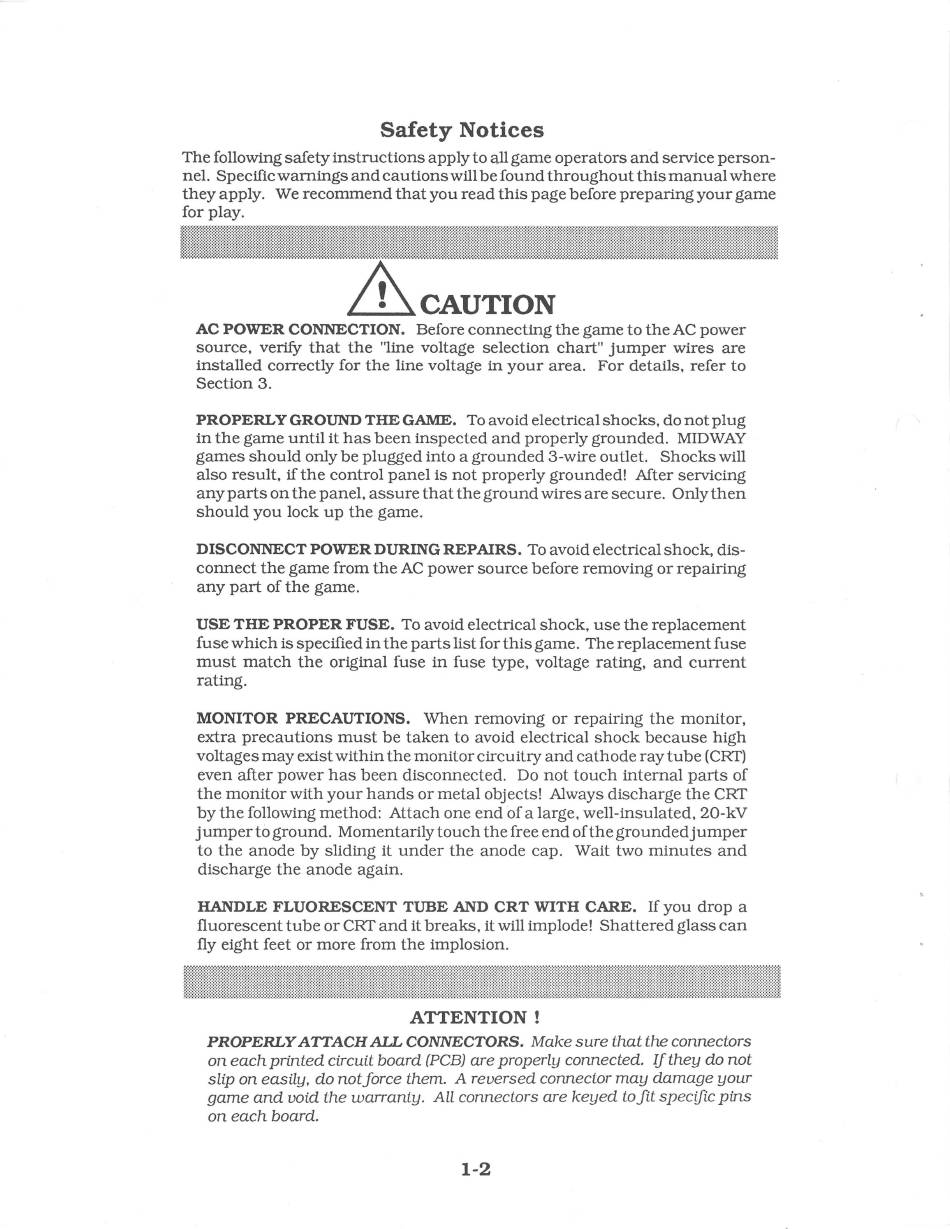

Safety Notices
The following safety instructions apply to all game operators and seIVice person-
nel. Specific warnings and cautions will be found throughout this manual where
they apply. We recommend that you read this page before preparing your game
for play.
BIDBI~:!'.!!~!'=lllillf•IP.Jll1If1P1J
AC POWER CONNECTION.
Before connecting the game to the AC power
source, verify that the "line voltage selection chart" jumper wires are
installed correctly for the line voltage in your area. For details, refer to
Section 3.
PROPERLY GROUND THE GAME.
To avoid electrical shocks, do not plug
in the game until it has been inspected and properly grounded. MIDWAY
games should only be plugged into a grounded 3-wire outlet. Shocks will
also result, if the control panel is not properly grounded! After seIVicing
any parts on the panel, assure that the ground wires are secure. Only then
should you lock up the game.
DISCONNECT POWER DURING REP AIRS. To avoid electrical shock, dis-
connect the game from the AC power source before removing or repairing
any part of the game.
USE THE PROPER FUSE. To avoid electrical shock, use the replacement
fuse which is specified in the parts list for this game. The replacement fuse
must match the original fuse in fuse type, voltage rating, and current
rating.
MONITOR PRECAUTIONS. When removing or repairing the monitor,
extra precautions must be taken to avoid electrical shock because high
voltages may exist within the monitor circuitry and cathode ray tube (CRT)
even after power has been disconnected. Do not touch internal parts of
the monitor with your hands or metal objects! Always discharge the CRT
by the following method: Attach one end of a large, well-insulated, 20-kV
jump er to ground. Momentarily touch the free end of the grounded jumper
to the anode by sliding it under the anode cap. Wait two minutes and
discharge the anode again.
HANDLE FLUORESCENT TUBE AND CRT WITH CARE. If you drop a
fluorescent tube or CRT and it breaks, it will implode! Shattered glass can
fly eight feet or more from the implosion.
ATTENTION!
PROPERLY ATTACH AIL CONNECTORS. Make sure that the connectors
on each printed circuit board (PCB) are properlu connected.
If
they do not
slip on easily, do notjorce them. A reversed connector may damage your
game and void the warranty. All connectors are keyed to fit specific pins
on each board.
1-2
