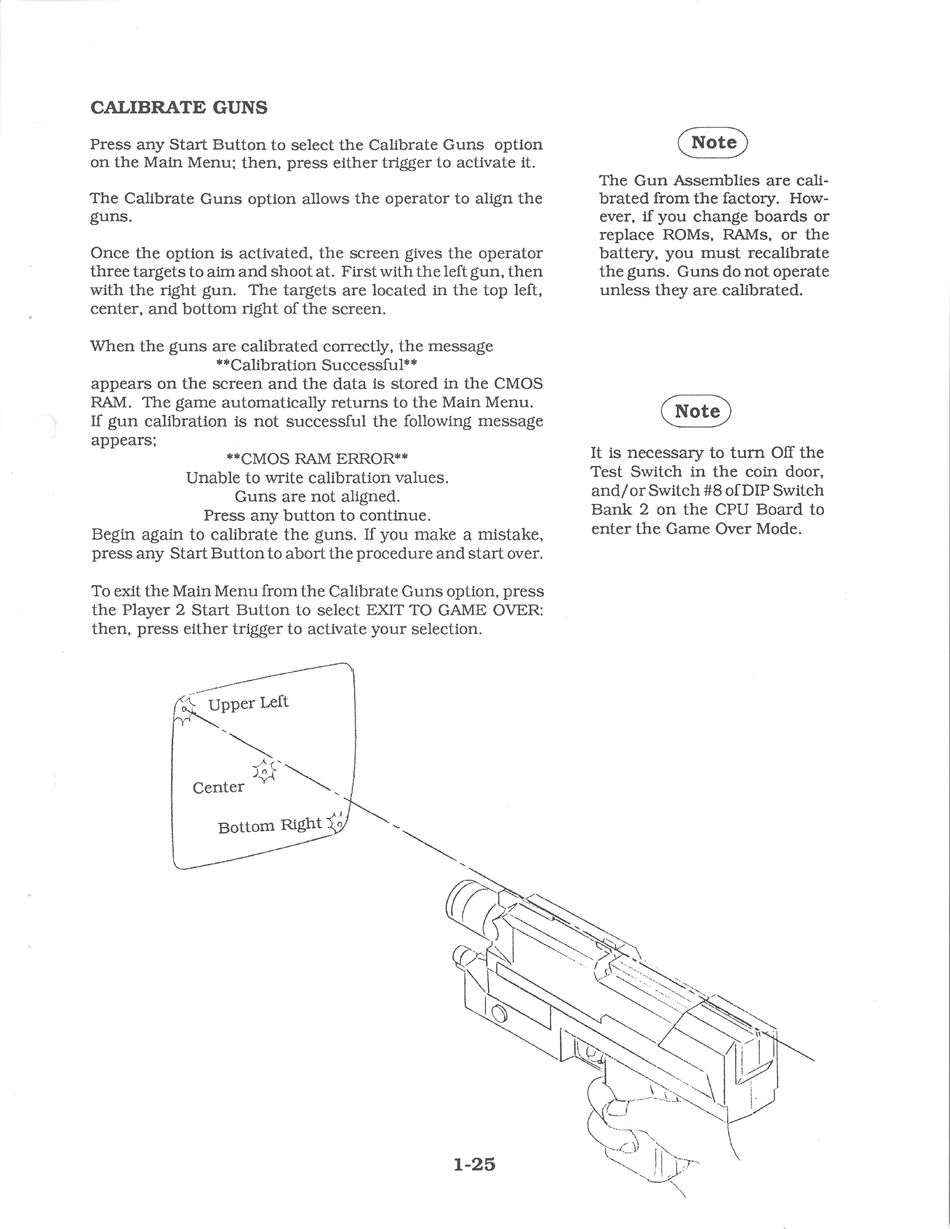

CALIBRATE GUNS
Press any Start Button to select the Calibrate Guns option
on the Main Menu: then, press either trigger to activate
it.
The Calibrate Guns option allows the operator to align the
guns.
Once the option is activated, the screen gives the operator
three targets to aim and shoot at. First with the left gun, then
with the right gun. The targets are located in the top left,
center, and bottom right of the screen.
When the guns are calibrated correctly, the message
**Calibration Successful**
appears on the screen and the data is stored in the CMOS
RAM. The game automatically returns to the Main Menu.
If gun calibration is not successful the following message
appears;
**CMOS RAM ERROR**
Unable to write calibration values.
Guns are not aligned.
Press any button to continue.
Begin again to calibrate the guns. If you make a mistake,
press any Start Button to abort the procedure and start over.
To exit the Main Menu from the Calibrate Guns option, press
the Player 2 Start Button to select ~XIT TO GAME OVER:
then, press either trigger to activate your selection.
The Gun Assemblies are cali-
brated from the factory. How-
ever,
if
you change boards or
replace ROMs, RAMs, or the
battery, you must recalibrate
the guns. Guns do not operate
unless they are calibrated.
It
is necessary to turn Off the
Test Switch in the coin door,
and/ or Switch #8 of DIP Switch
Bank 2 on the CPU Board to
enter the Game Over Mode.
