Dip Switch Test & Table - Midway TERMINATOR 2 JUDGMENT DAY Operation Manual Addendum

Mirror Display
Mirror
Non-mirror
Coinage
DIP Switch
CMOS

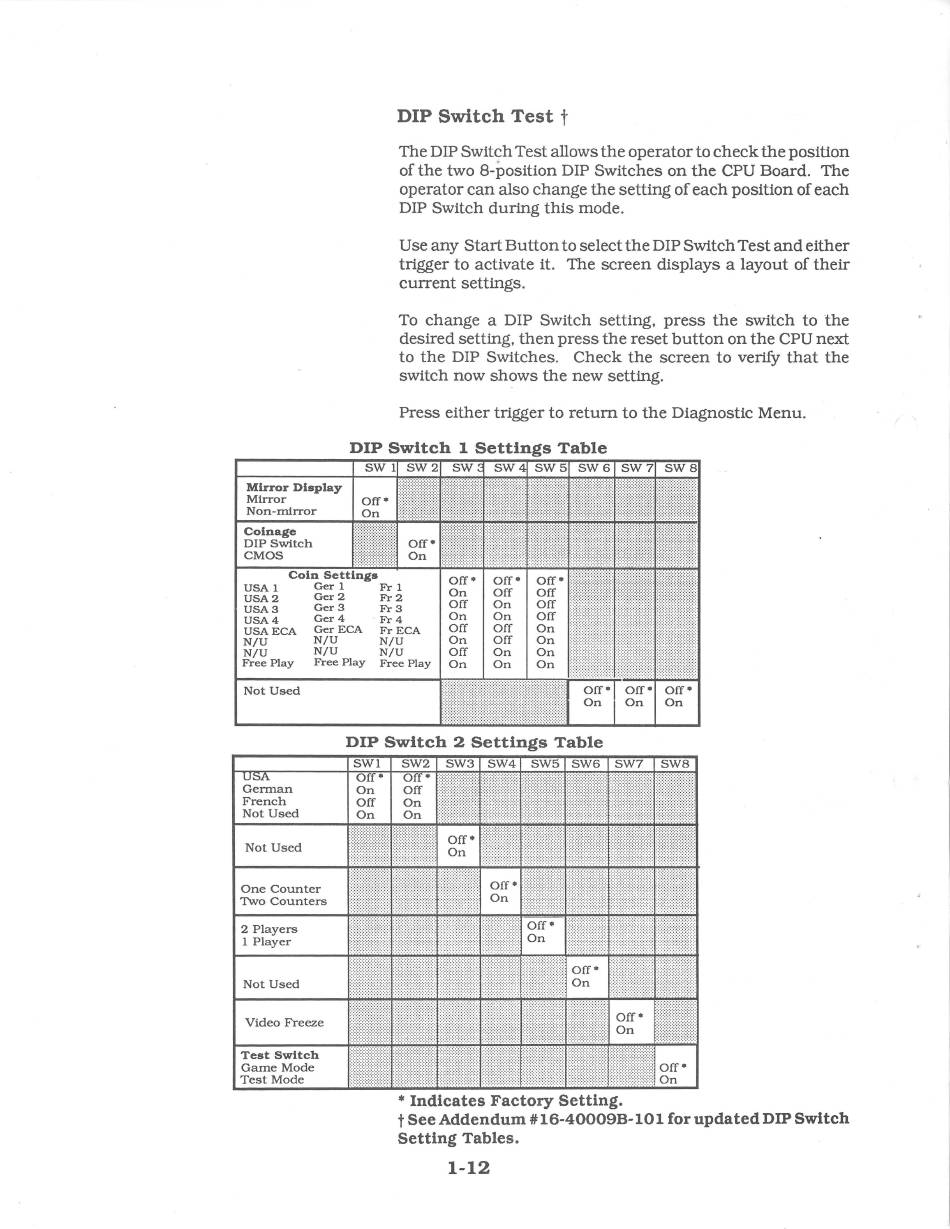

DIP Switch Test
t
The DIP Switch Test allows the operator to check the position
of the two 8-position DIP Switches on the CPU Board. The
operator can also change the setting of each position of each
DIP Switch during this mode.
Use any Start Button to select the DIP Switch Test and either
trigger to activate it. The screen displays a layout of their
current settings.
To change a DIP Switch setting, press the switch to the
desired setting, then press the reset button on the CPU next
to the DIP Switches. Check the screen to verify that the
switch now shows the new setting.
Press either trigger to return to the Diagnostic Menu.
DIP Switch 1 Settings Table
Coln Settings
USA 1
USA2
USA3
USA4
USAECA
N/U
N/U
Free Play
Not Used
Gerl Frl
Ger2 Fr2
Ger 3 Fr 3
Ger4 Fr4
Ger ECA Fr ECA
N/U N/U
N/U N/U
Free Play Free Play
DIP Switch 2 Settings Table
German
French
Not Used
Not Used
One Counter
Two Counters
2 Players
1 Player
Not Used
Video Freeze
Test Switch
Game Mode
Test Mode
*
Indicates Factory Setting.
t
See Addendum# 16-40009B-101 for updated DIP Switch
Setting Tables.
1-12
