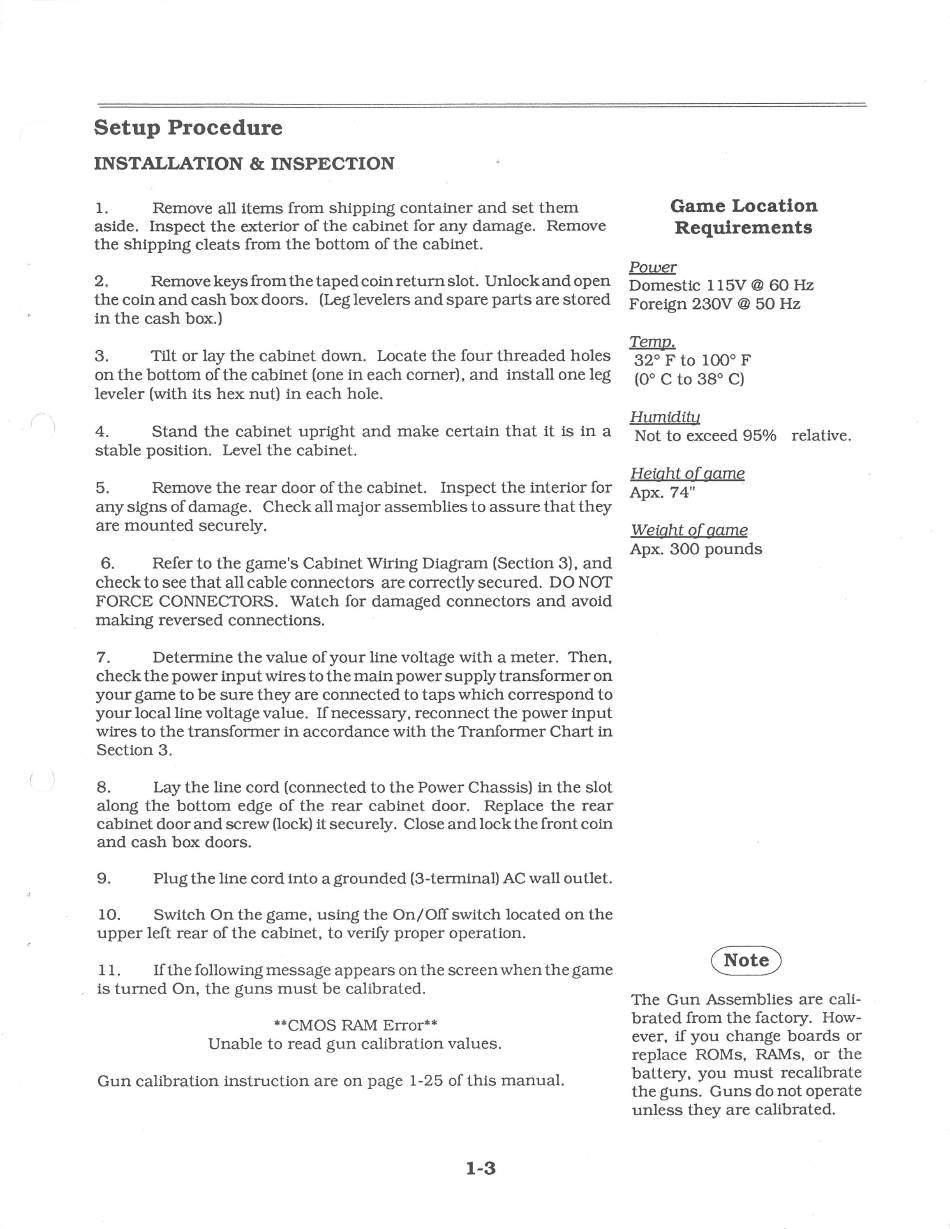

Setup Procedure
INSTALLATION & INSPECTION
1. Remove all items from shipping container and set them
aside. Inspect the exterior of the cabinet for any damage. Remove
the shipping cleats from the bottom of the cabinet.
2. Remove keys from the taped coin return slot. Unlock and open
the coin and cash box doors. (Leg levelers and spare parts are stored
in the cash box.)
Game Location
Requirements
Power
Domestic l l 5V
@
60 Hz
Foreign 230V
@
50 Hz
Temp.
3.
Tilt or lay the cabinet down. Locate the four threaded holes 320 F to 100° F
on the bottom of the cabinet (one in each corner). and install one leg (Oo
c
to 3go C)
leveler (with its hex nut) in each hole.
Humiditu
4. Stand the cabinet upright and make certain that it is in a
Not to exceed 95% relative.
stable position. Level the cabinet.
Height of game_
5. Remove the rear door of the cabinet. Inspect the interior for Apx. 7 4
11
any signs of damage. Check all major assemblies to assure that they
are mounted securely. Weight of game
Apx. 300 pounds
6. Refer to the game's Cabinet Wiring Diagram (Section 3), and
check to see that all cable connectors are correctly secured. DO NOT
FORCE CONNECTORS. Watch for damaged connectors and avoid
making reversed connections.
7. Determine the value of your line voltage with a meter. Then,
check the power input wires to the main power supply transformer on
your game to be sure they are connected to taps which correspond to
your local line voltage value. If necessary, reconnect the power input
wires to the transformer in accordance with the Tranf ormer Chart in
Section 3.
8. Lay the line cord (connected to the Power Chassis) in the slot
along the bottom edge of the rear cabinet door. Replace the rear
cabinet door and screw (lock) it securely. Close and lock the front coin
and cash box doors.
9. Plug the line cord into a grounded (3-terminal) AC wall outlet.
10. Switch On the game, using the On/Off switch located on the
upper left rear of the cabinet, to verify proper operation.
11. If the following message appears on the screen when the game
is turned On, the guns must be calibrated.
**CMOS RAM Error**
Unable to read gun calibration values.
Gun calibration instruction are on page 1-25 of this manual.
1-3
The Gun Assemblies are cali-
brated from the factory. How-
ever, if you change boards or
replace ROMs, RAMs, or the
battery, you must recalibrate
the guns. Guns do not operate
unless they are calibrated.
