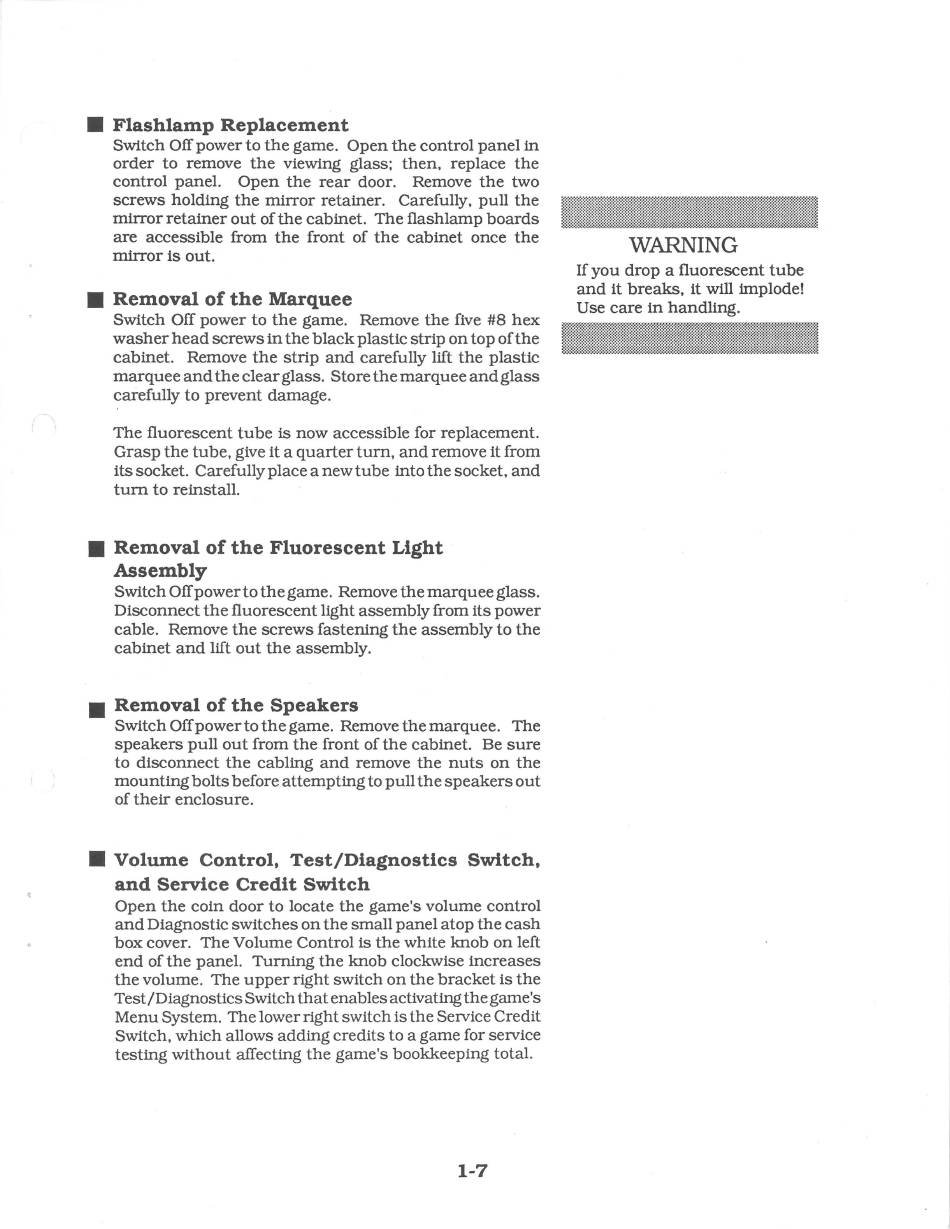

Midway TERMINATOR 2 JUDGMENT DAY Operation Manual Addendum page 14

• Flashlamp Replacement
Switch Off power to the game. Open the control panel in
order to remove the viewing glass: then, replace the
control panel. Open the rear door. Remove the two
screws holding the mirror retainer. Carefully, pull the
mirror retainer out of the cabinet. The flashlamp boards
are accessible from the front of the cabinet once the
mirror is out.
• Removal of the Marquee
Switch Off power to the game. Remove the five #8 hex
washer head screws in the black plastic strip on top of the
cabinet. Remove the strip and carefully lift the plastic
marquee and the clear glass. Store the marquee and glass
carefully to prevent damage.
The fluorescent tube is now accessible for replacement.
Grasp the tube, give it a quarter turn, and remove it from
its socket. Carefully place a new tube into the socket, and
turn to reinstall.
• Removal of the Fluorescent Light ·
Assembly
Switch Off power to the game. Remove the marquee glass.
Disconnect the fluorescent light assembly from its power
cable. Remove the screws fastening the assembly to the
cabinet and lift out the assembly.
• Removal of the Speakers
Switch Off power to the game. Remove the marquee. The
speakers pull out from the front of the cabinet. Be sure
to disconnect the cabling and remove the nuts on the
mounting bolts before attempting to pull the speakers out
of their enclosure.
• Volume Control, Test/Diagnostics Switch.
and Service Credit Switch
Open the coin door to locate the game's volume control
and Diagnostic switches on the small panel atop the cash
box cover. The Volume Control is the white knob on left
end of the panel. Turning the knob clockwise increases
the volume. The upper right switch on the bracket is the
Test/Diagnostics Switch that enables activating the game's
Menu System. The lower right switch is the Service Credit
Switch, which allows adding credits to a game for service
testing without affecting the game's bookkeeping total.
1-7
I H ! l l l ! l ! l l l ! l ! l ! l l l ! l ~ ! l ! l ! l ! l ! l ~ ! l ~ l l l l l l ! l l l ! l ! l ! l l l ! l l l l l ! l l l ! l ! l ! l ! l ! l l l l l l l l ! l ! l l l l l ! l l l l l ! l l l l l l l l ~ ! l ~ ~ l ! l ! l l l l l l ~ l ! l ! H H l ~ ! I H l l l
WARNING
If you drop a fluorescent tube
and it breaks, it will implode!
Use care in handling.
