Ensure Correct Propeller Alignment
The propellers need to be mounted with the correct CW (Clock-Wise) and CCW (Counter-Clock-Wise)
configuration. Two propellers are marked with a white ring and two propellers have no markings. Mount
the propellers with the white ring to the motors with a white ring on top. Please follow the steps on the
following page to ensure all propellers are securely in place.

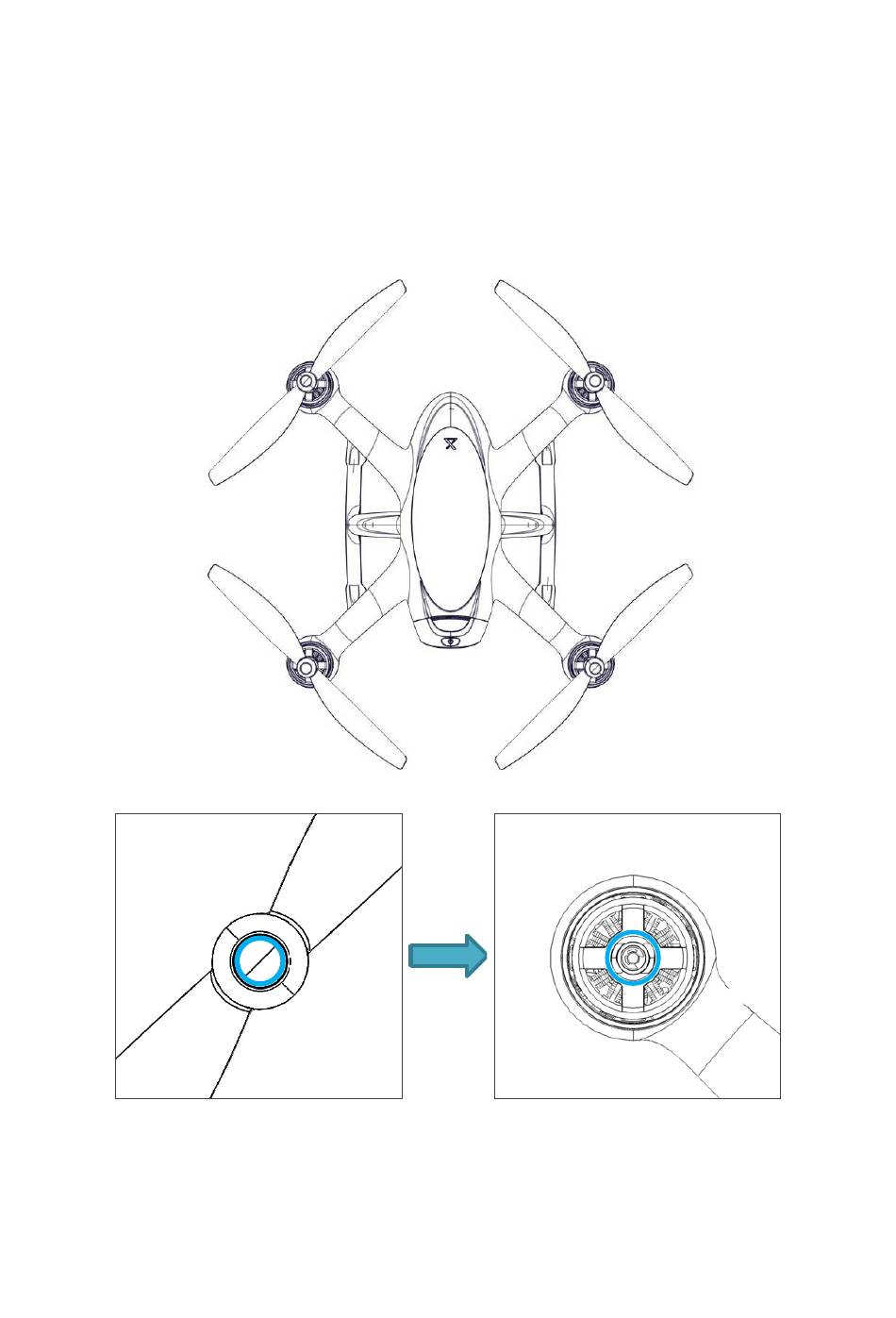

See diagram for attaching and detaching the propellers:
CW
CCW
◦ Ensure to match both CW props with white circle marking to motors with white circle mark-
ing.
◦ Ensure to match both CCW props with no circle marking to motors with no circle marking.
