Aircraft LED Indicators

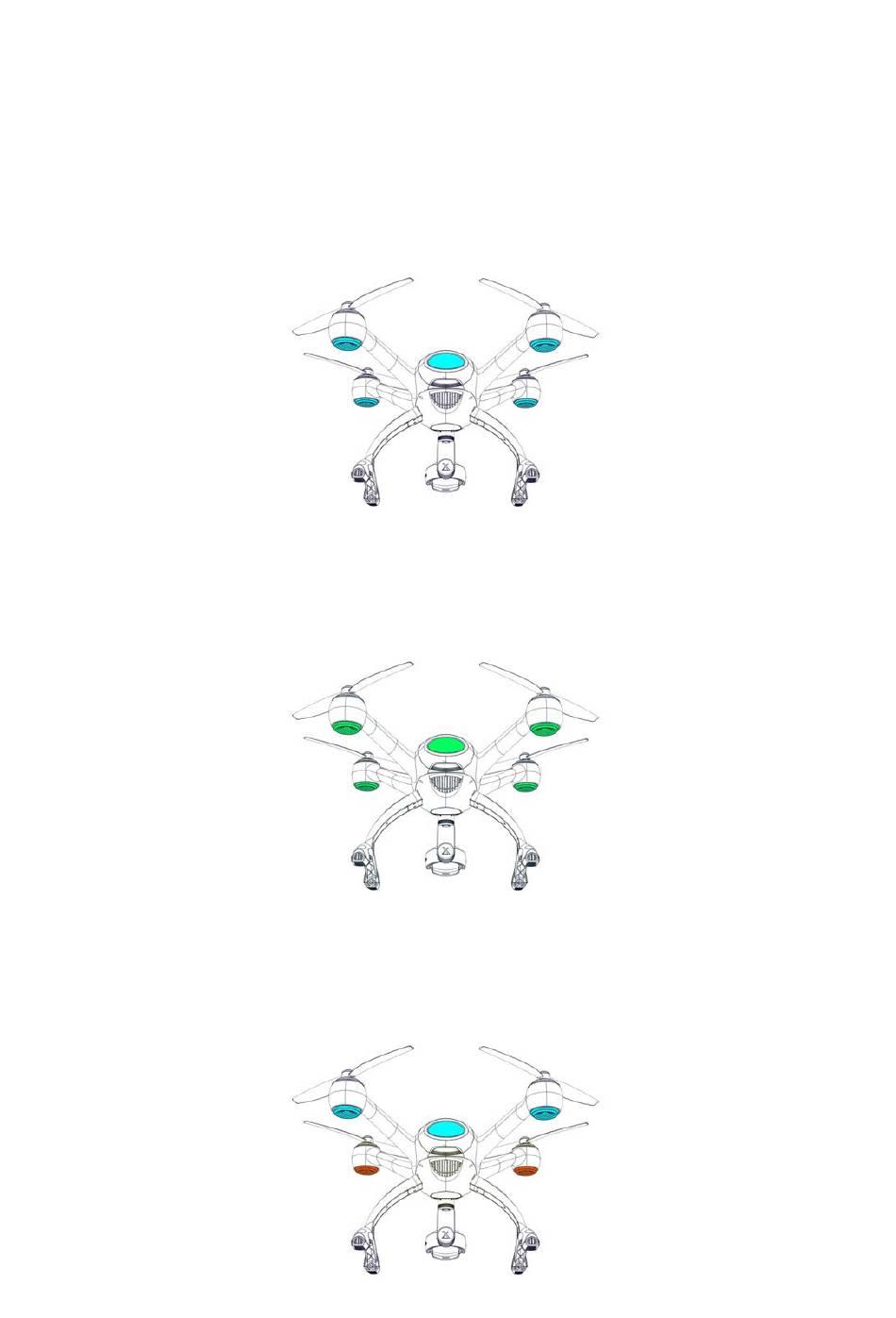

The aircraft LED indicators are located under each motor and at the rear of the drone. The LED
indicated the current state of the drone. See diagrams below for indications:
Ready for Flight (Free Mode)
(Solid Blue LED) – Ready for Smart Pilot App Launch
GPS Ready (Can be flown in GPS Mode)
(Solid Green LED) - Set's home position
Normal Flight Mode
(Red Front / Blue Rear Solid LED) - All systems functional
Evolve User Manual V1.0 by XDynamics Limited
31
