4K Camera Indicators

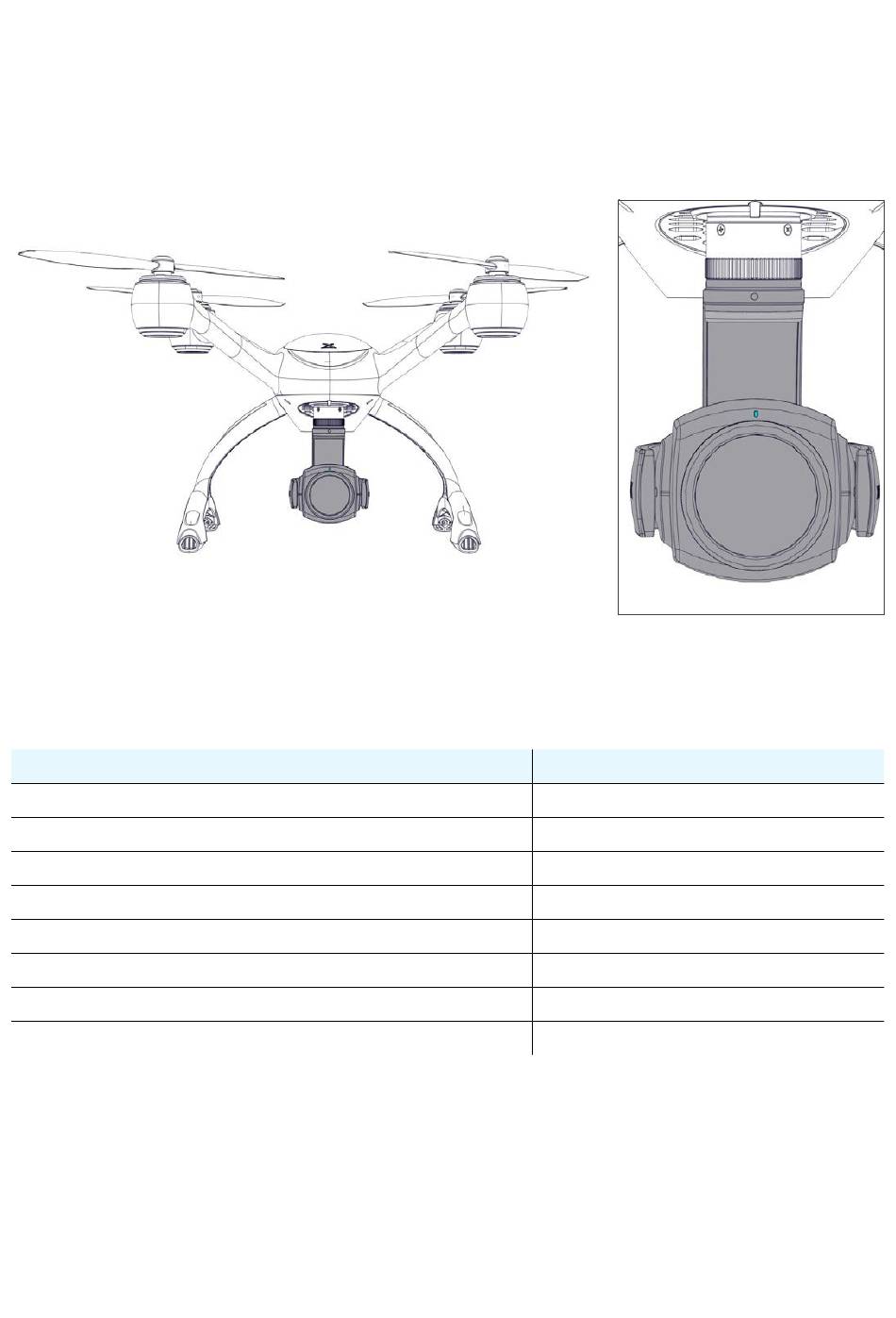

The camera gimbal has an LED indicator located below the base of the mount. This indicator states the
status of the camera. This is a visual reference for the operator to confirm the state of the camera such
as taking video or taking still photography.
LED Status
GREEN on
GREEN toggles once
GREEN toggles till shots complete (0.1" on every 0.3")
GREEN toggles gently (0.5" on every 1")
RED toggles rapidly (0.2" on every 0.4")
RED toggles gently (0.5" on every 1")
RED on
RED & GREEN toggles alternately
Evolve User Manual V1.0 by XDynamics Limited
Description
Normal, idle
Single shot
Burst
Video recording
System start up
SD card failure
High temp / SD Card Missing
Firmware upgrading
