Default Screen; Startup Menu; Operating Menu - heat-timer DiGi-SPAN Elite Series Installation And Operation Instructions Manual

HEAT-TIMER CORP.
V1.00 c 2006

Default Screen

SET
SYSTEM= 68 F
TARGET= 100/70 F
SET
SET

Operating Menu

SET
------MAIN------
SP1
SP2
<Settings>
SET
<Maintenance>
<Sys. Startup>
<Info>
<Back>
TSC V1.00
Temp.250 F
Heat-BreakOnRise
Independent
FAULT: Output On
Operating Menu Options (Click SET Button)
Set Point SP1, SP2
Options: Varies based on Sensor type. See "Sensor type Settings and terminals" on page 6
: MENU/SP1 , SP2
SET
• E ach of the Set Points (Target) is the temperature, pressure, vacuum, or relative humidity the TSC
will use to control the system by energizing the respective output relay. It will be displayed on the
default screen as
Target= SP1/SP2
Differential
Options: Varies based on Sensor type. See "Sensor type Settings and terminals" on page 6
: MENU/<Settings>/Diff.
SET
• T he differential controls how many degrees the system can fluctuate around any of the set points. It is used to prevent short cycling
of the unit being controlled.
• A smaller Differential setting will normally result in tighter control of the set point but will tend to increase the frequency of fluc-
tuation in the system. Larger Differential values will reduce output short cycling, but the system will be allowed to vary further
from the set point value
• D epending on the control mode of operation, the differential will be either added or subtracted from the set point.
DIGI-SPAN ELITE
TSC
SETUP COMPLETE!
PRESS SET
SENSOR FAULT:
Output On
Output Off
70 F
70 F
SET
.

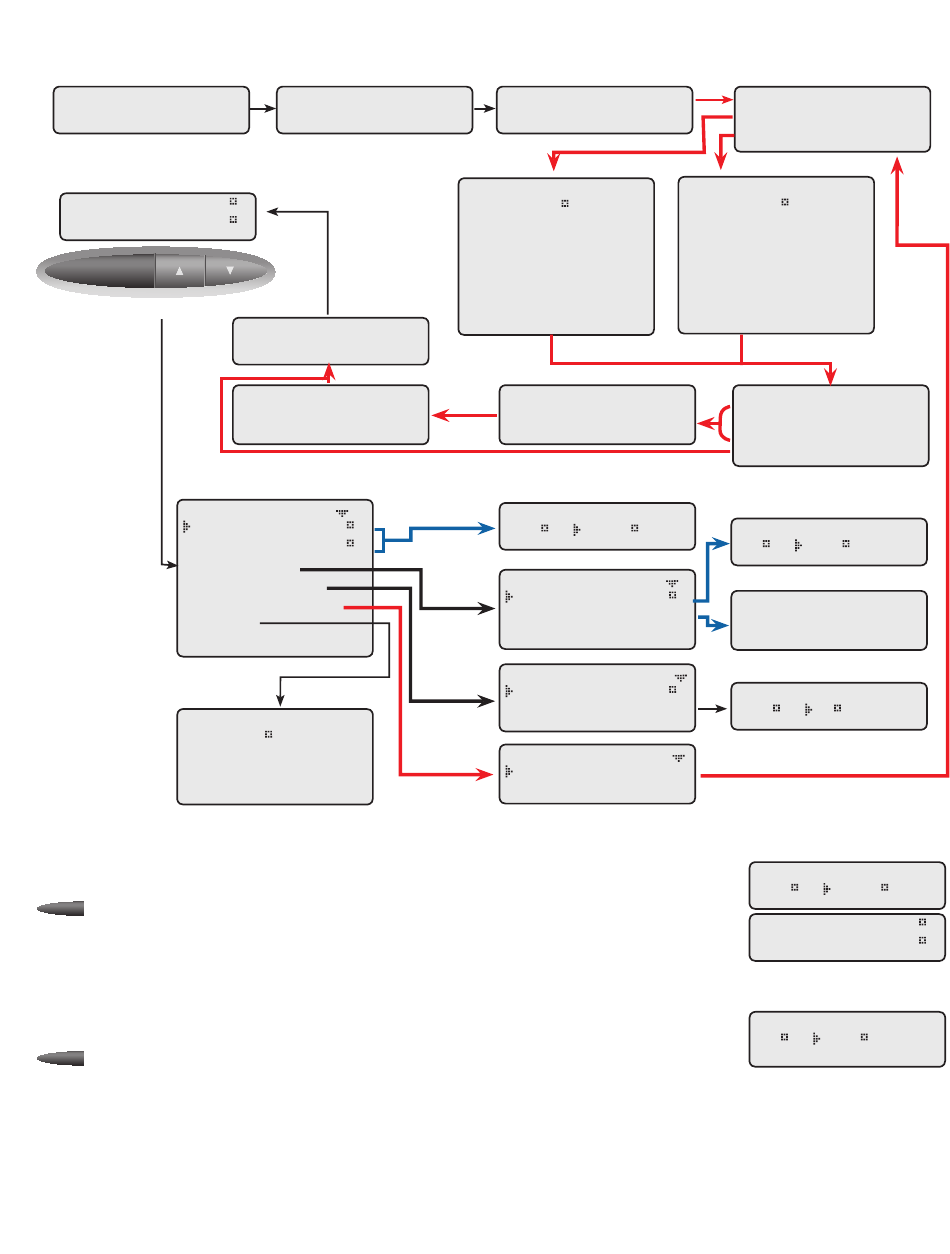

TSC Digi-Elite Operation Manual
