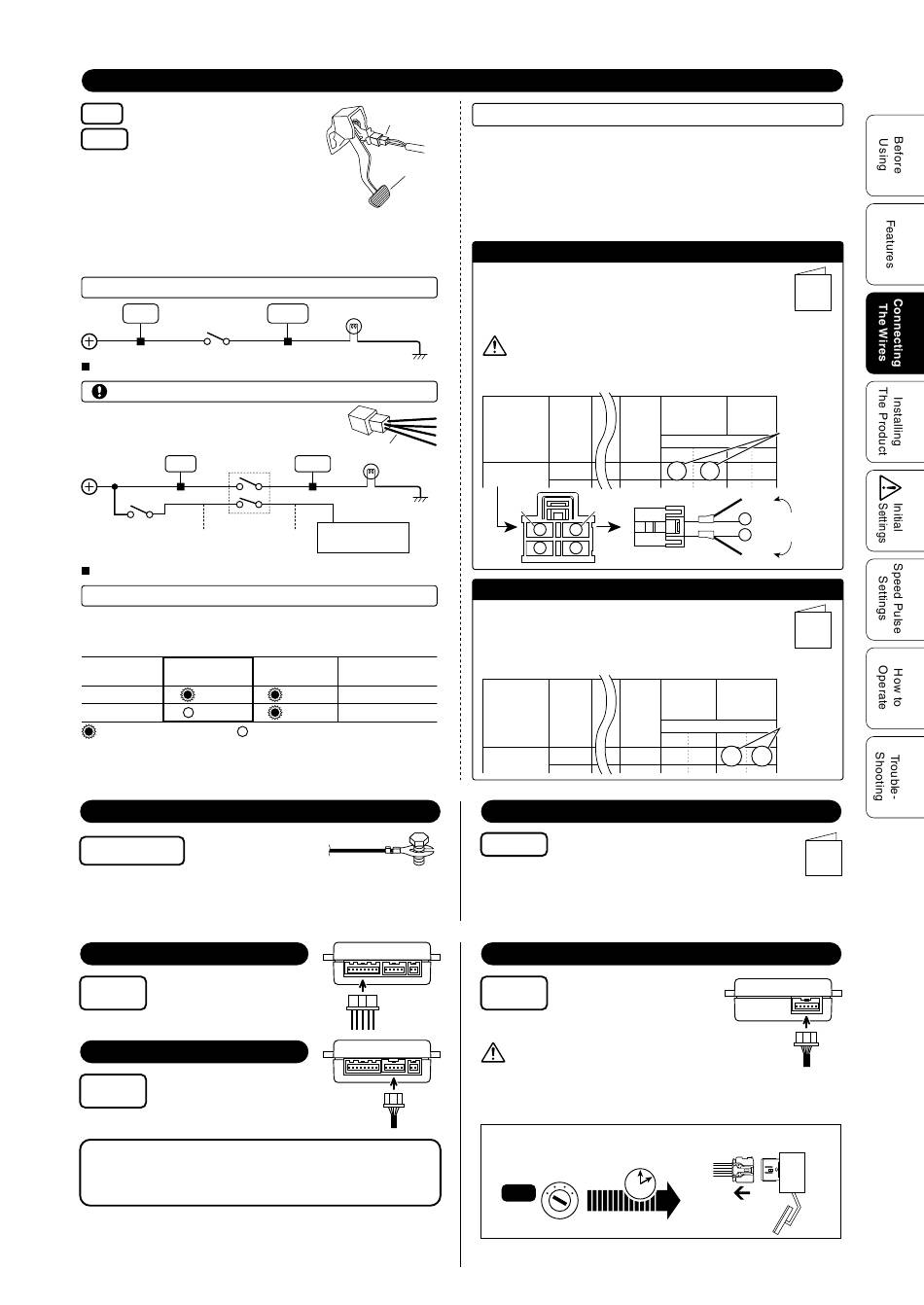

Pivot 3 drive BLP User Manual page 5

Brake Switch (Brake Power and Brake Switch Signal)
Red
To Brake Power (normal 12V)
Gray
To Brake Switch Signal
• There may be two or four(or more) wires
coming from the brake switch connec-
tor. Check the wiring position in the
"Wiring Char t" and af ter testing the
voltage, carry out the wiring.
• After having completed the wiring confirm that the brake lamp
is working properly.
For a Two-Wire Connector
Red
Brake
: Use Cut Connector Switch
For a Four(or more)-Wire Connector
When there are four(or more) wires, do not wire
to positions A and B as shown below.
for how to check the voltage for each wiring position)
Red
Brake
Ignition Switch
Switch
A
(12V with ignition
in the ON position)
: Use Cut Connector
How to Test (Refer to page 6, [How to use the Voltage Detector].)
1. Turn the ignition to the OFF. Please put gear into N (Neutral).
2. Check the terminal for each of the connections as designated in
the separate sheet "Wiring Chart" .
The Wire color Not Press Down
of the product on Brake Pedal
(12 )
Red
V
Gray (0 )
V
: Voltage Tester Lamp ON : OFF
Note: If there are four(or more) wires, do not wire the remaining
.
(OFF 0V)
Earth
Fasten to a screw of a
with earth
Black
metal par t which is
terminal
earthed.
Note: Painted screws and screws connected to plastic parts are
not ear thed; make sure to connect only to a place which is
earthed.
Power Cable
Connect to the side of
8-pin
the unit.
Connector
Controller
Connect to the side of
5-pin
the unit.
Connector
After inserting the connector, pull lightly to
make sure that it is securely locked.
Brake Switch
Connector
Brake
Pedal
Gray
Brake
Lamp
Earth
(See below
Four Wires
Gray
Brake
Lamp
Earth
IGN
B
Operation Signal
Press Down
on Brake Pedal
(12 )
V Brake Power
(12 )
V Brake Switch Signal
Select a Wiring Method
Select from either "Connect Directly" or "Connect using
Brake Harness" and carry out directions as stated.
1. After having tested voltage at the positions to be wired, connect as
directed.
2. In case of the car model which is blank of Wire Numbers or Brake
Harness Connection Color of "Wiring Chart" , please make sure to
carry out a voltage test and connect as directed.
Connect Directly
Connect the Red and Gray wires to the corresponding
wire numbers found in the "Wiring Char t" using Cut
connector which is included.
(Refer to page 6 [Reference 2] "How to use the Cut Connectors" )
N ote t hat t h e color s liste d in t h e char t und e r " Br ake
Harness Connection Color" are not the colors of the wires
on the car side.
e.g. TOYOTA 86 (from Apr. 2012)
TOYOTA
ブ レー キ
車 名 年 式 ハーネ ス
品番
BR-7
86 H24.4 〜
Gray Red
1 2
3 4
(BR-7) Switch Connector
Connect Using Brake Harness (sold separately)
Red and Gray
Connect the wires to the corresponding wire
colors found in the "Wiring Chart" .
(For more details , please refer to the brake harness manual.)
e.g.) TOYOTA 86 (from Apr. 2012)
TOYOTA
ブ レー キ
車 名 年 式 ハーネ ス
品番
BR-7
86 H24.4 〜
Car Speed Signal
Confirm the positions on the " Wiring
Orange
Chart" and then connect.
(⇒Refer to page 6 [Reference 2] "How to use the Cut
Connectors" )
Note: Connect only to the cables on the car side as directed.
(Do not wire the speed signal to the CAN-BUS adaptor.)
Special Model Specific Harness
Connect to the side of
6-pin
the unit.
Connector
Only disconnect the accelerator connector after
having waited at least 15 minutes from the time
that the ignition was turned to the OFF position.
Depending on the type of vehicle, if the connector is disconnected before the
ECU power is switched OFF the Check Engine Light may go on. (If the Light
comes on: Refer to page 12, "How to Turn Off the Check Engine Light" )
Passage of over
Turn the ignition
15 minutes
to the OFF
position.
OFF
Note: For details about connecting the Specialized Harness, please refer
to the user' s manual that came with that harness.
Wiring
Chart
ブレーキ
直接接続
ハーネス
接続番号
接続色
Connection
製品の コ ー ド色
Numbers
赤 灰 赤 灰
2 1
黄 青
Red
2
Wire leading
from product
1
Gray
Wiring
Chart
ブレーキ
直接接続
ハーネス
接続色
接続番号
製品の コ ー ド色
Connection
赤 灰 赤 灰
Colors
2 1 黄 青
Wiring
Chart
(sold separately)
Accelerator
Connector
Accelerator Accelerator Accelerator
Disconnect
the connector
5
