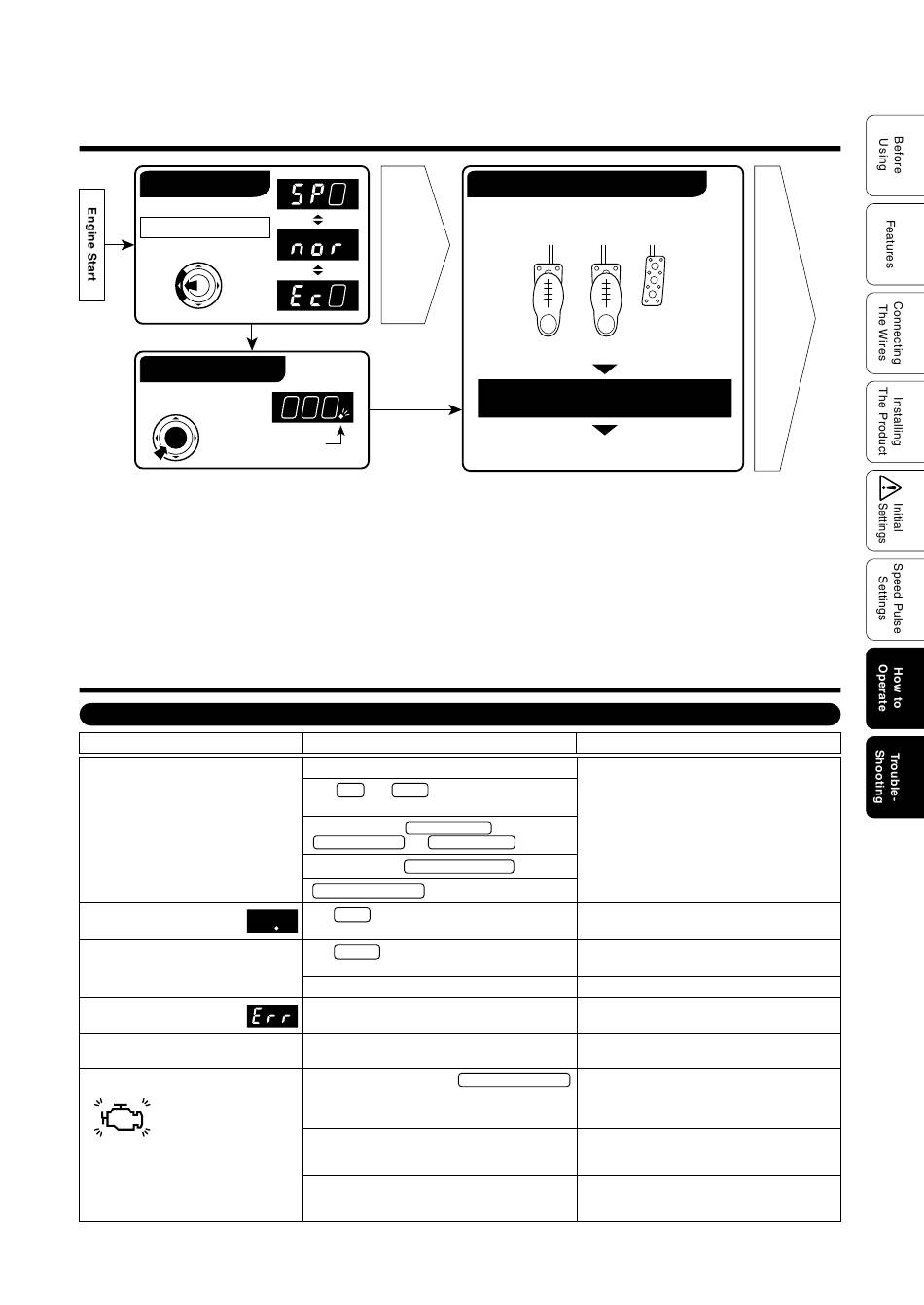

Basic Operation

Throttle Control
Switching the Mode
Press the MODE switch.
Auto-Blipping ON
Press the BLP Switch
Dot light on : ON
Dot light off : OFF

Troubleshooting

Concerning Basic Operations and Car Problems
Trouble
The ignition is set to the ON position but
the display of the Main Unit will not light
up.
OR the display goes OFF while in use.
With the ignition switched to
the ON, only the dot appears.
It will not go into " Initial Set tings" or
"Speed Pulse Settings".
While making "Initial Settings"
Err
an appears in the display.
nor
appears in the display and won't work.
A Check Engine Light has gone on.
Auto-Blipping function operate
Depress the clutch while stepping on the
brake with setting speed or above.
Page 10
Change gear and release the clutch
pedal, downshift completed.
Possible Causes
Brake fuse is burned out.
The RED and Black wire may have been improp-
erly wired or there is a poor connection.
Poor connection of 5-pin Connector ,
8-pin Connector and 6-pin Connector .
Poor connection of Specialized Harness .
Specialized Harness being used is incorrect.
The Black wire may have been improperly wired or
there is a poor connection.
The Orange wire may have been improperly wired
or there is a poor connection.
The car is being driven.
The "Initial Settings" have not been properly carried
out.
The "Initial Settings" have not been properly carried
out.
The accelerator connector or Specialized Harness
was disconnected with the ignition in the ON position
or within 15 minutes after having turned the ignition
to the OFF position.
The "Initial Settings" have not been properly carried
out.
The product was in a mode other than NORMAL
Mode when removed from a car and installed into a
different car.
Accel
Clutch Brake
Auto-Blipping function operate.
(The engine' s rpms increase.)
Possible Solutions
Please reconfirm whether wiring and connections
are correct or not.
Please reconfirm whether wiring and connections
are correct or not.
Please reconfirm whether wiring and connections
are correct or not.
Carry out after stopping the car.
Make the "Initial Settings" (See page 7 of this
manual).
Make the "Initial Settings" (See page 7 of this
manual).
Re-connect the disconnected connector and turn
off the Light (See page 12 of this manual).
Make the "Initial Settings" (See page 7 of this
manual) and turn off the Check Engine Light (See
page 12).
After returning it to NORMAL Mode, carry out the
"Initial Settings" (See page 7 of this manual) and
turn off the Check Engine Light (See page 12).
Page
8 to 9
11
