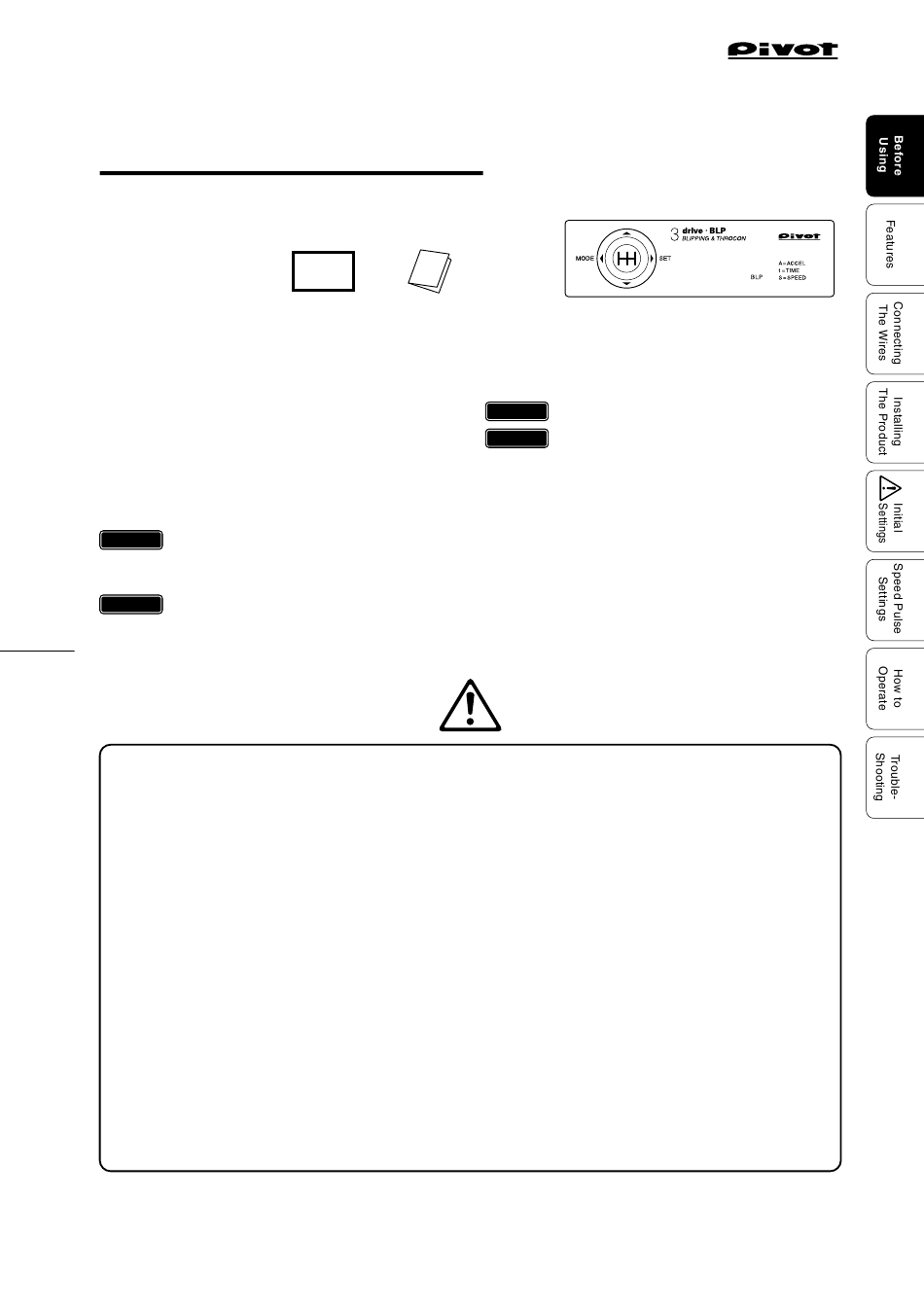

USER'S MANUAL
Thank you for purchasing PIVOT product.
Please read this manual carefully and keep it for future
reference.
If this product is given to another
user, make sure to include this
User's Manual.
Contents
Before Using ............................................................ 1
Product Features ................................................... 2 - 3
Features............................................................... 2
Contents ............................................................ 2
Part Names / Display Items .................................... 3
WARNING / CAUTION ............................................. 3
1
Clutch Signal ......................................................... 4
Brake Switch / Earth / Car Speed Signal
2
After installation, make sure to carry out "Initial Settings".
After having installed this product, make sure to make settings for your car's special characteristics by
carrying out the "Initial Settings" on Page 7. If the "Initial Settings" are not carried out, a Check Engine
Light may go on. Also, the unit will remain in NORMAL Mode even if the Mode is switched.
Worried about Installation?
If you are worried about carrying out wiring or other installation procedures please consult your dealer.
Only use 3-drive Specialized Harness.
Using another type of harness will cause troubles and failure; use only the 3-drive specialized harness.
Set to NORMAL Mode upon Removal of Product.
When uninstalling the product, make sure to return it to
Reconnecting this product in a different mode may cause the Check Engine Light to come on.
Modifying this Product is Forbidden.
Under no circumstances should modifications or changes be made to this product. Doing so may cause damage
not only to the product, but to the car and the operation of the car in which it is installed.
(
Product Number :
BLP
＋
Product
............... 5 - 6

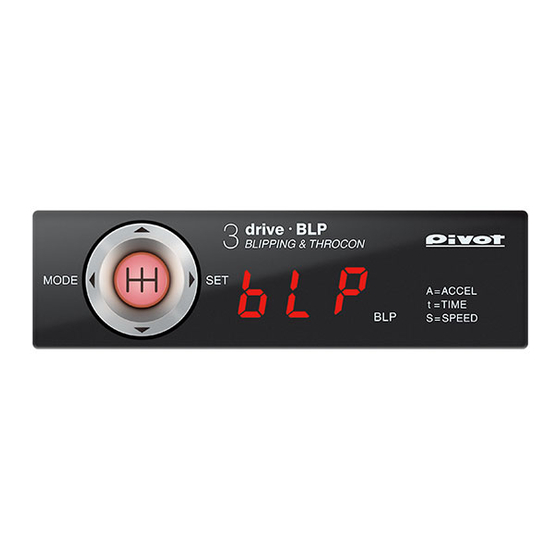

Throttle Controller with Built-in MT Auto-Blipping Function
)
3
drive・BLP
BLIPPING & THROCON
3
Initial Settings
(Degree of Acceleration Setting)
procedure
4
How to Operate...................................................... 8-10
Operating the Auto-Blipping ................................. 8-9
Auto-Blipping Test................................................... 9
Operating The Throttle Controller .............................. 10
Basic Operation ...................................................... 11
Troubleshooting ................................................ 11-12
nor
(NORMAL) Mode before carrying out any work.
(BLP As of November, 2016 No.7)
...... 7
1
Advertisement
Table of Contents
Related Manuals for Pivot 3 drive BLP
Summary of Contents for Pivot 3 drive BLP
-
Page 1: Table Of Contents
Throttle Controller with Built-in MT Auto-Blipping Function USER’S MANUAL Product Number : drive・BLP BLIPPING & THROCON Thank you for purchasing PIVOT product. Please read this manual carefully and keep it for future reference. If this product is given to another ＋... -
Page 2: Features
Features Throttle Controller with Built-in MT Auto-Blipping Function BLIPPING Auto-Blipping Auto-Blipping removes the need for the conven- Adjust to Most Suitable Blipping When using blipping to raise the tional “heel and toe” technique used to raise rpm with the accelerator engine’s rpms, it is possible to fine tune the settings for degree of while braking at the same time in an attempt to prevent slipping and acceleration, time length of operation and the speed at which... -
Page 3: Part Names / Display Items
• PIVOT Corporation accepts no re- • If the device is improperly installed • Please wipe with a soft dry cloth (a sponsibility, in any manner whatso- or settings have been improperly lens cloth). -
Page 4: Procedure 1 Connecting The Wires
Connecting The Wires procedure Basic Wiring When installing make sure to use the correct Specialized Harness for your car model. : Use Cut Connector (1.5m) Black Earth 6-pin Connector 8-pin Connector (1.5m) (See Note 1) (See Note 1) Brake Power (normal 12V) (1.5m) Gray... - Page 5 Brake Switch (Brake Power and Brake Switch Signal) Brake Switch To Brake Power (normal 12V) Select a Wiring Method Connector Gray Select from either “Connect Directly” or “Connect using To Brake Switch Signal Brake Harness” and carry out directions as stated. 1.
-
Page 6: Procedure 2 Installing The Product
[Reference 1] How to use the Voltage Detector (supplied with product) Loosen an earthed screw, insert In some car models, voltage Note: As an ear thing screw, only use a and fasten the wire tip (coiled wire). s c r ew t h at i s fa s te n e d to a m et a l p ar t . detector which is supplied Plastic part Plastic part... -
Page 7: Procedure 4 Speed Pulse Settings
Initial Settings (Degree of Acceleration Setting) procedure Make sure to carry out these settings. • This operation sets the car’s accelerator When installing for When installing into a characteristics into the controller unit. the first time different car • If the “Initial Settings” are not carried out, the unit will remain in NORMAL Mode even Initial Initial... -
Page 8: Operating The Auto-Blipping
For details about Pulse settings, see the “Wiring Speed Pulse Settings procedure Chart” . Turn the ignition to Press the UP / DOWN switches to select ENGINE the ON position. START the desired pulse setting. Press STOP (Engine not running) n o r W i t h o u t p r e s s •... -
Page 9: Auto-Blipping Test
When the engine starts, Auto-Blipping is OFF. Need to turn ON when it used. Engine Start. Change with each Back to normal display with no p r e s s i n g o f t h e operation for 3 seconds. Press BLP switch. -
Page 10: Operating The Throttle Controller
Operating the Throttle Controller Switching Response Levels Make settings for response in each Mode. Switch the Mode Adjust the Change Ratio for each Mode When making adjustments to the change ratios, begin at the lowest Engine Start. START setting and slowly make changes while continually checking acceleration. •... -
Page 11: Basic Operation
Basic Operation Throttle Control Auto-Blipping function operate Depress the clutch while stepping on the Switching the Mode brake with setting speed or above. Page 10 Press the MODE switch. Page Accel 8 to 9 Clutch Brake Auto-Blipping ON Auto-Blipping function operate. Press the BLP Switch (The engine’... - Page 12 • We plan in the near future to take all possible legal measures to protect against unfair competition from look-alike products using similar designs, regulating characteristics, circuitry and circuitry layout. • We strictly prohibit the unlicensed use of the PIVOT trademark and the unauthorized use of PIVOT User’s Manual. PIVOT CORPORATION...
