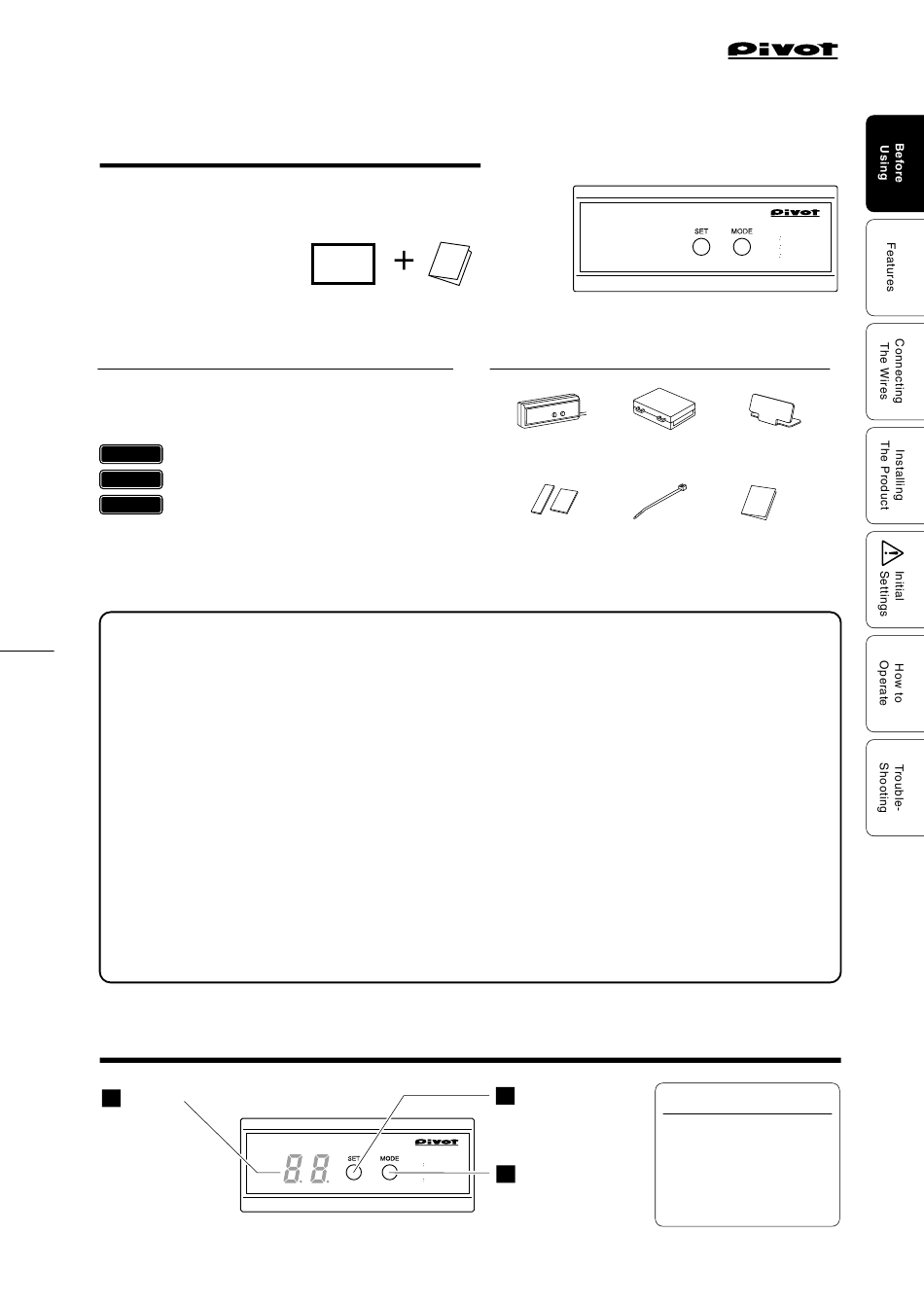

USER'S MANUAL
Thank you for purchasing PIVOT product.
Please read this manual carefully and keep it for future reference.
If this product is given to another
user, make sure to include this
User's Manual.
Contents
Before Using / Contents ............................................. 1
Part Names ............................................................ 1
Features.................................................................. 2
Connecting The Wires .............................. 3
1
Installing The Product .............................. 3
2
procedure
3
Initial Settings
(Degree of Acceleration Setting)
procedure
How to Operate......................................................... 5
Display Items............................................................ 6
Troubleshooting ...................................................... 7
After installation, make sure to carry out "Initial Settings" .
After having installed this product, make sure to make settings for your car's special characteristics by carrying out the
"Initial Settings" on Page 4. If the "Initial Settings" are not carried out, a Check Engine Light may go on. Also, the unit
will remain in NORMAL Mode even if the Mode is switched.
Worried about Installation?
If you are worried about carrying out wiring or other installation procedures please consult your dealer.
Only use 3-drive Specialized Harness.
Using another type of harness will cause troubles and failure; use only the 3-drive specialized harness.
Only use with Manufacturer' s Original ECU.
Do not install this product if the ECU is not the original one or when a sub-ECU from other companies is being used.
Set to NORMAL Mode upon Removal of Product.
When uninstalling the product, make sure to return it to NORMAL Mode before carrying out any work. Reconnecting this
product in a different mode may cause the Check Engine Light to come on.
Modifying this Product is Forbidden.
Under no circumstances should modifications or changes be made to this product. Doing so may cause damage not only to the
product, but to the car and the operation of the car in which it is installed.
Part Names
1
Display
• Mode Display
• Degree of
3-drive
Acceleration Display
(5-100%)
• Display Each Settings
(
Product Number :
3DP
Product
...... 4
PRO
P
POWER
r
RESPONSE
E
ECO
)
3
3-drive
PRO
Please check the contents of the package
Controller
[65×26×13.5(D) mm]
[
50× 22 ×70 (D) mm
Double-sided Tapes
Zip Ties
(Large) × 2
[45 ×14mm] × 2
(Small) × 2
[25 ×35mm] × 1
2
SET Switch
• For Adjusting the Change
Ratio for each Mode
• Initial Settings
3
MODE Switch
• Switching Modes
(3DP As of July, 2018 No.2)
Throttle Controller
PRO
drive
-
P
POWER
r
RESPONSE
E
ECO
Unit
L-shaped Fastener
]
User's Manual
(This Book)
Turning off the Display
Note: This product is interlocked
with the ECU (engine computer)
power. Depending on the model of
car, the display may remain on for
up to 15 minutes even after the
ignition has been turned off; this is
normal.
1
Advertisement
Table of Contents
Related Manuals for Pivot 3-drive PRO
Summary of Contents for Pivot 3-drive PRO
-
Page 1: Table Of Contents
(3DP As of July, 2018 No.2) Throttle Controller drive USER’S MANUAL Product Number : Thank you for purchasing PIVOT product. Please read this manual carefully and keep it for future reference. 3-drive POWER RESPONSE If this product is given to another... -
Page 2: Features
Features No OBD Connection Necessary! Low-Profile Controller provides Genuine-Style Installation Compatible with Collision Mitigation System and Euro Car Easy Connection to Accelerator Connector High Precision Accelerator Opening Monitor Simplified wiring prevents signal malfunctions caused by The highly precise monitoring displays accelerator decreased voltage due to low-current circuitry. -
Page 3: Connecting The Wires
Connecting The Wires procedure Basic Wiring When installing make sure to use the correct Specialized Harness for your car model. 6-pin Connector (See Note) (0.5m) Accelerator Unit (1.5m) 5-pin Connector Controller Specialized Harness (See Note) (sold separately) Accelerator Connector Note: After inserting the connector, pull lightly to make sure that it is securely locked. Controller Specialized Harness (sold separately) - Page 4 Initial Settings ( Degree of Acceleration Setting ) procedure Make sure to carry out these settings. • This operation sets the car’s accelerator When installing for When installing into a characteristics into the controller unit. the first time different car •...
-
Page 5: How To Operate
How to Operate Switch the Mode The Mode will change with each pressing of the MODE switch. NORMAL Mode ECO Mode RESPONSE Mode POWER Mode Switch the Change Ratio ECO Mode is displayed Change with each pressing of the SET switch. Smallest Greatest Change Ratio... -
Page 6: Display Items
Displays the amount of pressure placed on the accelerator pedal. Degree of Acceleration Monitor (output signal) [5–100%, 1% unit .] • Degree of Acceleration Monitor shows the rate of acceleration output to the ECU Degree of 3-drive where 0 represents the pedal not being pressed in and 100 equals when the Acceleration (output) pedal is fully pressed down. -
Page 7: Troubleshooting
Troubleshooting Concerning Basic Operations and Car Problems Trouble Possible Causes Possible Solutions The ignition is set to the ON position but Please reconfirm whether wiring and connections Poor connection of 5-pin Connector and the display of the Main Unit will not light are correct or not. - Page 8 • We plan in the near future to take all possible legal measures to protect against unfair competition from look-alike products using similar designs, regulating characteristics, circuitry and circuitry layout. • We strictly prohibit the unlicensed use of the PIVOT trademark and the unauthorized use of PIVOT User’s Manual. PIVOT CORPORATION...
