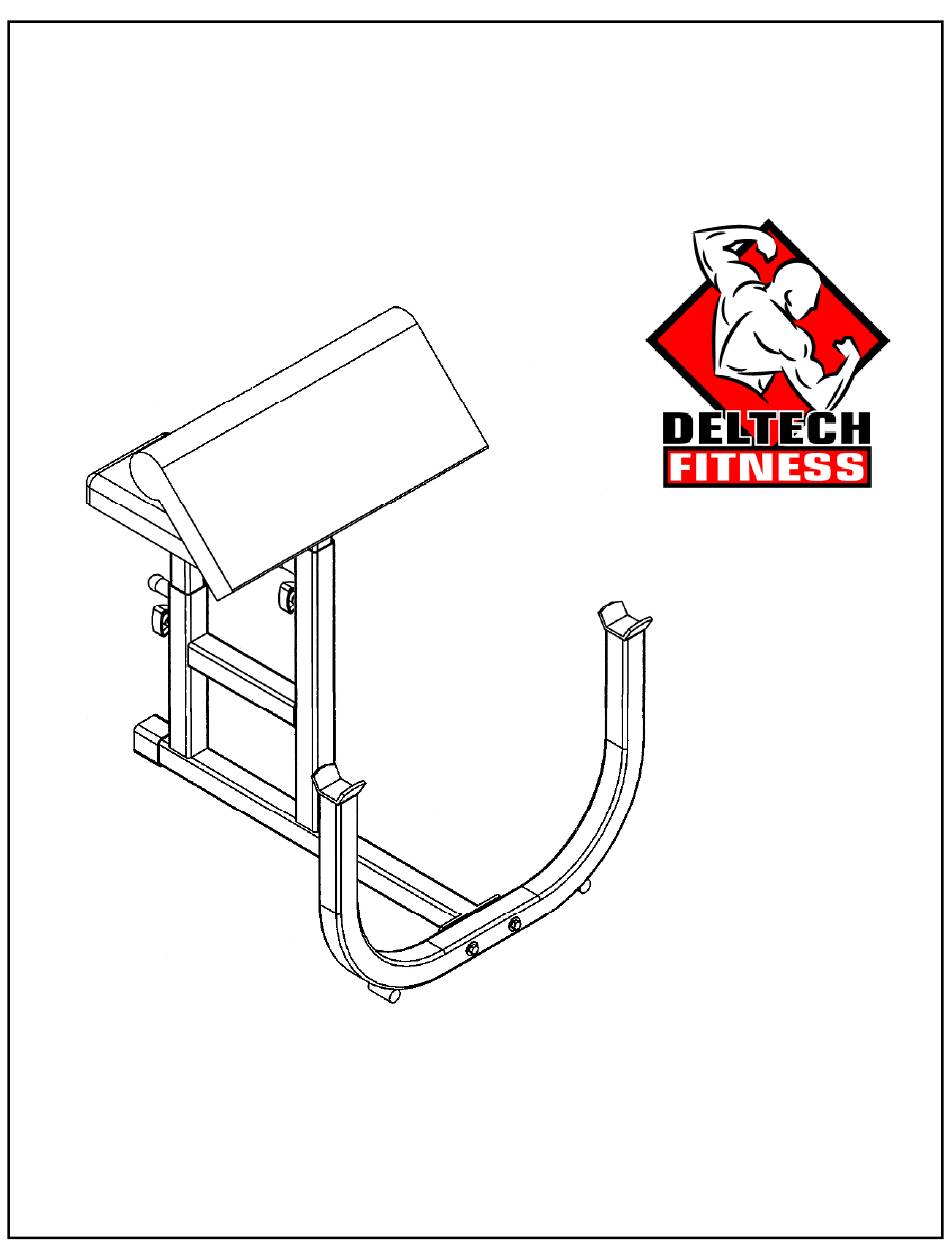

- Page 1 DF3000 PREACHER CURL BENCH Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 2 QTY 1 QTY 1 DF3000 DF3000 INSTRUCTIONS HARDWARE ARMREST PAD ARM SUPPORT QTY 1 QTY 1 QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 3 QTY 2 QTY 1 QTY 2 QTY 6 M12 LOCKNUT M10 WASHER M12 WASHER QTY 2 QTY 6 QTY 4 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 4 INSTALL ARMREST PAD (F) TO ARM SUPPORT (E)USING M10 x 25 MM BOLTS (J) AND M10 WASHERS (L). ARMREST ASSEMBLY TOOLS REQUIRED: WRENCHES OR METRIC SOCKET SET INSTALL SEAT PAD (D) TO SEAT SUPPORT (C) USING M10 x 25 MM BOLTS (J) AND M10 WASHERS (L).
- Page 5 FRAME ASSEMBLY ASSEMBLE THE SEAT FRAME (B) TO THE WEIGHT COLUMN (A) USING THE M12 x 70MM BOLTS (I), M12 WASHERS (K) AND M12 LOCKNUTS (M). THEN INSTALL THE 2” RUBBER BOOT (H). INSERT THE SEAT AND ARM PAD ASSEMBLY INTO THE SEAT FRAME (B) AND ADJUST PULL -PINS UNTIL THEY LOCK INTO PLACE.
- Page 6 SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
