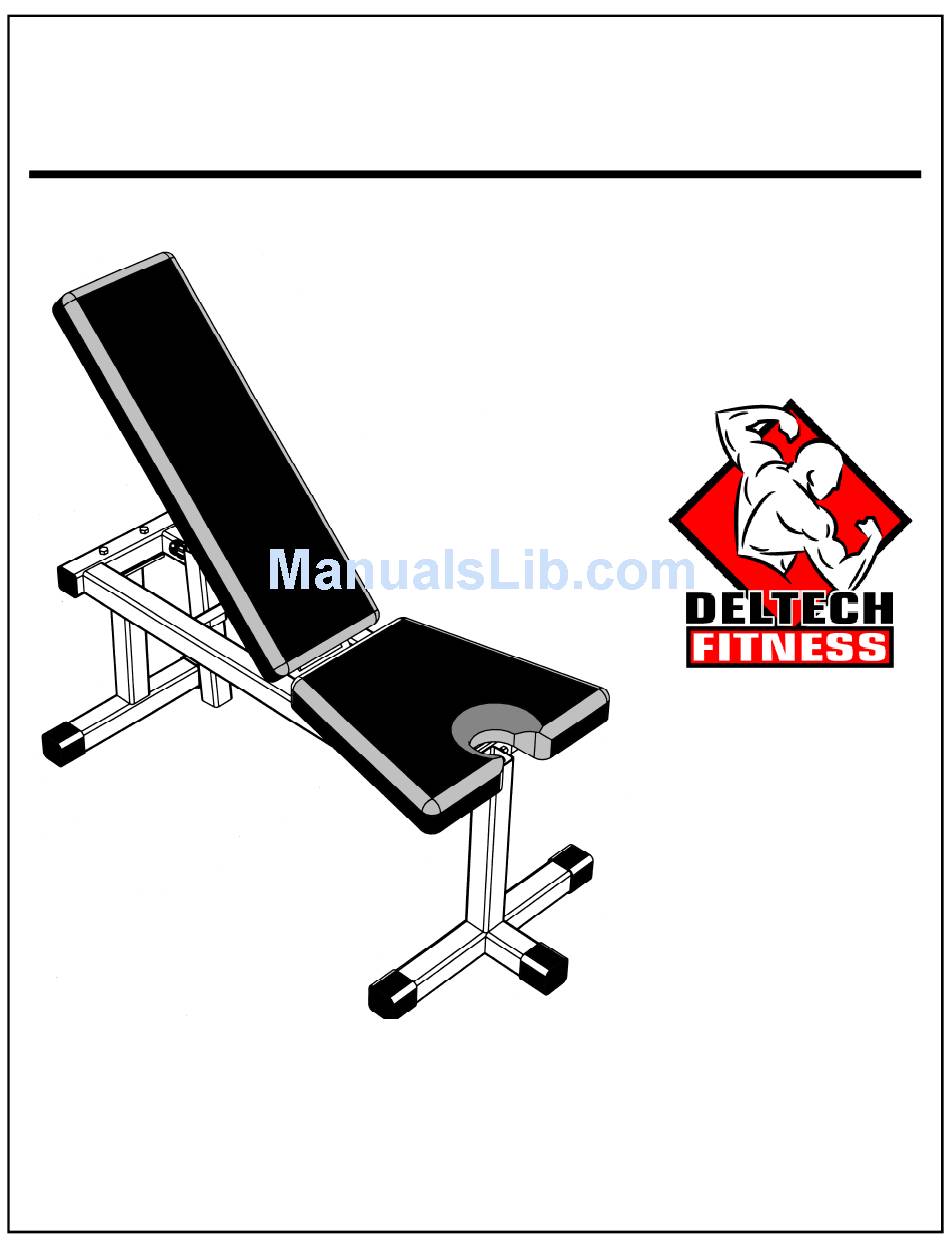

ASSEMBLY INSTRUCTIONS FOR THE
DF102 FLAT TO INCLINE BENCH
DEAR CUSTOMER:
YOU HAVE PURCHASED A HEAVY DUTY DELTECH FITNESS BENCH. THIS
BENCH HAS BEEN DESIGNED FOR A WIDE VARIETY OF BARBELL AND
DUMBELL EXERCISES. THIS BENCH CAN ALSO ACCEPT DELTECH FITNESS
PREACHER CURL ATTACHMENT DF105, LEG CURL LEG EXTENSION DF106,
AND LAT ATTACHMENT DF1200. IT IS ALSO PERFECT FOR USE WITH
DELTECH FITNESS POWER RACK AND SMITH MACHINE.
700 LB WEIGHT CAPACITY -
WEIGHTS AND USER
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533
Advertisement
Table of Contents
Related Manuals for Deltech Fitness DF102
Summary of Contents for Deltech Fitness DF102
- Page 1 DELTECH FITNESS POWER RACK AND SMITH MACHINE. 700 LB WEIGHT CAPACITY - WEIGHTS AND USER (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 2: Box Contents
BACKREST SEAT QTY 1 INSTRUCTIONS QTY 1 QTY 1 QTY 1 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... -
Page 3: Seat Support
M10 x 75MM M8 x 25MM M10 WASHER BOLT BOLT QTY 5 QTY 8 QTY 5 QTY 4 M8 WASHER QTY 4 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... - Page 4 BACK & SEAT ASSEMBLY TOOLS REQUIRED: METRIC WRENCHES OR SOCKET SET ATTACH THE BACKREST (E) TO THE BODY (B)USING THE M8 x 25MM BOLTS (L) AND WASHERS (O). ATTACH THE SEAT (C) TO THE BODY (B) USING THE M8 x 25MM BOLTS (L) AND WASHERS (O).
-
Page 5: Frame Assembly
FRAME ASSEMBLY ATTACH THE INCLINE TUBE (F) TO THE BODY USING THE M10 x 75MM BOLT (K), M10 WASHERS (N), AND THE M10 LOCKNUT (M). NOTE* (BACKREST SHOULD RAISE AND LOWER FREELY. OVER TIGHTENING MAY CAUSE BINDING.) NOW INSTALL THE KNOB (I) INTO THE INCLINE TUBE ON THE BODY AND INSERT THE SQUARE CAPS (H). - Page 6 FRAME ASSEMBLY INSERT THE SQUARE CAPS (H) INTO THE ENDS OF THE BODY. INSERT THE SEAT SUPPORT PIN (J) INTO THE SEAT FRAME AND ADJUST AS NECESSARY...
- Page 7 FRAME ASSEMBLY BOLT THE REAR LEG (D) TO THE BODY USING THE M10 x 75MM BOLTS (K), THE M10 WASHERS (N) AND M10 LOCKNUTS (M). BOLT THE FRONT LEG (A) TO THE BODY USING THE M10 x 75MM BOLTS (K), THE M10 WASHERS (N) AND M10 LOCKNUTS (M).
- Page 8 ACCESSORIES DF106 Add leg extension and leg curls to your bench with this leg attachment. Get more information at www.fitnessdestination.com DF105 Add preacher curls to your bench with this preacher curl attachment. Get more information at www.fitnessdestination.com DF1200 Add lat pulls to your bench with this lat attachment.
-
Page 9: Safety Notice
SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU. - Page 10 T-SHIRT ORDER FORM DELTECH FITNESS T - SHIRT SIZES AVAILABLE ARE M-XXL. THE COLOR OF THE SHIRTS ARE WHITE. RED AND BLACK LOGO. ONLY $12.99 DELTECH FITNESS MUSCLE SHIRT SIZES AVAILABLE M-XXL THE COLOR AVAILABLE IS BLACK. RED AND WHITE LOGO.
