Deltech Fitness DF6000 Assembly Instructions Manual

Hide thumbs

Advertisement

Table of Contents

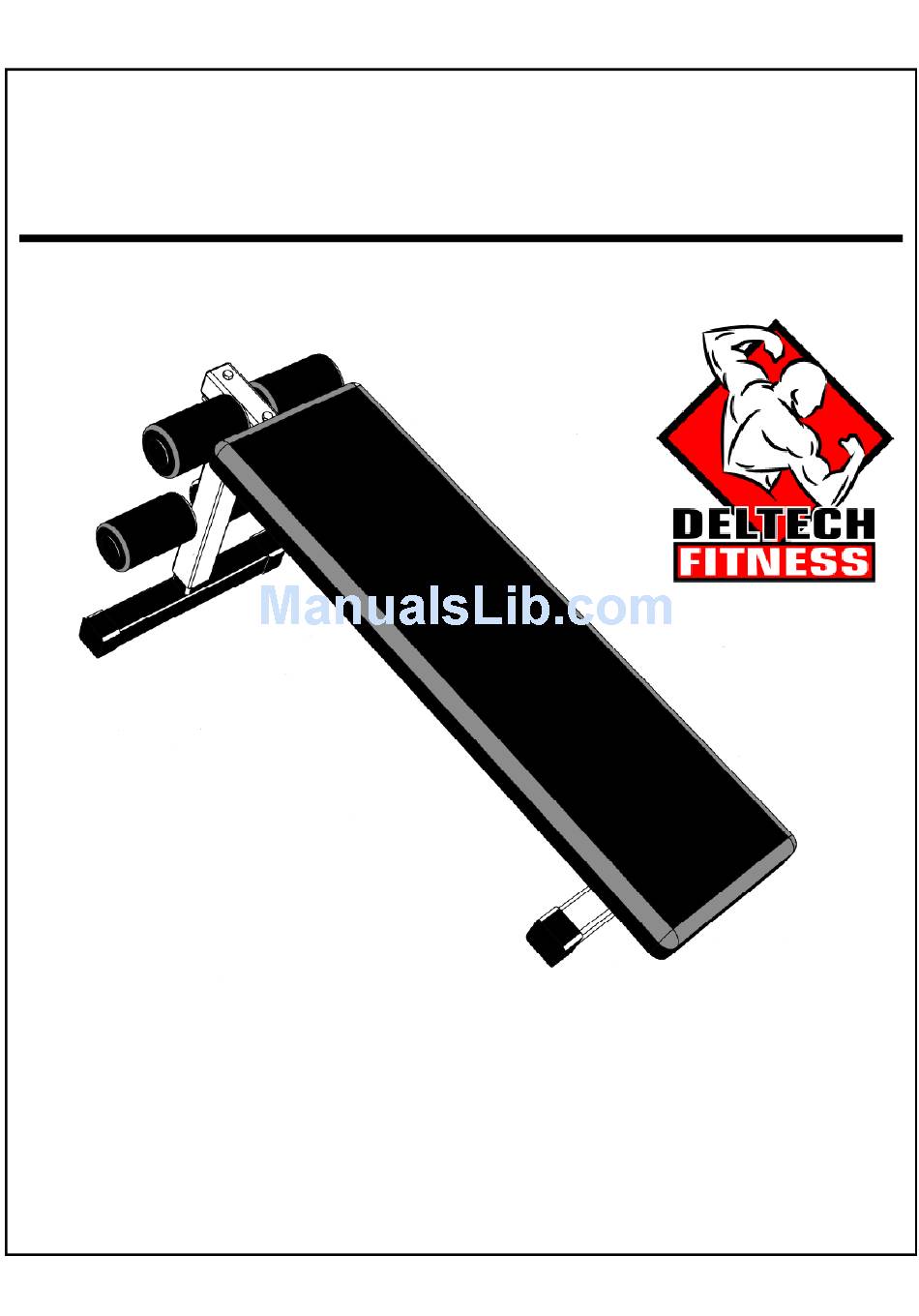

ASSEMBLY INSTRUCTIONS FOR
THE DF6000 ABDOMINAL BENCH
650 LB CAPACITY
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Deltech Fitness DF6000

Summary of Contents for Deltech Fitness DF6000

  • Page 1 ASSEMBLY INSTRUCTIONS FOR THE DF6000 ABDOMINAL BENCH 650 LB CAPACITY (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 2: Box Contents

    BACKREST LEG TUBE BODY QTY 1 QTY 1 QTY 1 DF6000 DF6000 INSTRUCTION HARDWARE PACK SHEET QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 M10 LOCKNUT M10 WASHER M10 x 70MM BOLT M10 x 25MM BOLT QTY 4 QTY 8 QTY 4 QTY 6 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 4 FRONT LEG ASSEMBLY TOOLS REQUIRED: WRENCHES OR METRIC SOCKET SET SCREW THE PULL-PIN (H) INTO THE LEG GUIDE (B). NEXT SLIDE THE LEG (C) INTO THE LEG GUIDE (B). INSTALL THE LEG PADS (D) ONTO THE LEG GUIDE (B) AND SECURE THEM WITH THE MUSHROOM CAPS (K).
  • Page 5 MAIN ASSEMBLY (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) ATTACH THE FRONT LEG ASSEMBLY TO THE BODY (E) USING THE M10 x 70MM BOLTS (L), THE M10 WASHERS (N), AND THE M10 LOCK NUTS (0). ATTACH THE REAR FOOT (A) TO THE BODY (E) USING THE M10 x 70MM BOLTS (L), THE M10 WASHERS (N), AND THE M10 LOCK NUTS (0).
  • Page 6 ADJUSTMENT RAISE AND LOWER THE BENCH BY TURNING THE PULL PIN AND PULLING IT OUT TO ADJUST UP OR DOWN. WHEN ADJUSTED MAKE SURE THE PULL PIN IS SECURE IN ADJUSTMENT HOLE THEN TURN TO TIGHTEN. (NOTE: YOU MUST LOOSEN THE PULL PIN OR THE BENCH WILL NOT ADJUST) SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT.
  • Page 7 T-SHIRT ORDER FORM DELTECH FITNESS T - SHIRT SIZES AVAILABLE ARE M-XXL. THE COLOR OF THE SHIRTS ARE WHITE. RED AND BLACK LOGO. ONLY $12.99 DELTECH FITNESS MUSCLE SHIRT SIZES AVAILABLE M-XXL THE COLOR AVAILABLE IS BLACK. RED AND WHITE LOGO.
