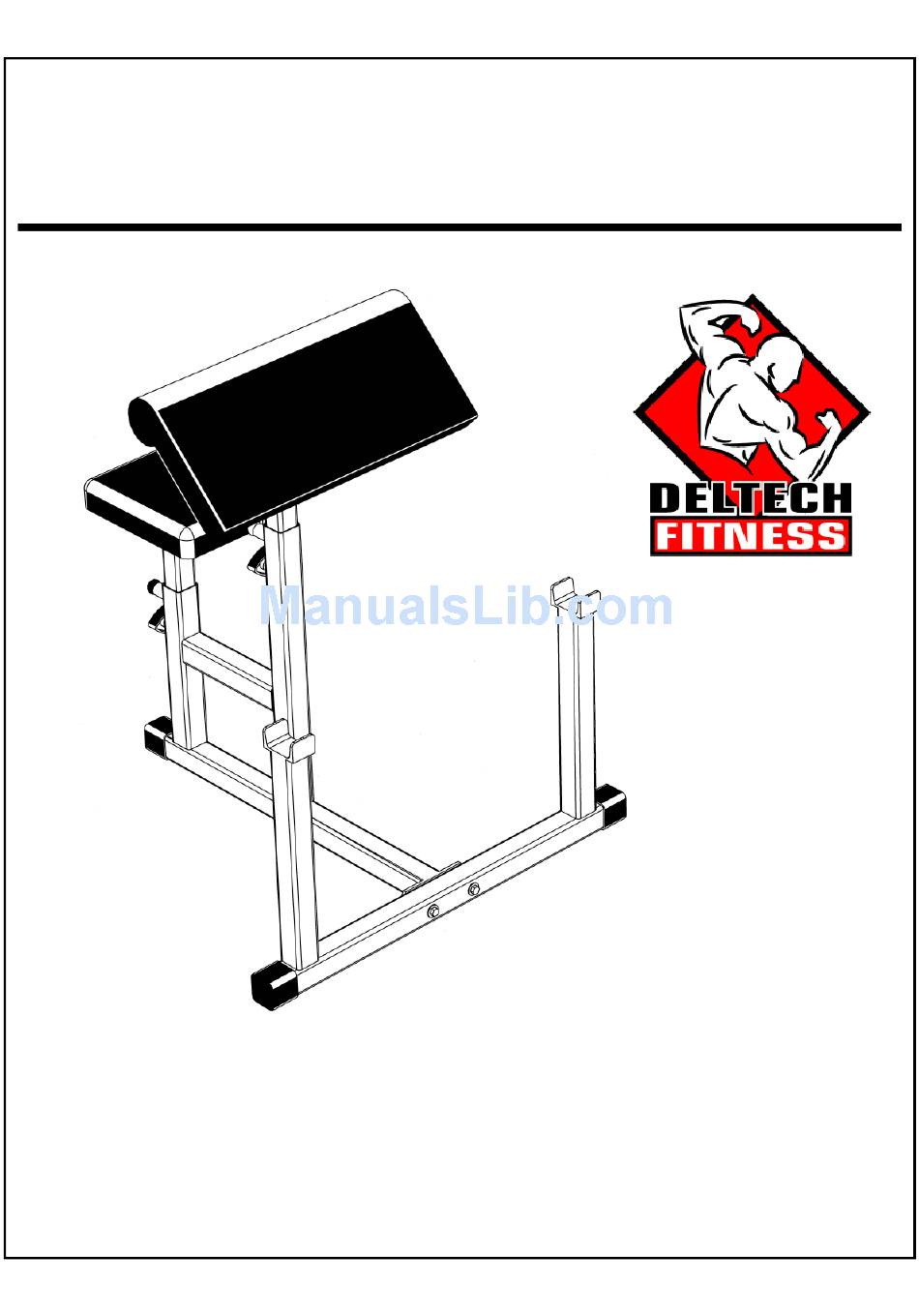

ASSEMBLY INSTRUCTIONS FOR THE
DF306 PREACHER CURL BENCH
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF306 and is the answer not in the manual?

Questions and answers

Related Manuals for Deltech Fitness DF306

Summary of Contents for Deltech Fitness DF306

  • Page 1 ASSEMBLY INSTRUCTIONS FOR THE DF306 PREACHER CURL BENCH (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 2: Box Contents

    QTY 1 QTY 1 DF306 DF306 INSTRUCTIONS HARDWARE ARMREST PAD ARM SUPPORT QTY 1 QTY 1 QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 HARDWARE TURN KNOB RUBBER SHOE M12 x 70MM BOLT M10 x 25MM BOLT QTY 2 QTY 3 QTY 2 QTY 6 12MM LOCKNUT 10MM WASHER 12MM WASHER QTY 2 QTY 6 QTY 4...

  • Page 4: Tools Required

    INSTALL ARMREST PAD (F) TO ARM SUPPORT (E)USING M10 x 25 MM BOLTS (J) AND 10 MM WASHERS (L). ARMREST ASSEMBLY TOOLS REQUIRED: WRENCHES OR METRIC SOCKET SET INSTALL SEAT PAD (D) TO SEAT SUPPORT (C) USING M10 x 25 MM BOLTS (J) AND 10 MM WASHERS (L).
  • Page 5 ARMREST ASSEMBLY SEAT ASSEMBLY (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC) INSERT.) ASSEMBLE THE SEAT FRAME (B) TO THE WEIGHT COLUMN (A) USING THE M12 x 70MM BOLTS (I), 12 MM WASHERS (K) AND 12 MM LOCKNUTS (M).
  • Page 6 EXERCISES BAR CURL DUMBBELL CURL DUMBBELL PRESS HYPEREXTENSION...

  • Page 7: Safety Notice

    SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE RISK OF INJURY CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
  • Page 8 T-SHIRT ORDER FORM DELTECH FITNESS T - SHIRT SIZES AVAILABLE ARE M-XXL. THE COLOR OF THE SHIRTS ARE WHITE. RED AND BLACK LOGO. ONLY $12.99 DELTECH FITNESS MUSCLE SHIRT SIZES AVAILABLE M-XXL THE COLOR AVAILABLE IS BLACK. RED AND WHITE LOGO.
