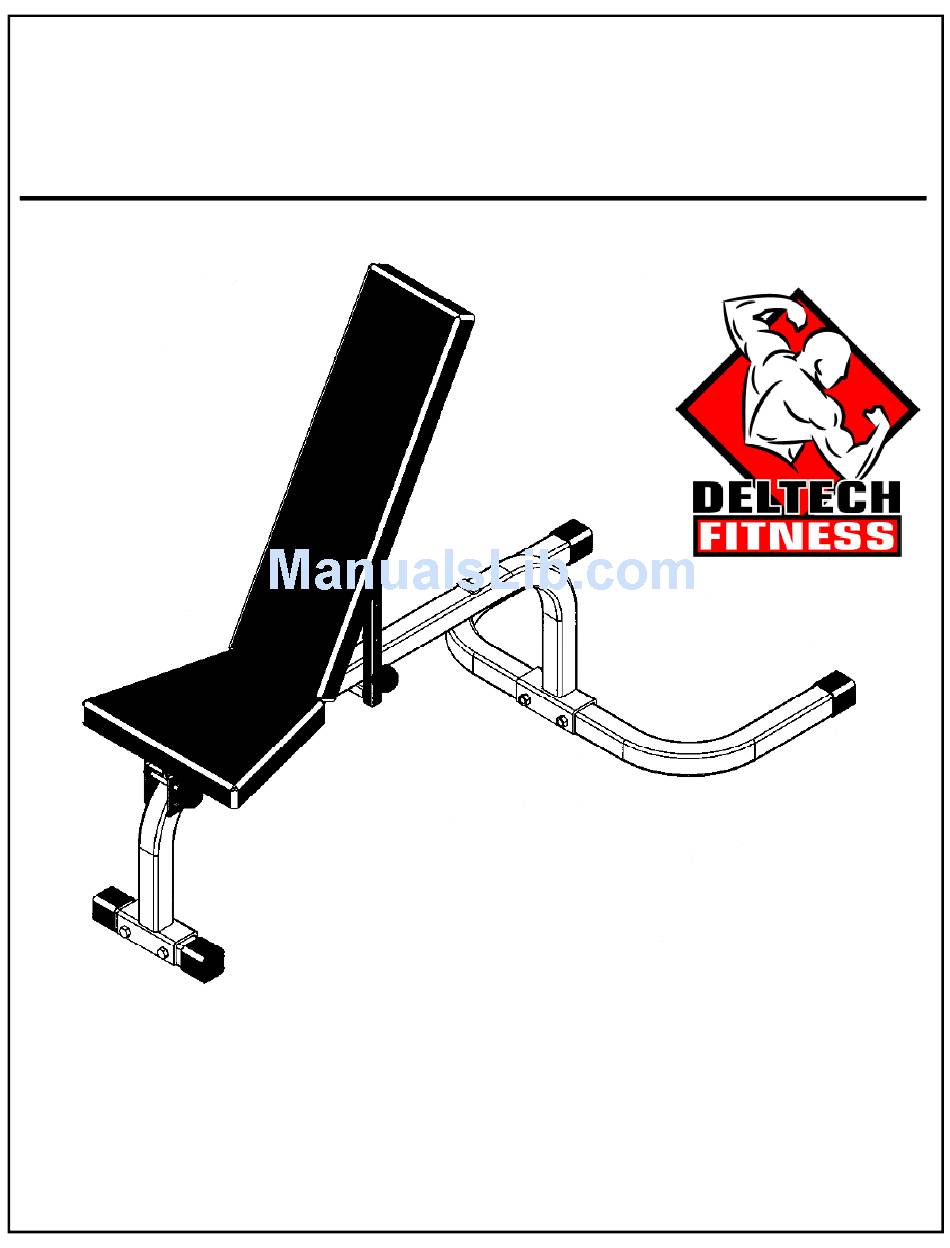

- Page 1 ASSEMBLY INSTRUCTIONS FOR THE DF9000 FLAT / INCLINE BENCH (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 2: Box Contents
QTY 1 QTY 1 QTY 1 QTY 1 REAR FOOT FRONT FOOT SEAT FRAME QTY 1 QTY 1 QTY 1 QTY 1 DF9000 DF9000 INSTRUCTION HARDWARE PACK SHEET QTY 1 QTY 1 IF YOU ARE MISSING PARTS PLEASE CALL 1-888-258-0533... - Page 3 QTY 10 QTY 4 M12 LOCKNUT M10 LOCKNUT QTY 2 QTY 5 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 4 SEAT & BACKREST ASSEMBLY NOTE: THE SEAM GOES TO THE BOTTOM SIDE TOOLS REQUIRED: WRENCHES OR METRIC SOCKET SET USING M10 x 25MM BOLTS (M), AND M10 WASHERS (P), ASSEMBLE THE BACKREST SUPPORT (C) TO THE BACKREST (A) AND THE SEAT SUPPORT (B) TO THE SEAT (E).
- Page 5 FRAME ASSEMBLY BOLT THE FRONT FOOT (H) AND BACK FOOT (G) TO THE FRAME (F) USING THE M10 x 76MM BOLTS (L), M10 WASHERS (P), AND M10 LOCK NUTS (R). NEXT SLIDE THE RUBBER SHOES (M) ONTO THE FRONT FOOT (H) AND THE BACK FOOT (G). (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) YOU MUST USE A WRENCH TO TIGHTEN!
- Page 6 SEAT & BACKREST INSTALLATION NOTE: IF THE BACKREST OR SEAT ARE LOOSE OR WOBBLE TIGHTEN THESE NUTS UNTIL THEY DO NOT MOVE SIDE TO SIDE. ATTACH THE THE BACKREST ASSEMBLY AND THE SEAT ASSEMBLY TO THE BODY USING THE M12 x 80MM BOLTS (J), M12 FLAT WASHERS(O), AND M12 LOCK NUTS (Q).
-
Page 7: Safety Notice
ADJUSTMENT ADJUSTING THE BACK PAD: RAISE AND LOWER THE BACKREST USING THE LOCK PIN. MAKE SURE THE LOCK PIN IS COMPLETELY THROUGH THE BACKREST BRACKET AND ADJUSTMENT HOLE BEFORE USE. ADJUSTING THE SEAT PAD: RAISE THE SEAT PAD TO THE DESIRED POSITION BY USING THE LOCK PIN THOUGH THE HOLES IN THE BRACKET. - Page 8 T-SHIRT ORDER FORM DELTECH FITNESS T - SHIRT SIZES AVAILABLE ARE M-XXL. THE COLOR OF THE SHIRTS ARE WHITE. RED AND BLACK LOGO. ONLY $12.99 DELTECH FITNESS MUSCLE SHIRT SIZES AVAILABLE M-XXL THE COLOR AVAILABLE IS BLACK. RED AND WHITE LOGO.
