ALLIANCE ALLPH35R410 Installation & Operation Manual

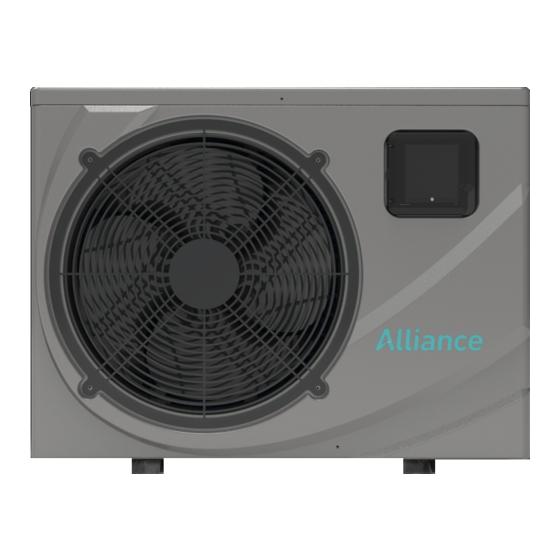

Swimming pool heat pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

S W I M M I N G P O O L
H E A T P U M P
I N S T A L L A T I O N & O P E R A T I O N M A N U A L
Thank you very much for purchasing our product. Before using your unit, please read this manual carefully and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALLPH35R410 and is the answer not in the manual?

Questions and answers

Willie Kriel
July 4, 2025

How do I get into to parameters settings

0

Subscribe to Our Youtube Channel

Related Manuals for ALLIANCE ALLPH35R410

Summary of Contents for ALLIANCE ALLPH35R410

  • Page 1 S W I M M I N G P O O L H E A T P U M P I N S T A L L A T I O N & O P E R A T I O N M A N U A L Thank you very much for purchasing our product.

  • Page 2: Table Of Contents

    C O N T E N T S 1. PREFACE 2. Specifications 2.1 Performance Data of Swimming Pool Heat Pump Unit 2.2 Dimensions for Swimming Pool Heat Pump Unit 3. INSTALLATION AND CONNECTION 3.1 Installation of System 3.2 Swimming Pool Heat Pumps Location 3.3 How Close to Your Pool? 3.4 Swimming Pool Heat Pumps Plumbing 3.5 Swimming Pool Heat Pumps Electrical Wiring...

  • Page 3: Preface

    The unit must be installed by an Alliance approved installer. • The unit can only be repaired by an authorised dealer.

  • Page 4: Specifications

    2 . S P E C IF I CAT I O NS 2.1 PERFORMANCE DATA OF SWIMMING POOL HEAT PUMP UNIT ***REFRIGERANT: R410A UNIT ALLPH35R410 ALLPH54R410 ALLPH76R410 HEATING CAPACITY (24/19-C) Btu/h 11900 18360 25840 HEATING POWER INPUT 0.76 1.06 1.52...

  • Page 5: Dimensions For Swimming Pool Heat Pump Unit

    2. S P E C I FI CAT I O NS 2.2 DIMENSIONS FOR THE SWIMMING POOL HEAT PUMP UNIT ALLPH35R410/ALLPH54R410 unit: mm MODEL / MARK ALLPH35R410 / ALLPH54R410...
  • Page 6 2. S P E C I FI CAT I O NS 2.2 DIMENSIONS FOR THE SWIMMING POOL HEAT PUMP UNIT ALLPH76R410 / ALLPH 1OOR410 / ALLPH 130R410 / ALLPH 160R410 unit: mm MODEL / MARK ALLPH76R410/ALLPH 1OOR410 ALLPH160R410 / ALLPH130R410 1116...

  • Page 7: Installation And Connection

    3. I N S TA L L AT I O N A ND CO N N E CTI O N 3.1 INSTALLATION ILLUSTRATION INSTALLATION ITEMS: Alliance only provides the main unit; the other items in the illustration are necessary spare parts for the water system , that the installer must provide. ATTENTION: Please follow these steps when using for the first time 1.

  • Page 8: Swimming Pool Heat Pumps Location

    3. I N S TA L L AT I O N A ND CO N N E CTI O N 3.2 SWIMMING POOL HEAT PUMPS LOCATION The unit will perform well in any outdoor location provided that the following three factors are present . 1.

  • Page 9: Swimming Pool Heat Pumps Plumbing

    3. I N S TA L L AT I O N A ND CO N N E CTI O N 3.4 SWIMMING POOL HEAT PUMPS PLUMBING Location: Connect the unit in the pool pump discharge(return) line downstream of the filter and pool pumps, and upstream of any chlorinators, ozonatorsor chemical pumps.

  • Page 10: Swimming Pool Heat Pumps Electrical Wiring

    3. I N S TA L L AT I O N A ND CO N N E CTI O N 3.5 SWIMMING POOL HEAT PUMPS ELECTRICAL WIRING NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it simply prevents the flow of electricity to or from the pool water.

  • Page 11: Usage And Operation

    4. US AG E A ND O P ER AT I O N 4.1 FUNCTION OF CONTROLLER 1. BUTTON FUNCTION SYMBOL NAME FUNCTION Press this button to start up or shut down the unit, cancel the current operation or go back to the On/off previous interface Mode...
  • Page 12 4. U S AG E A N D O PE R AT I O N 2. DISPLAY FUNCTION SYMBOL MEANING FUNCTION Cooling Unit is in cooling mode. Heating Unit is in heating mode and flashes when defrosting. Automatic Unit is in automatic mode. Electric-heating Unit is in electric-heating mode.

  • Page 13: Controller Usage

    4. U S AG E A N D O PE R AT I O N 4.2 CONTROLLER USAGE 2.1 Starting up and shutting down In the off interface, press " " for 0.5 scan start up the unit, and aux. display-area shows water outlet temperature; In the running interface, press " " for 0.5s can shut down the unit and aux.
  • Page 14 4. U S AG E A N D O PE R AT I O N 2.3 Temperature setting In the main interface , press " " or " " for the current mode target-temperature to flash, then press " " to increase the temp. value, or press " " to decrease it.
  • Page 15 4. U S AG E A N D O PE R AT I O N...
  • Page 16 4 . U S AG E AN D O P ER AT I O N 2.5 Timersetting In the main interface, press " " and hold for 2 seconds until "on" flashes, Now you can set the timer on (means the unit timer is on), then press "...
  • Page 17 4. U S AG E A N D O PE R AT I O N...
  • Page 18 4. U S AG E A N D O PE R AT I O N 2.6 Cancel the timer setting Press" " for 2s until "ON" is flashing, Now press " " to cancel the setting of timer on; It is the same way to cancel the setting of timer off . For example:...

  • Page 19: Parametertable

    4. U S AG E A N D O PE R AT I O N 2.4 Keyboard lock To avoid mis-operation, please lock the controller after parameter setting. At the main interface, press" " for 5 seconds, the keyboard will be locked. When the keyboard is locked, press"...

  • Page 20: Maintenance And Inspection

    5 . MA I N T E N A N C E A ND I N S PE CTI O N 5.1 Maintenance • You should avoid no water or air entering into system , as this will influence unit's performance and reliability. You should clear the pool/spa filter regularly to avoid damage to the unitas a result of the dirty of clogged filter.

  • Page 21: Trouble Shooting

    5. M A I N T EN A NC E A ND I N S PE CT I ON 5.2 .Trouble Shooting COMMON FAILURE CAUSE AND SOLUTION MALFUNCTION DISPLAY CANSE SOLUTION The water inlet temp. sensor is open or Check or change thewater inlet temp. Water inlet temp.Sensor failure short circuit sensor...

  • Page 22: Appendix

    6. A P P E N D I X 6.1 Connection of PCB illustration ê CONNECTIONS EXPLANATION: SYMBOL MEANING OUT1 Compressor of system 1 (220-230VAC) OUT2 Water pump (220-230VAC) OUT3 4way valve (220-230VAC) OUT4 High speed fan motor (220-230VAC) OUT5 Low speed fan motor (220-230VAC) AC-N Neutral wire...

  • Page 23: Cable Specification

    6. A P P E N D I X 6.2 Cable specification 1. SINGLE PHASE UNIT NAME PLATE MAXIMUM PHASE LINE EARTH LINE CREEPAGE PROTECTOR SIGNAL LINE CURRENT No more than 10A 2 X 1.5mm 1.5mm 20A 30mA less than 0.1 sec 10~16A 2 X 2.5mm 2.5mm...
  • Page 24 6. A P P E N D I X COMP AI06 OUT3 OUT1 OUT2 RED BLU AI05 OUT4 PC1001 AI04 OUT5 AI03 TO POWER TO PUMP AI02 AC-N SUPPLY 6.8K 220-240V~/50Hz AI01 AT：Ambient temperature COMP：Compressor CT：Coil temperature EEV：Electronic expantion valve FM：Fan motor FS：Flow switch HP：High pressure protection...

  • Page 25: Warranty

    Subject to the stated terms and conditions, warranty is given This warranty will lapse if any repairs are carried out by to the purchaser in respect of the Alliance Heat Pump, Model any dealer other than any dealer authorised by Alliance. An No and Serial No.
  • Page 26 4. Should the equipment be installed in very dusty or dirty environments, servicing should be done every three months (or a minimum of twice a year depending on environment). The installing dealer will advise you as to the servicing intervals required, and may contact the Alliance distributor to get advice on this.
  • Page 27 • Clean unit cabinets SERVICE NO DATE TECHNICIAN NAME TECHNICIAN SIGN By signing this service record the authorised Alliance dealer technician confirms that the service has been carried out and that the unit is in a satisfactory working condition and performing to specification...
