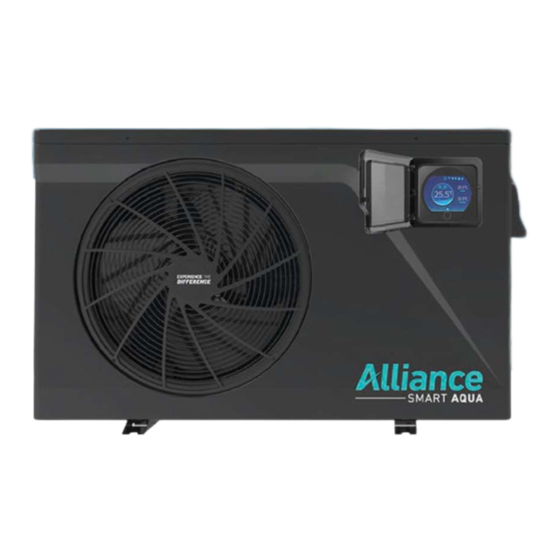

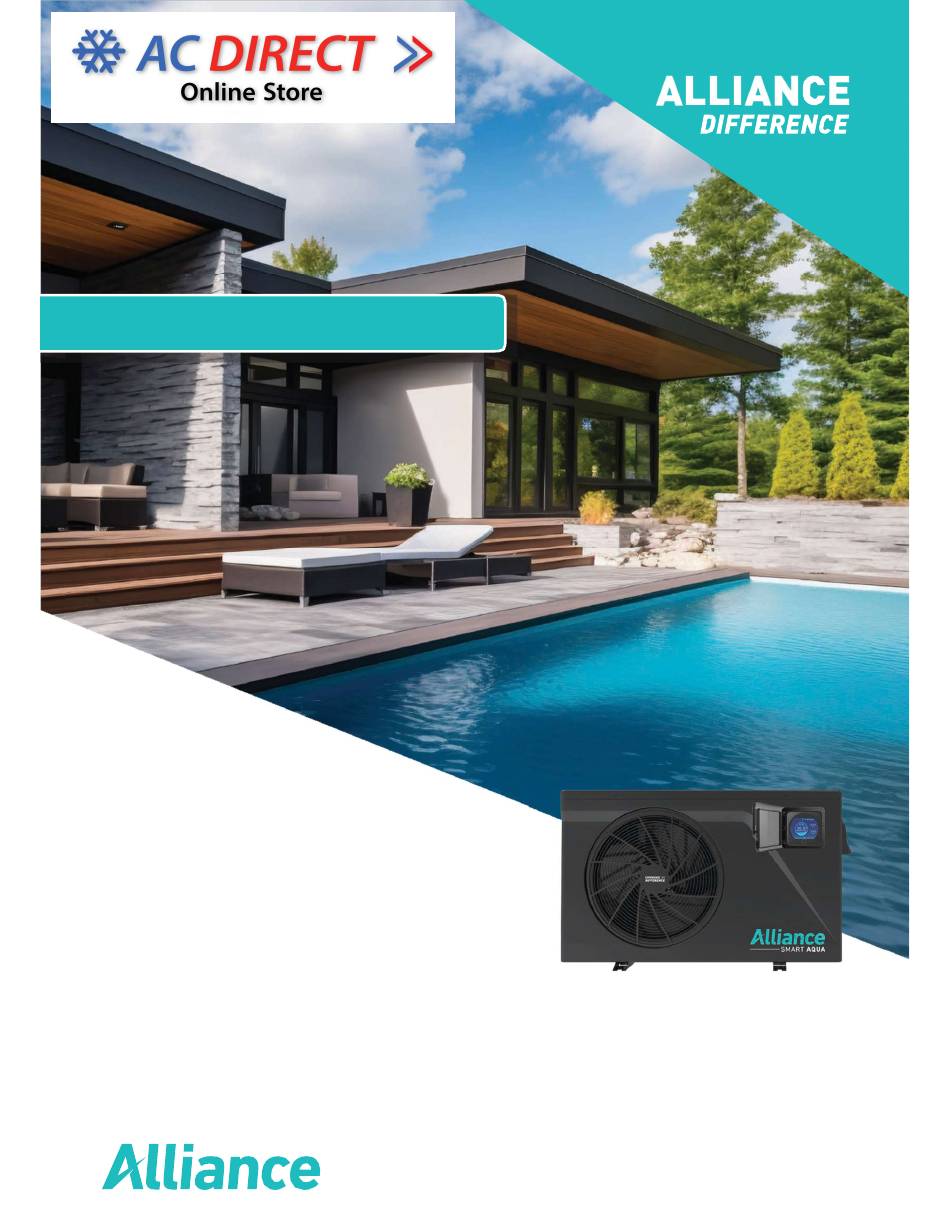

- Page 1 Pool Heat Pump I N V E R T E R · ALLPH70R32 - INV - Smart Aqua · ALLPH12R32 - INV - Smart Aqua · ALLPH18R32 - INV - Smart Aqua · ALLPH24R32 - INV - Smart Aqua · ALLPH28R32 - INV - Smart Aqua...
- Page 2 PC board wiring ..............33 - 37 Maintenance ..............38 Appendix… ............... 39 Warranty ................40 - 42 Service schedule .............. 42 * Alliance reserves the right to discontinue, or change at any time, specifications or designs without notices and without incurring obligations.
- Page 3 To provide our customers with quality, reliability and versatility, this product has been made to strict production standards. This manual includes all the necessary information about installation, debugging, discharging and maintenance. Please read this manual carefully before you open or maintain the unit. The manufacture of this product will not be held responsible if someone is injured or the unit is damaged, because of improper installation, debugging, or unnecessary maintenance.
- Page 4 Performance Data UNIT ALLPH70R32 - INV – Smart Aqua ALLPH12R32 - INV – Smart Aqua Heating Capacity 2.0 – 7 2.56 – 11.5 Consumed power 0.196 – 1.21 0.246 – 1.92 10.2 – 5.78 10.4 – 5.99 Operating air temperature °C -7 to 43 -7 to 43...
- Page 5 Performance Data Unit ALLPH28R32 - INV – Smart Aqua Heating Capacity 10.3 – 28 Consumed power 0.82 – 4.49 12.56 – 6.24 Operating air temperature °C -7 to 43 Power supply 380-415V / 3Ph Max power input Rated current input 10.22 Compressor quantity Compressor type...
- Page 8 R32 REFRIGERANT The unit MUST NOT be installed in any enclosed area. Heat Pump Location The unit will perform well in any outdoor location provided that the following three factors are presented: 1. Fresh Air - 2. Electricity - 3. Pool filter piping The unit may be installed virtually anywhere outdoors.
- Page 9 INSTALLATION ILLUSTRATION Remarks: The factory only provides the heat pump. Other parts, including a by-pass are to be provided by the user or installer. Attention: Please take the following steps when installing the heat pump: Each addition of chemicals must be performed through the piping located AFTER the heat pump. Install a by-pass for easy maintenance.
- Page 10 Important - Although the heat pump is electrically isolated from the rest of the unit, this only prevents the passage of electricity to or from the pool water. Grounding the unit is still required to protect yourself from short circuits inside the unit.
- Page 11 NOTE - For the unit to heat the pool or spa, the filter pump must be running to circulate water through the heat exchanger. Startup Procedure - After installation is completed, you should follow these steps: Turn on your pool pump. Check for water leaks and verify flow to and from the pool. Turn on the electrical power supply to the heat pump, then press the key ON/OFF on the wire controller.
- Page 12 Controller display The heat pump is equipped with a digital control panel with a touch screen, electronically connected and pre- set at the factory in heating mode.
- Page 13 OFF mode ON mode When the heat pump is idle (in standby mode), OFF is When the heat pump is running or priming (setpoint displayed as shown on the screen. reached), the screen turns blue. The black screen indicates that the heat pump is idle; settings can be adjusted in this mode.
- Page 14 Time settings The date and time can be set either in ON or in OFF mode. Press 1 time on to return to the main screen. Setting the On/Off timers Setting this function is necessary if you would like to run the heat pump for a shorter period than what is defined by the filtration clock.
- Page 15 Press 2 times to return to the main screen. PV Ready function The PV Ready icon is displayed on the setting interface. Click to enter the PV control interface. Wiring diagram, description of mode and parameter setting interface can be selected.
- Page 17 Press 2 times to return to the main screen.
- Page 18 Spot time Spot time control function means that the heat pump in a certain period of time can be set for different target temperatures. Therefore, customers can set the parameters to adjust the spot time temperature control function of the heat pump. Press 1 time to return to the main screen.
- Page 19 Adjust set point Press 1 time to return to the main screen.
- Page 20 Press 1 time to return to the main screen.
- Page 21 Mode selection – Heating / Cooling / Auto Press 1 time to return to the main screen.
- Page 22 Locking and unlocking the touch screen...
- Page 23 Silent mode function settings Silent mode means that the heat pump is in economic and silent mode. When the energy demand is low, only maintain the temperature of the swimming pool or for the silence running of the unit This function can be Activated/Deactivated manually or using a Timer Activation/Deactivation. Press 1 time to return to the main screen...
- Page 24 Adjusting the Silent mode timer...
- Page 25 Press 2 times to return to the main screen. The setting step is “hour to hour”. Once the Timer is activated, it is active 7 days a week.
- Page 26 Troubleshooting guide Certain operations must be carried out by an authorized technician. If a fault occurs on the heat pump appears in the top left-hand corner of the screen. Refer to following table. When the problem is resolved, the error is automatically acknowledged and the triangle disappears. •...
- Page 27 Protection / Fault Fault code Reason Solution Inlet Temp. Sensor Fault The temp. sensor is broken or short circuit Check or change the temp. sensor Outlet Temp. Sensor Fault The temp. sensor is broken or short circuit Check or change the temp. sensor Ambient Temp.
- Page 28 Protection / Fault Fault code Reason Solution Drv1 MOP alarm MOP drive alarm Recovery after the 150s Frequency conversion board and Inverter offline Check the communication connection mainboard communication failure IPM protection IPM modular protection Recovery after the 150s Lack of phase, step or drive hardware Check the measuring voltage , check frequency Comp.
- Page 29 Meaning Default Remarks Refrigeration target temperature set 27℃ Adjustable point Heating target temperature set point 27℃ Adjustable Automatic target temperature set point 27℃ Adjustable Wire control interface diagram and definition Controller interface diagram and definition...
- Page 32 Number Sign Meaning P10-1/2/3(U/V/W) Compressor P13(L) Resistance P14(L) Resistance CN97 DC motor RS485-2 The port for centralized control RS485 Colour line controller communication Water output temperature System exhaust temperature Water input temperature System suction temperature System fan coil temperature Ambient temperature System high pressure System low pressure Water flow switch...
- Page 33 Wire control interface diagram and definition...
- Page 38 • Check the water inlet and drainage often. The water and air inflow into the system should be sufficient so that its performance and reliability does not get compromised. You should clean the pool filter regularly to avoid damage to the unit caused by clogging of the filter. •...
- Page 39 Caution & Warning 1. The unit can only be repaired by qualified installer centre personnel or an authorized dealer. 2. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 40 Subject to the stated terms and conditions, warranty is given This warranty will lapse if any repairs are carried out by any to the purchaser in respect of the Alliance Heat Pump, dealer other than any dealer authorised by Alliance.
- Page 41 Should the equipment be installed in very dusty or dirty environments, servicing should be done every three months (or a minimum of twice a year depending on environment). The installing dealer will advise you as to the servicing intervals required and may contact the Alliance distributor to get advice on this.
- Page 42 • Clean unit cabinets Service No Date Technician Name Technician Sign By signing this service record the authorised Alliance dealer technician confirms that the service has been carried out and that the unit is in a satisfactory working condition and performing to specification.
- Page 43 w w w . a l l i a n c e a f r i c a . c o . z a...
