ALLIANCE ALLPH9Kw-INV Installation & Operation Manual

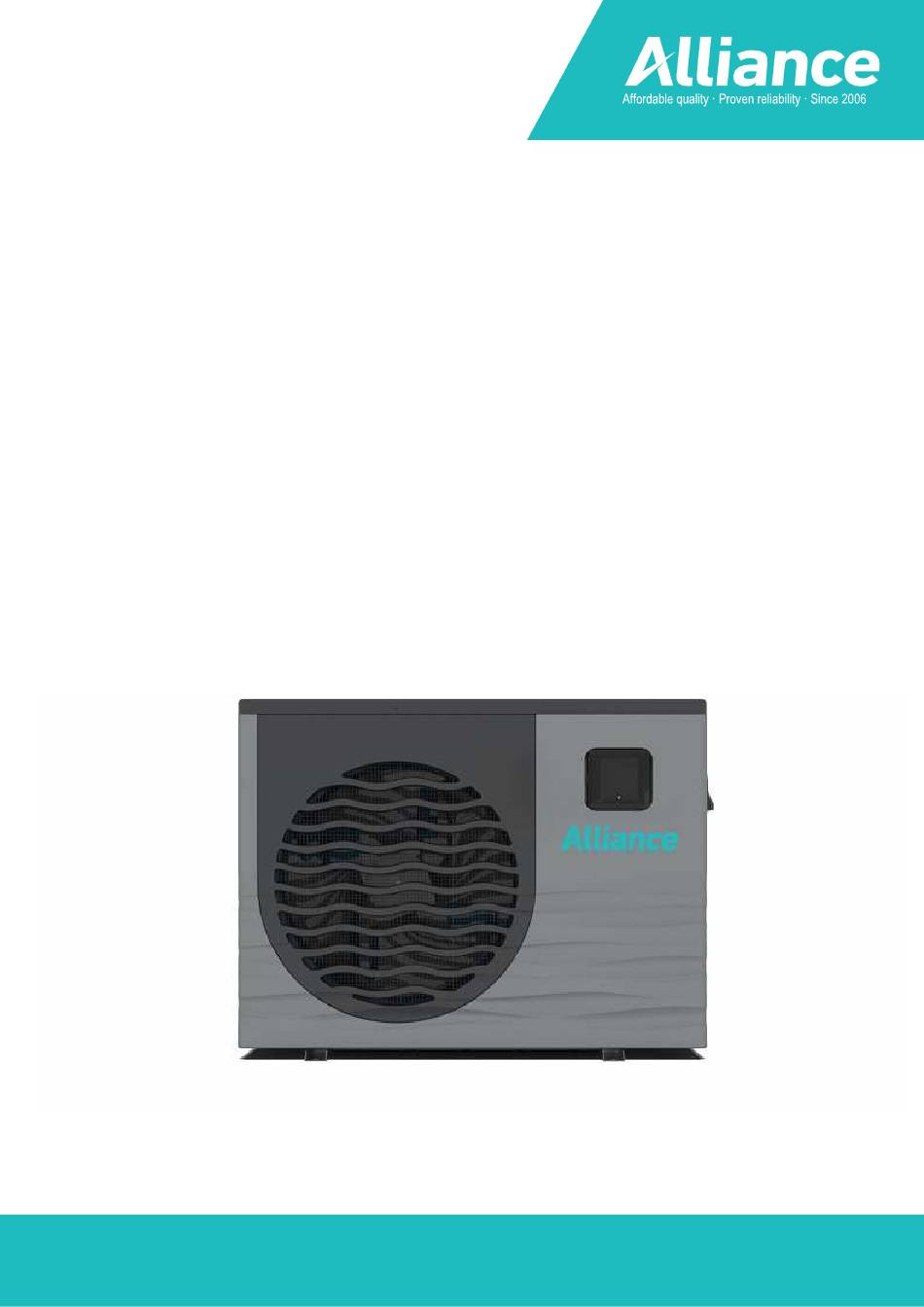

Domestic inverter pool heat pump

Advertisement

Alliance Domestic Inverter
Thank you very much for purchasing our product.
Before using your heat pump, please read this manual
carefully and keep if for future reference.
The manufacturers of Alliance Heat Pumps employ over 300 senior engineers and operate
31 approved test laboratories, guaranteeing the innovation and high quality of Alliance products.
Pool Heat Pump
Installation & Operation Manual
Models: ALLPH9Kw-INV
ALLPH12Kw–INV
ALLPH16Kw–INV
ALLPH19Kw–INV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALLPH9Kw-INV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ALLIANCE ALLPH9Kw-INV

  • Page 1 Before using your heat pump, please read this manual carefully and keep if for future reference. The manufacturers of Alliance Heat Pumps employ over 300 senior engineers and operate 31 approved test laboratories, guaranteeing the innovation and high quality of Alliance products.
  • Page 2: Table Of Contents

    Contact Information ........................25 N.B: This Installation Manual is the property of Alliance Heat Pumps, and all rights of copyright are reserved. It may not be reproduced or used for any other purpose without written permission from Alliance. In the interests of product...
  • Page 3: Preface

    Preface In order to provide our customers with quality, reliability and versatility, this product has been made to strict production standards. This manual includes all the necessary information about installation, debugging, discharging and maintenance. Please read this manual carefully before you open or maintain the unit.
  • Page 4: About Heat Pumps

    Specifications Performance data UNIT ALLPH90R410 - INV ALLPH120R410 - INV Operating air temperature °C -15 to 43 Heating Capacity 2.2 – 9.0 3.77 – 16.9 Consumed power 0.16 – 1.60 0.3 – 3.02 13.75 – 5.63 12.57 – 5.63 Power supply 230V~/ 50Hz Nominal Heating Capacity 4.29...
  • Page 5: Specifications - Allph160R410-Inv / Allph190R410-Inv

    Specifications Performance data UNIT ALLPH160R410 - INV ALLPH190R410 - INV Operating air temperature °C -15 to 43 Heating Capacity 3.77 – 16.9 4.6 – 19.5 Consumed power 0.3 – 3.02 0.37 – 3.94 12.57 – 5.63 12.43 – 4.95 Power supply 230V~/ 50Hz Nominal Heating Capacity 11.5...
  • Page 6: Dimensions

    Dimensions Alliance Inverter 9/12kw 1003 mm 767 mm 410 mm Alliance Inverter 16 / 19kw Alliance Inverter Alliance Inverter 16Kw 19Kw 1117 mm 868 mm 447 mm...
  • Page 7: Installation And Connection

    Installation and Connection Heat Pump Location The unit will perform well in any outdoor location provided that the following three factors are presented: 1. Fresh Air - 2. Electricity - 3. Pool filter piping The unit may be installed virtually anywhere outdoors. For indoor pools please consult the supplier. Unlike a gas heater, it has no draft or pilot light problem in a windy area.
  • Page 8: Installation Illustration

    Installation illustration Remarks: The factory only provides the heat pump. Other parts, including a by-pass are to be provided by the user or installer. Attention: Please take the following steps when installing the heat pump: Each addition of chemicals has to be performed through the conduits located AFTER the heat pump. Install a by-pass for easy maintenance Always place the heat pump on a solid base and use the supplied silent blocks in order to avoid vibrations and noise.
  • Page 9: Electrical Wiring

    Electrical Wiring Important - Although the heat pump is electrically isolated from the rest of the unit, this only prevents the passage of electricity to or from the pool water. Grounding the unit is still required to protect yourself from short circuits inside the unit. Make for adequate ground connection.
  • Page 10: Initial Start-Up Of Unit

    Initial startup of the Unit NOTE- In order for the unit to heat the pool or spa, the filter pump must be running to circulate water through the heat exchanger. Start up Procedure - After installation is completed, you should follow these steps: Turn on your pool pump.
  • Page 11: Controller Operation

    Controller operation: Controller display Key and icon function instruction Key symbols Designation Function Under the heating mode or heating mode under the Mute key automatic mode, the mute key operation is effective and used to enter and exit the mute mode with one click. It is used to switch the unit mode, temperature setting, and Mode key parameter setting.
  • Page 12 Icon function instruction Icon symbol Designation Function It will display during cooling (there is no limit to startup & shutdown, and it is optional Cooling symbol when the unit is cooling-only unit or heating-and-cooling unit). It will display during heating (there is no limit to startup & shutdown, and it is optional Heating symbol when the unit is heating-only unit or heating-and-cooling unit).
  • Page 13 Start-up & shutdown Keep long press of " "for 0.5 s to enter ON/OFF interface When there is no operation within 1 minute, it will display with half screen off When there is no operation within 15 minutes, it will display with full screen off Notes: Startup &...
  • Page 14 Operation description 1). Mode switch operation can only be conducted in the main interface. 2). When the unit is under the defrosting state, the defrosting symbol is on, with the display interface as follows: Defrosting state Notes: 1).After completing the defrosting, the unit will be automatically switched to the heating/ automatic mode (keeping consistent with the mode before defrosting).
  • Page 15 Setting and cancelling the Timer ON/OFF function The wire controller can set up a two-stage timing function: Timer ON1~ OFF1;Timer ON2~OFF2 Select timer setting interface: ON 1 OFF1 ON 2 Short press" Short press " " " " to circularly to enter into display among the timer setting...
  • Page 16 Cancelling the Timer ON/OFF function: Cancel the timer ON/OFF as below. Take Cancel Timer On for example Short press " " to cancel the timer settings Short press " " Flashing Flashing Flashing (hour or minute Short press " " to save the change and return to digit) the main interface...
  • Page 17 Setting and cancelling the silent function Short press" " or " Keep long press " of " " for 2 s Short press" " for entering the hour digit setting of timing-on silent Short press" " or " " Short press" "...
  • Page 18 Fault interface When the unit fails, the wire controller can display the corresponding code according to the fault reason. Refer to the fault table for the specific definition of the fault codes. Fault code Fault serial number Quantity of faults Short press"...
  • Page 19: Error Code List

    Error code list Fault Protection/fault Reason Elimination methods display MOP drive alarm Recovery after the 150s Drv1 MOP alarm Frequency conversion board and Check the communication connection Inverter offline main board communication failure IPM modular protection Recovery after the 150s IPM protection Lack of phase, step or drive Check the measuring voltage check...
  • Page 20 Fault Protect/fault Reason Elimination methods display The temp. Sensor is broken or Check or change the temp. Sensor Inlet Temp. Sensor Fault short circuit The temp. Sensor is broken or Outlet Temp. Sensor Fault Check or change the temp. Sensor short circuit The temp.
  • Page 21: Pc Board Wiring Diagram

    PC Board wiring diagram Wire control interface diagram and definition Terminal Function 12V power + Not used Not used 485A 485B GND (power -)
  • Page 22: Maintenance And Inspection

    Maintenance and Inspection Check the water inlet and drainage often. The water and air inflow into the system should be sufficient • so that its performance and reliability does not get compromised. You should clean the pool filter regularly to avoid damage to the unit caused by clogging of the filter. The area around the unit should be spacious and well ventilated.
  • Page 23: Appendix

    Appendix Caution & Warning The unit can only be repaired by qualified installer center personnel or an authorized dealer. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 24 Alliance Heat Pump, Model No and Serial No. by Alliance. An authorised dealer is a company that as listed on the back of this card for 12 months on deals with Fourways Airconditioning.
  • Page 25: Warranty

    TERMS AND CONDITIONS OF WARRANTY: 1. This warranty is applicable only to the original purchaser and to units serviced by an authorised Alliance dealer. 2. This warranty is only valid if the unit is serviced every year as per the schedule below (or more frequently as advised by authorised Alliance installer).
  • Page 26 11. ALLIANCE heat pumps MUST always be installed outdoors, with unrestricted air flow around the heat pump. 12. The size and model of the ALLIANCE domestic swimming pool heat pump selected must be appropriate to the specific application and sized using Alliance’s swimming pool sizing calculator.
