INSTALLATION, ADJUSTMENT, SERVICE

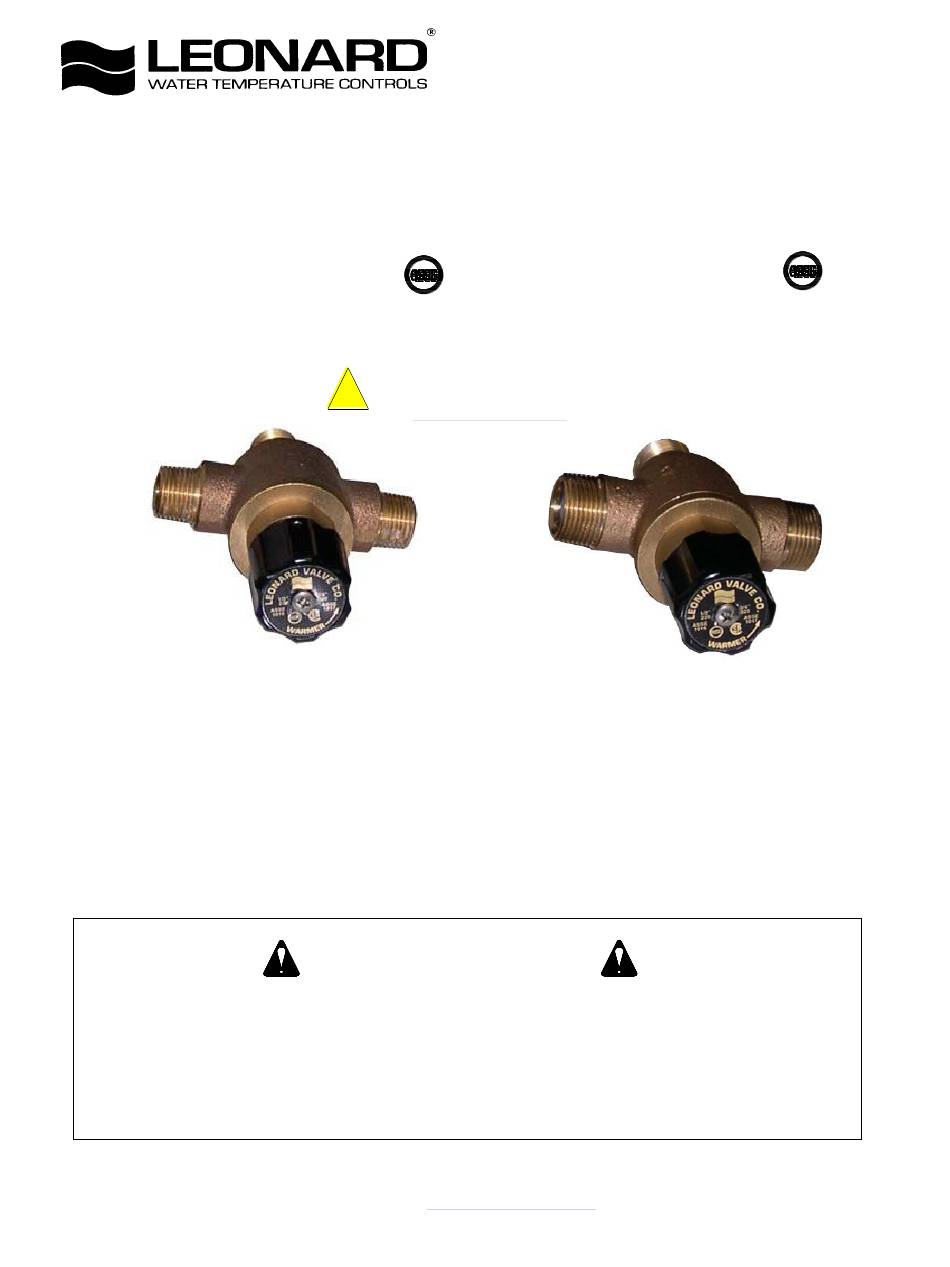

THERMOSTATIC / POINT OF USE MIXING VALVES

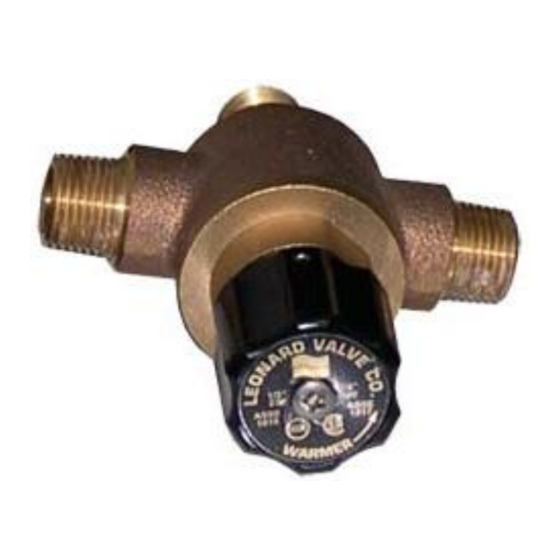

269-LF (1/2" NPT)
ASSE 1069 CERTIFIED
269-LF & 369-LF WARNING:
When using flex hoses be careful, swivel connectors may damage inlet checks and / or
element on outlet on 269-LF and 369-LF models. Coupling fittings may be needed if swivel
connectors have a brass protruding tube or any protrusion that may damage the valve.
1. Valve should be installed where it can be easily cleaned,
adjusted or repaired.
2. Inlets are furnished with NPT connections. When
soldering close to this unit, DO NOT OVERHEAT,
internal components may become damaged.
WATER TEMPERATURES IN EXCESS OF 110°F (43°C) MAY CAUSE SCALDING, SEVERE
IMPORTANT! These thermostatic water mixing valves can be adjusted to deliver water at temperatures
exceeding 110°F (43°C). After installation, the installer must check the outlet water temperature and adjust
the temperature setting to ensure delivery of a safe water temperature not exceeding 110°F (43°C). See
MODEL 269-LF, 369-LF
These products are certified to meet Low Lead requirements of
wetted surface area containing less than 0.25% lead by weight
WARNING: This product can expose you to
chemicals including lead, which is known to the State
!
of California to cause cancer. For more information, go
to
WARNING!!
INJURY, OR DEATH!!
Maximum Operating Pressure: 125 PSI (860 KPA)
.
1360 Elmwood Avenue, Cranston, RI 02910 USA
Phone: 401.461.1200 Fax: 401.941.5310
Email:
Web Site: http://www.leonardvalve.com
ECO-MIX
369-LF (3/4" NPT)
ASSE 1069 CERTIFIED
www.P65Warnings.Ca.gov
3. Leonard recommends that unions and shutoffs are
installed on the inlets and outlet.
4. Use solder or pipe cement sparingly. Supply pipes should
be flushed before the valve is connected. Flush outlet
pipe and valve as soon as it is connected.
info@leonardvalve.com
Bulletin G-269
™
August, 2018
