INSTALLATION ADJUSTMENT SERVICE
HIGH CAPACITY MANIFOLD SYSTEM
IMPORTANT! Provide valve serial numbers (stamped on cover of valves) when ordering parts!!
HOT
INLET
1. Type TM manifold systems are factory pre-
assembled and tested and include large and
small thermostatic water mixing valves which
function as a system to meet both high and low
demand for tempered water.
2. System should be installed at a location where it
can easily be cleaned, adjusted or repaired.
3. System supplies must be connected as shown
(Hot-left, Cold-right). Exercise caution when
soldering.
All thermostatic water mixing valves have limitations. They will not provide the desired accuracy outside of their flow
capacity range. Consult the capacity chart on page 9. Minimum flow must be no less than as shown.
REMEMBER! THIS IS A CONTROL SYSTEM WHICH MUST BE CLEANED AND MAINTAINED ON A
REGULAR BASIS (SEE MAINTENANCE GUIDE AND RECORD MGR-1000).
TM-186-30015050-PRV

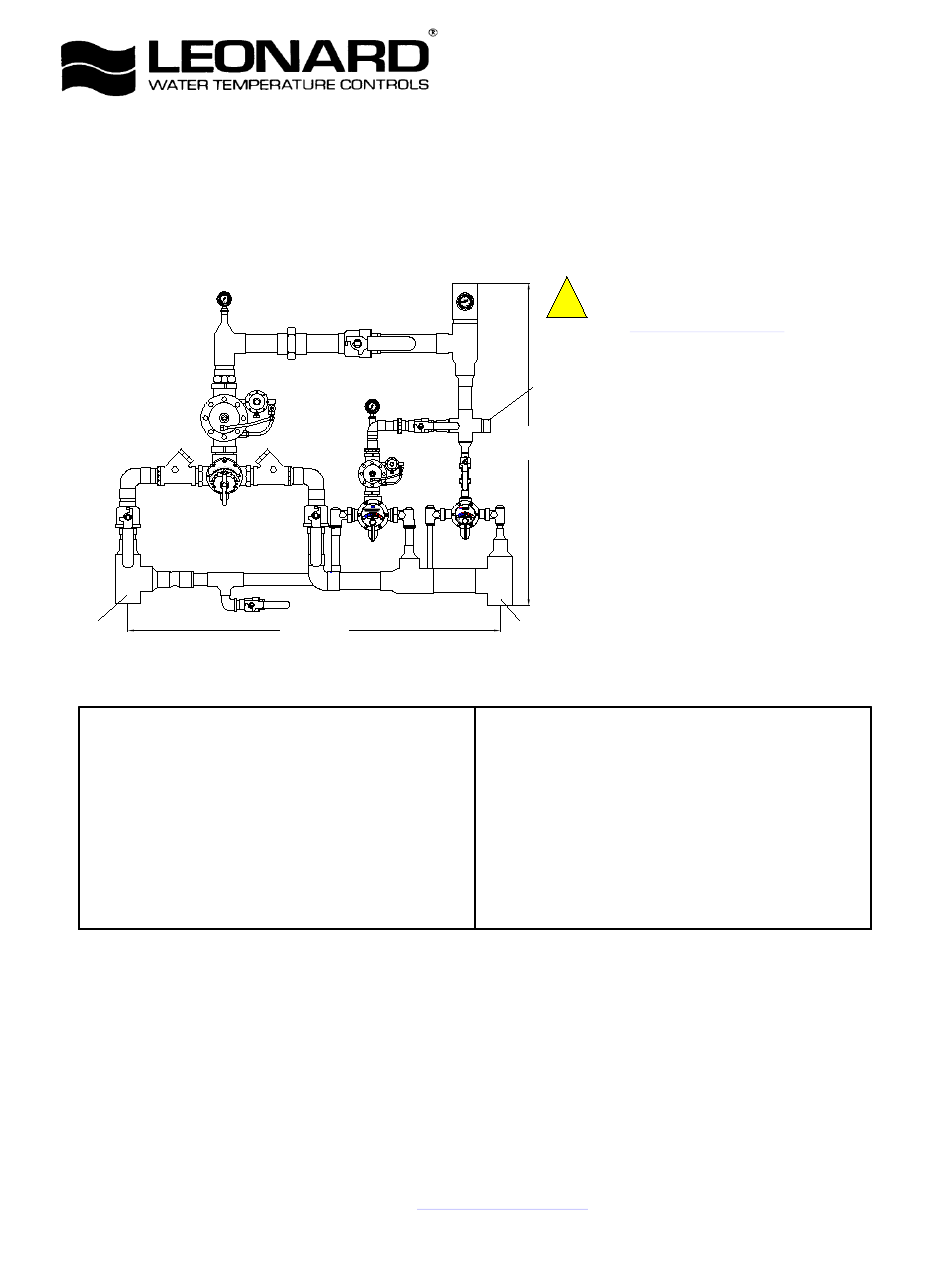

64"
INSTALLATION
Maximum Operating Pressure 125 PSI (8.6 BAR)
CAUTION
1360 Elmwood Avenue, Cranston, RI 02910 USA
Phone: 401.461.1200 Fax: 401.941.5310
info@leonardvalve.com
Email:
Web Site: http://www.leonardvalve.com
OUTLET
!
CIRCULATION
CONNECTION
56"
APPROX.
COLD
INLET
4. Flush pipes thoroughly after system has been
connected.
5. If this assembly is installed on a recirculated
hot water system it MUST be piped according
to a REQUIRED PIPING METHOD (see
page 4).
6. Refer to page 3 of this bulletin for correct Setup
Instructions.
Bulletin G19Z
WARNING: This product can expose you to
chemicals including lead, which is known to the State
of California to cause cancer. For more information, go
to
www.P65Warnings.Ca.gov
April, 2020
