INSTALLATION ADJUSTMENT SERVICE
IMPORTANT! Provide serial numbers for both valves when ordering parts!!
DOMESTIC OUTLET
HOT INLET
1. Type TM manifold systems are factory pre- assembled
and tested and include large and small thermostatic water
mixing valves which function as a system to meet both
high and low demand for tempered water.

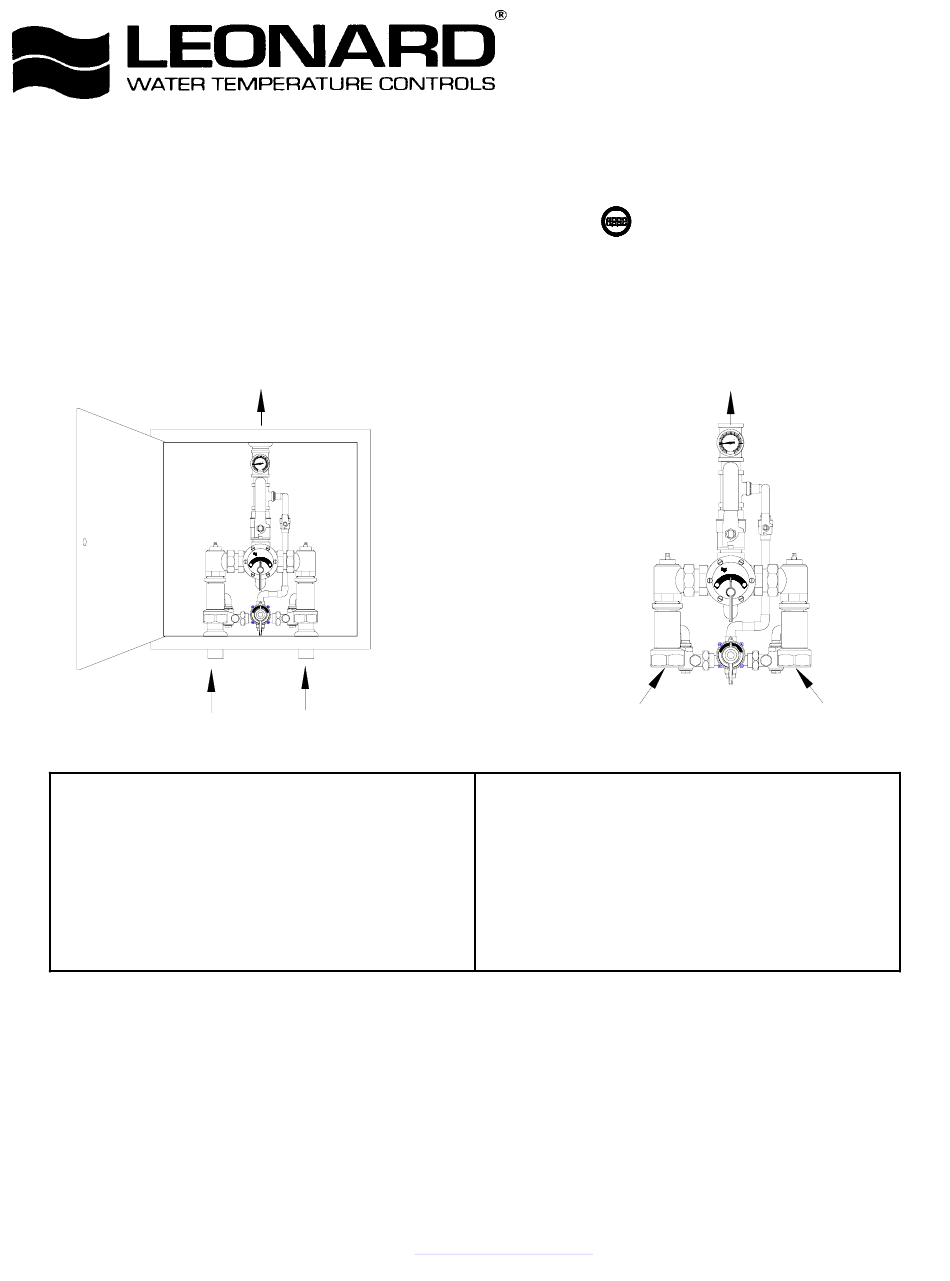

2. System should be installed at a location where it can
easily be cleaned, adjusted or repaired.
3. System supplies must be connected as shown (Hot-left,
Cold-right). Exercise caution when soldering.
Maximum Operating Pressure 125PSI (860 KPA) for Hot and Cold Water.
All thermostatic water-mixing valves have limitations. They will not provide the desired
accuracy outside of their flow capacity range. Consult the capacity chart on page 8. Minimum
flow must be no less than as shown.
HIGH-LOW MANIFOLD
TM-2020A
ASSE 1017 LISTED
INSTALLATION
60
80
20
30
100
40
10
L EONARD
R
40
0
50
20
-10
60
120
°C
°F
0
140
LE ON ARD
THERMOSTATIC
C
H
1017
ASSE
COLD INLET
CAUTION
1360 Elmwood Avenue, Cranston, RI 02910 USA
Phone: 401.461.1200 Fax: 401.941.5310
Email:
info@leonardvalve.com
Web Site: http://www.leonardvalve.com
DOMESTIC OUTLET
HOT INLET
4. Flush pipes thoroughly after system has been
connected.
5. If this assembly is installed on a recirculated hot water
system it MUST be piped according to LEONARD'S
REQUIRED PIPING METHODS (see pages 4 & 5).
6. Refer to page 3 of this bulletin for correct Setup
Instructions.
Bulletin G10-E
January 2006
80
60
20
30
100
10
40
LEONARD
R
40
0
50
20
-10
60
120
°C
°F
0
140
LEONARD
THERMOSTATIC
H
C
ASSE
1017
COLD INLET
