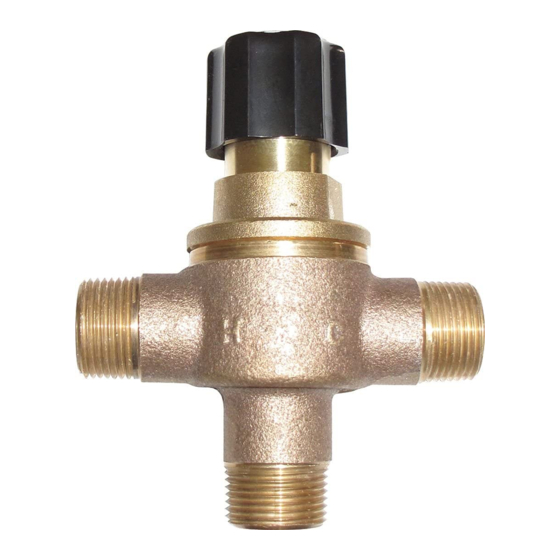

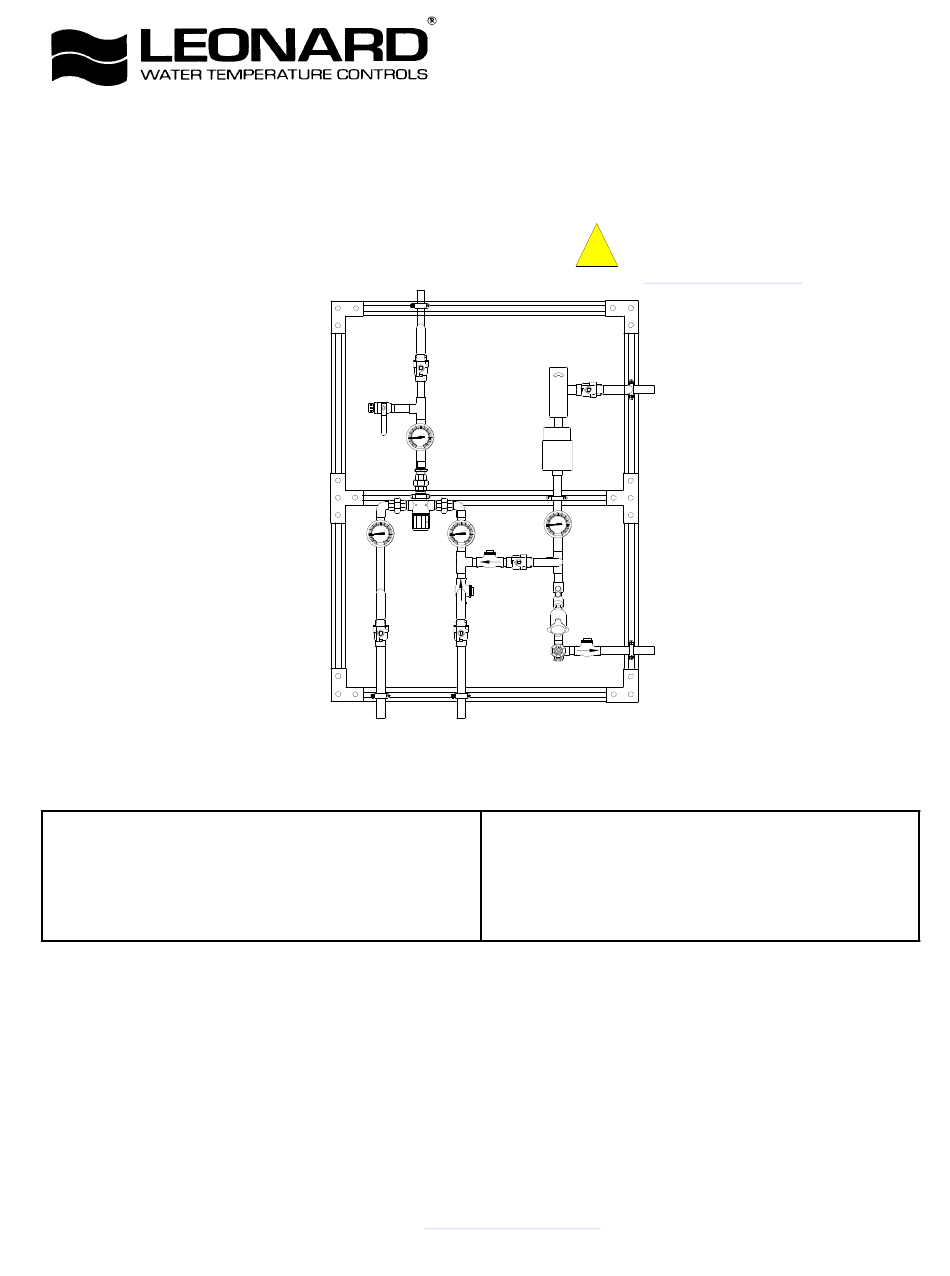

1. Megatron 270/370 systems is factory pre-assembled and
tested System should be installed at a location where it can
easily be cleaned, adjusted or repaired.
2. System supplies must be connected as shown (Hot-left,
Cold-right). Exercise caution when soldering.
Maximum Operating Pressure 125PSI (860 KPA) for Hot and Cold Water.
All thermostatic water mixing valves have limitations. They will not provide the desired accuracy outside of
their flow capacity range. Consult the capacity chart on page 4.
MEGATRON
MODEL 270-LF, 370-370-LF
OUTLET
TEST/SETUP
CONNECTION
10
0
-10
0
20
30
10
LEONARD
R
40
0
50
-10
60
°C
°F
0
HOT
INLET
INSTALLATION
NOTE: NOT TO BE USED FOR
EYEWASH APPLICATIONS
! CAUTION !
1360 Elmwood Avenue, Cranston, RI 02910 USA
Phone: 401.461.1200 Fax: 401.941.5310
Email:
Web Site: http://www.leonardvalve.com
®
MODEL 270/370
SYSTEMS
!
20
30
LEONARD
R
40
50
60
°C
°F
20
30
10
LEONARD
R
40
0
20
50
30
-10
10
LEONARD
R
60
40
°C
0
°F
0
50
-10
60
°C
°F
0
COLD
INLET
4. Flush pipes thoroughly after system has been connected.
5. Refer to page 4 of this bulletin for correct Setup
Instructions.
info@leonardvalve.com
Bulletin M-270/370
WARNING: This product can expose you to
chemicals including lead, which is known to the State
of California to cause cancer. For more information, go
to
www.P65Warnings.Ca.gov
RETURN LINE
TO HOT
WATER SOURCE
August, 2018
