INSTALLATION ADJUSTMENT SERVICE
Note: IMPORTANT! Provide serial numbers for both valves when ordering parts!!

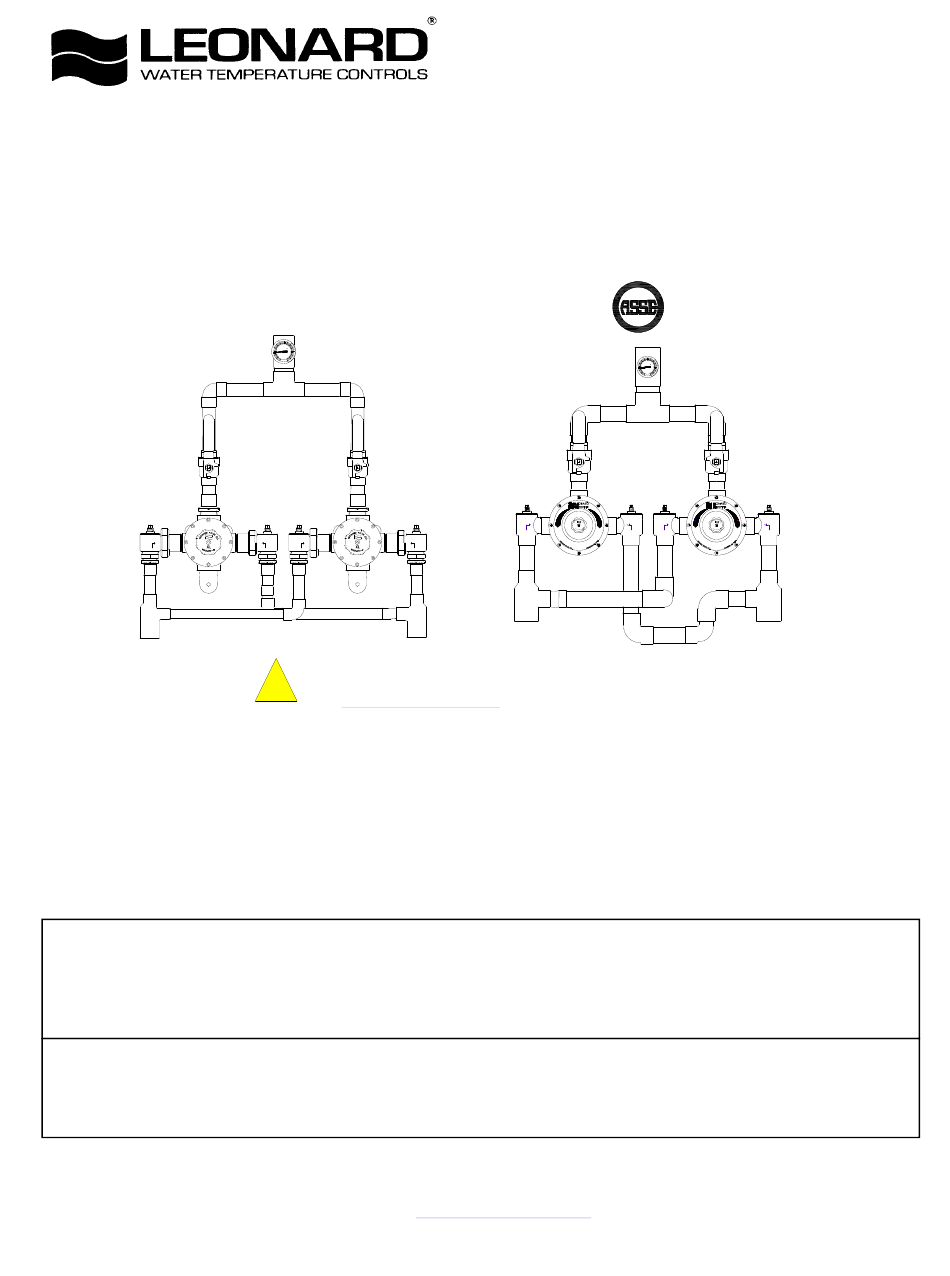

1. Assembly should be installed at a location where it can
easily be cleaned, adjusted or repaired.
2. The inlets are clearly marked on the valve body. Union
angle strainer checkstops furnished must be installed on
both supply lines as shown above.
125 PSI (8.6 BAR) MAXIMUM OPERATING PRESSURE
All thermostatic water-mixing valves have limitations. They will not provide the desired accuracy
outside of their flow capacity range. Consult the flow capacity chart on page 5.
REMEMBER! THIS IS A CONTROL SYSTEM WHICH MUST BE CLEANED
AND MAINTAINED ON A REGULAR BASIS (SEE MAINTENANCE GUIDE AND
RECORD MGR-1000).

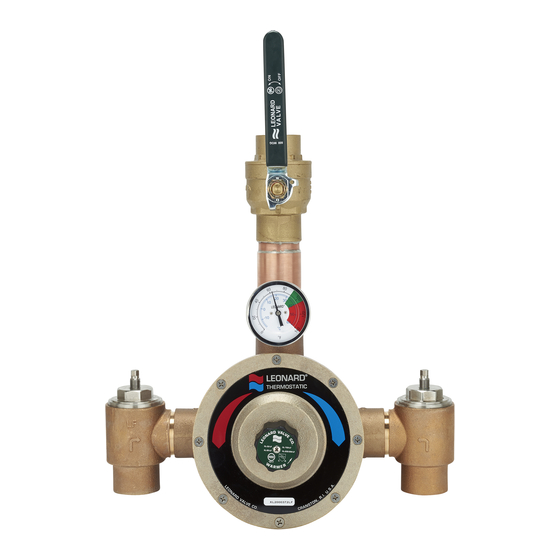

XL-150-2P, XL-150-2P-LF
XL-200-SW-2P-LF
PARALLEL SYSTEMS
INSTALLATION
Valves are ASSE 1017 Certified
20
30
10
LEON ARD
R
40
0
50
-10
60
°C
°F
0
WARNING: This product can expose you to
chemicals including lead, which is known to the State
!
of California to cause cancer. For more information, go
to
www.P65Warnings.Ca.gov
INSTALLATION
CAUTION
Minimum flow must be no less than as shown.
1360 Elmwood Avenue, Cranston, RI 02910 USA
Phone: 401.461.1200 Fax: 401.941.5310
Email:
info@leonardvalve.com
Web Site: http://www.leonardvalve.com
2 0
3 0
10
LEONARD
R
4 0
0
50
- 10
60
°C
°F
0
LF
LF
LF
3. Flush pipes thoroughly after system has been connected.
4. Refer to page 2 of this bulletin for correct Setup
Instructions
Bulletin XL-2P
August, 2018
LF
