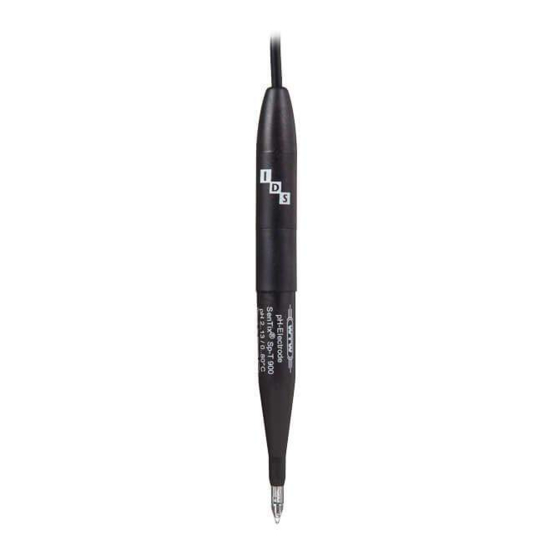

- Page 1 OPERATING MANUAL OPERATING MANUAL ba77091e02 02/2017 ® SenTix Sp-T 900(-P) IDS CUT-IN ELECTRODE WITH POLYMER ELECTROLYTE...
- Page 2 ® SenTix Sp-T 900 Copyright © 2017, Xylem Analytics Germany GmbH Printed in Germany. ba77091e02 02/2017...
-
Page 3: General Information
® SenTix Sp-T 900(-P) General information General information Automatic sensor The sensor electronics with the stored sensor data are in the connecting recognition head of the electrode. The data include, among other things, the sensor type and series number. With each calibration, the calibration data is written in the sensor and the calibration history is recorded (the last 10 calibration proce- dures). - Page 4 ® General information SenTix Sp-T 900(-P) Commissioning, measuring, calibration Opening and closing the IDS plug connection ® This section only applies to variants with IDS plug SenTix ... -P Plug connection closed and locked Guidance Groove Opening the plug If necessary, clean the plug connection connection ...
- Page 5 ® SenTix Sp-T 900(-P) General information Commissioning ® Scope of delivery SenTix Sp-T 900(-P) electrode Operating manual Commissioning Prepare the electrode for measuring as follows: Remove the watering cap from the electrode tip. Possible salt deposits in the area of the watering cap do not affect the measuring characteristics and can easily be removed with deionized water.
- Page 6 ® Storage SenTix Sp-T 900(-P) measured material or solution. The junction is in the area of the bottom end of the shaft (see arrow). ® SenTix Sp-T 900(-P) Caution: Only the shaft part of the combination electrode may be im- mersed! ...
-
Page 7: Maintenance And Cleaning
® SenTix Sp-T 900(-P) Aging has dried up, condition the electrode in reference electrolyte (KCl 3 mol/ L, Ag+ + free) for at least 24 hours. During longer storing periods, salt sediments may develop on the watering cap. They do not affect the measuring characteristics and can easily be removed with deionized water when the elec- trode is put into operation again. -
Page 8: Technical Data
® Technical data SenTix Sp-T 900(-P) Technical data Measurement pH measuring range 2.000 ... 13.000 characteristics Allowed temperature range 0 ... 80 °C (32 ... 176 °F) Accuracy of the Measured parameter Accuracy (± 1 digit) IDS measuring ± 0.004 technique U [mV] ±... -
Page 9: Wear Parts And Accessories
® SenTix Sp-T 900(-P) Wear parts and accessories Wear parts and accessories Maintenance Description Model Order no. equipment Reference electrolyte solution 250 ml KCl-250 109 705 to fill the watering cap (KCl 3 mol/l, Ag -free) Connection cable Description Model Order no. - Page 10 ® Disposal SenTix Sp-T 900(-P) ba77091e02 02/2017...
- Page 12 For more information on how Xylem can help you, go to xyleminc.com. ® Service address: Xylem Analytics Germany Sales GmbH & Co. KG Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany Tel.: +49 881 183-325 Fax: +49 881 183-414 E-Mail wtw.rma@xyleminc.com Internet: www.WTW.com Xylem Analytics Germany GmbH Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany...
