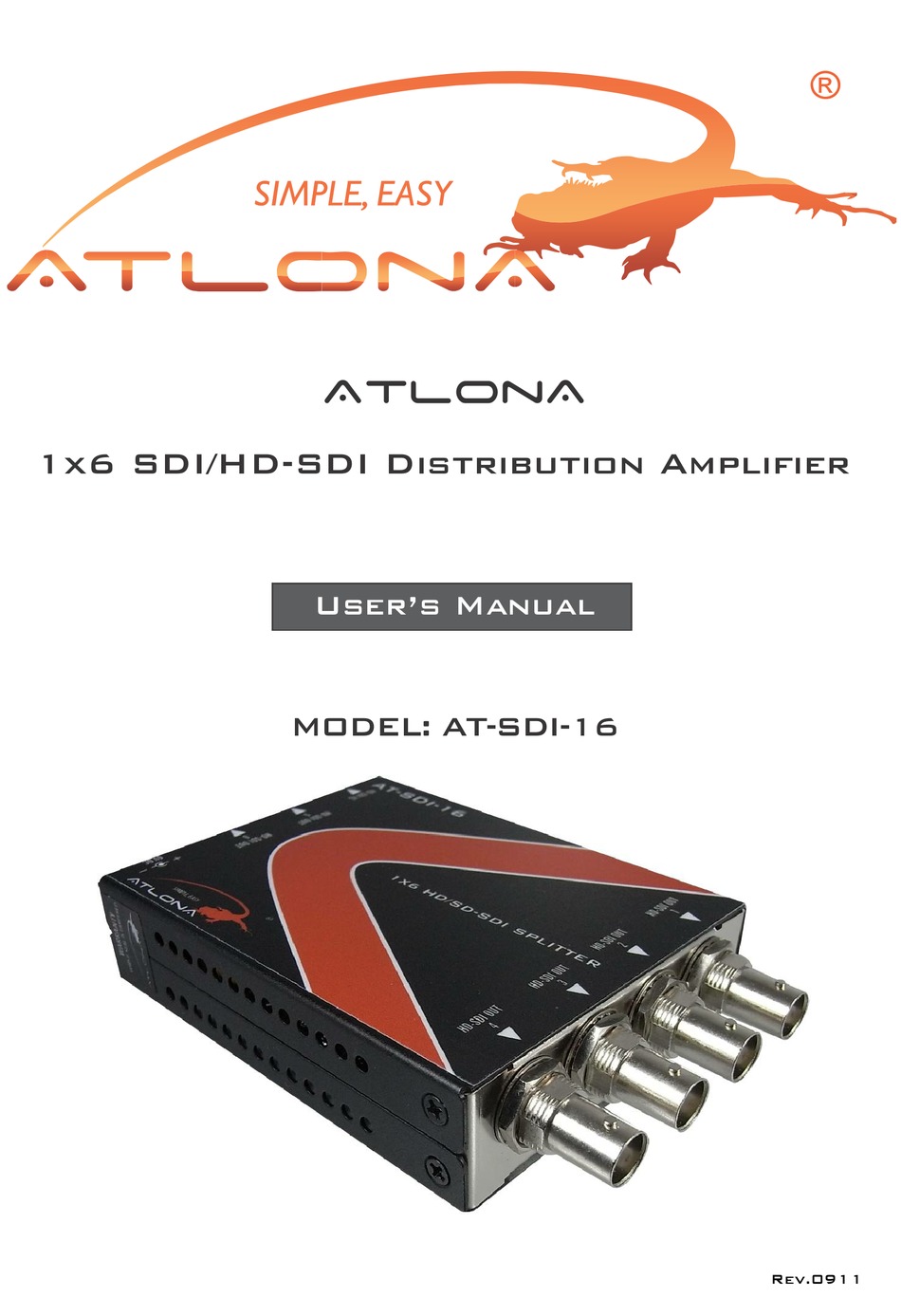

- Page 1 AtlonA 1x6 SDI/HD-SDI Distribution Amplifier User’s Manual MODEL: AT-SDI-16 Rev.0911...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ................. 1 2. Features ................ 3. Package Contents ................. 4. Specifications ................ 5. Panel Description ................. 6. Installation ............... 7. Safety Information ............... 8. Warranty ............... 6 9. Atlona Product Registration ..............7... -
Page 3: Introduction

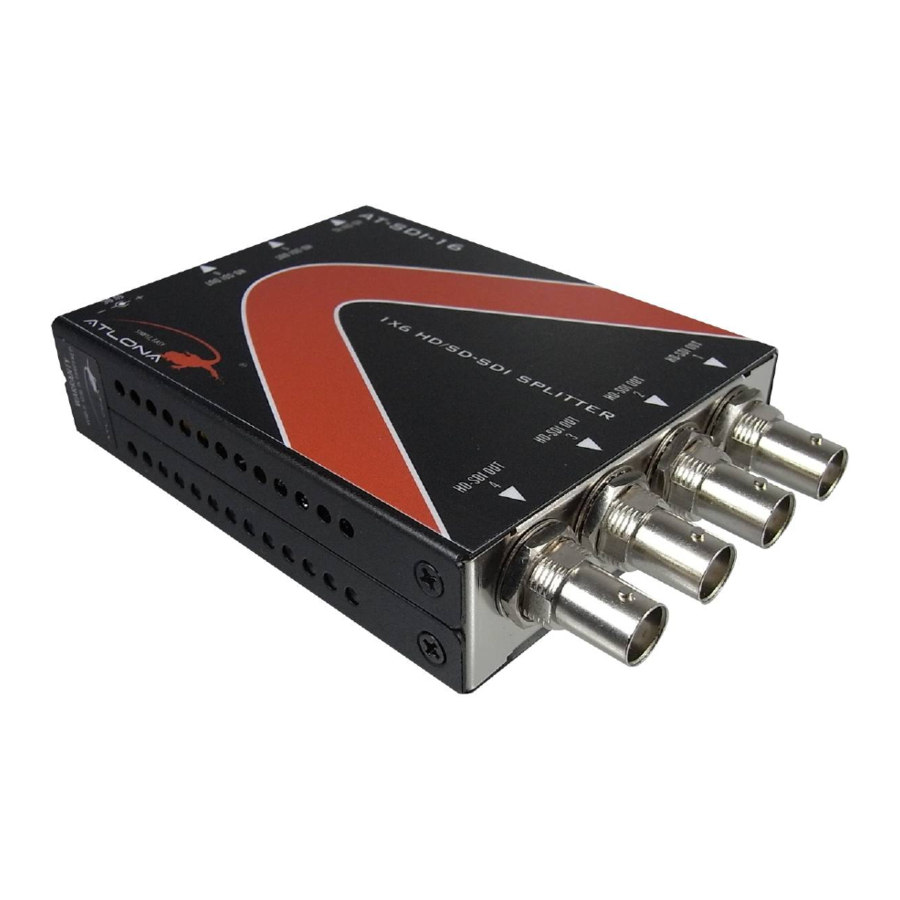

AT-SDI-16 is a high-performance distribution amplifier for SDI (SMPTE 259M and HD-SDI (SMPTE 292M) signals. It takes one input and distributes the signal to four identical outputs. The Atlona SDI/HD-SDI distribution amplifier can work with High Resolutions up to 1080p and full bandwidth up to 1.48Gbps. -
Page 4: Specifications
SPECIFICATIONS Model name AT-SDI-16 Technical SDI standards SDI & HD-SDI Auto SDI / HD-SDI detection SMPTE 259M, SMPTE 292M Supported protocols HDTV (1.485Gbps and 1.485/1.001Gbps) Video bandwidth 1.485Gpbs & 1.485/1.001Gbps Data rates 270 / 1483 / 1485 Mbps [HD] 720p50/59.94/60; 1035i50/59.94/60 1080i50/59.94/60, 1080p24/30... -
Page 5: Panel Description
PANEL DESCRIPTION PANEL DESCRIPTION AT-SDI-16 [Front Panel] 1. SDI / HD-SDI input 2. Reserved, not in use for this model. 3. HD/SD-SDI output 5 4. Power on/off indicator 5. HD/SD-SDI output 6 6. +5V DC power jack AT-SDI-16 [Rear Panel] 7. -
Page 6: Installation
It's not in use for AT-SDI-16. INSTALLATION 1. Connect a camera or other devices equipped with SDI / HD-SDI outputs to AT-SDI-16 HD/SD-SDI input. 2. Connect devices equipped with SDI / HD-SDI inputs (e.g. monitors or video processors) to AT-SDI-16 HD/SD-SDI outputs. -
Page 7: Safety Information
Attempting to do so could expose you to Precautions dangerous electrical shock or other hazards. It may also cause damage to your AT-SDI-16. FCC Regulations state that any unauthorized Opening the product will void the warranty. changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this... -
Page 8: Warranty
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. -
Page 9: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
