AUTOMATIC TRANSAXLE

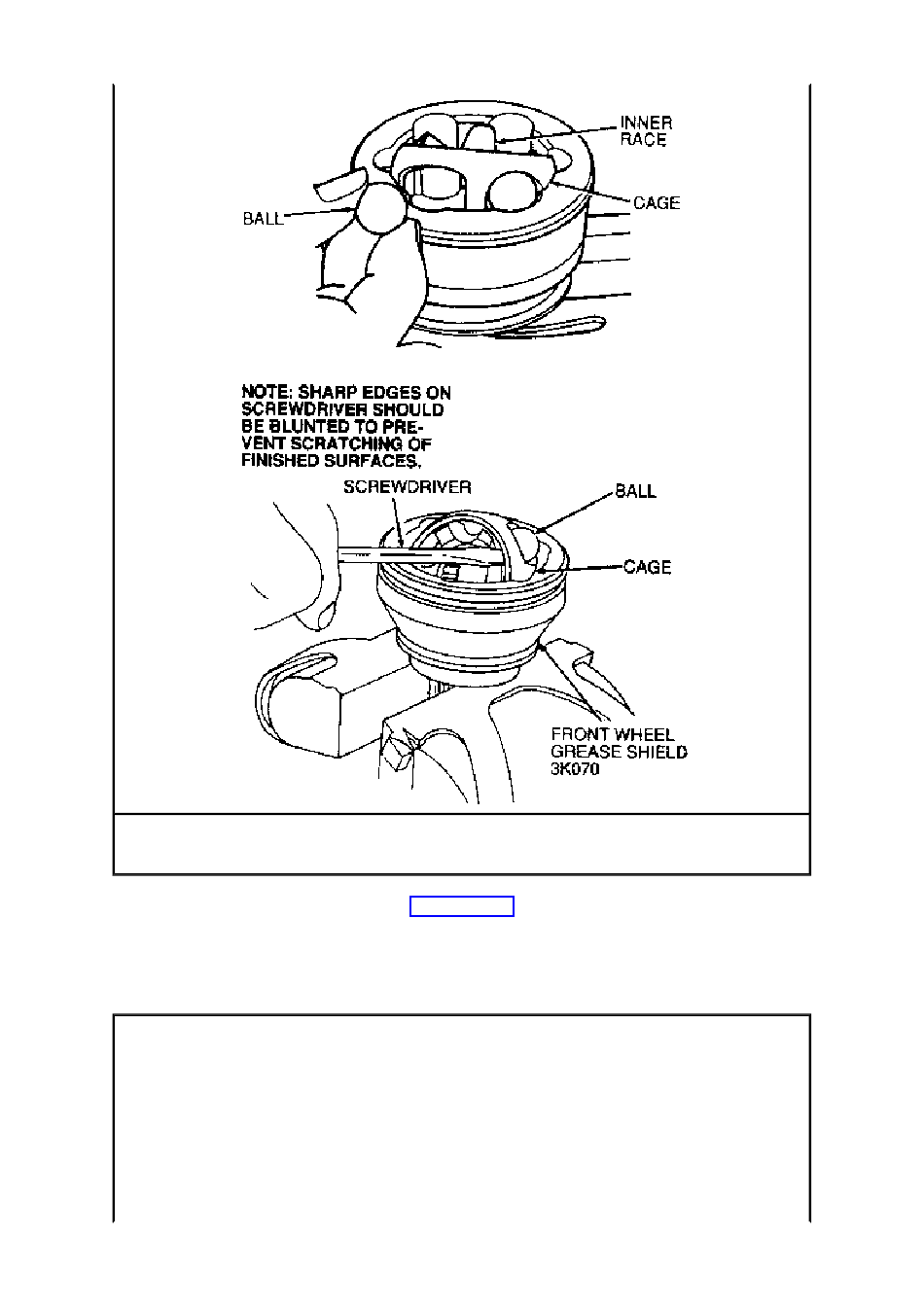

With the cage sufficiently tilted, remove a ball from the cage. Repeat this until all of the

balls are removed. If the balls are tight in the cage, use a blunt edged prytool to pry the

Pivot the cage and inner race assembly until it is straight up and down in the outer

race. Align the cage windows with the outer race lands while pivoting the bearing

http://www.chiltondiy.com/content/8687/8687_7_3.html

balls from the cage

Click to enlarge
