WHEELS
To install:
9. Install the tire and wheel assembly to the brake rotor or drum.
10. Install the lug nuts, then finger-tighten then is a crisscross pattern. Lower the
vehicle to the ground.
11. Cross-tighten the lug nuts to 85-105 ft. lbs. (115-142 Nm).
12. Align the hub cap/wheel cover with the tire valve and cap extension, matching the
hole in the cover (also identified on the backside of the wheel cover with the valve
stem logo). With the palm of your hand, hit on the outside edges of the cover until
it is snapped in place all the way around.
INSPECTION
Replace wheels if they are bent, dented, heavily rusted, have air leaks, elongated
bolt holes or excessive lateral and radial run-out.
Also inspect wheel lug nuts and be sure that they are tightened to specification.
Wheel Lug Studs/Hub Bolts
REPLACEMENT
1. Raise and safely support the vehicle.
2. Remove the wheel and tire assembly.
3. Remove the caliper and rotor. For details, please refer to the procedures located in
Section 9 of this manual.
4. Position the wheel hub bolt/stud to clear the steering knuckle.
5. Remove the bolt/stud from the wheel hub.
To install:
http://www.chiltondiy.com/content/8687/8687_8_1.html

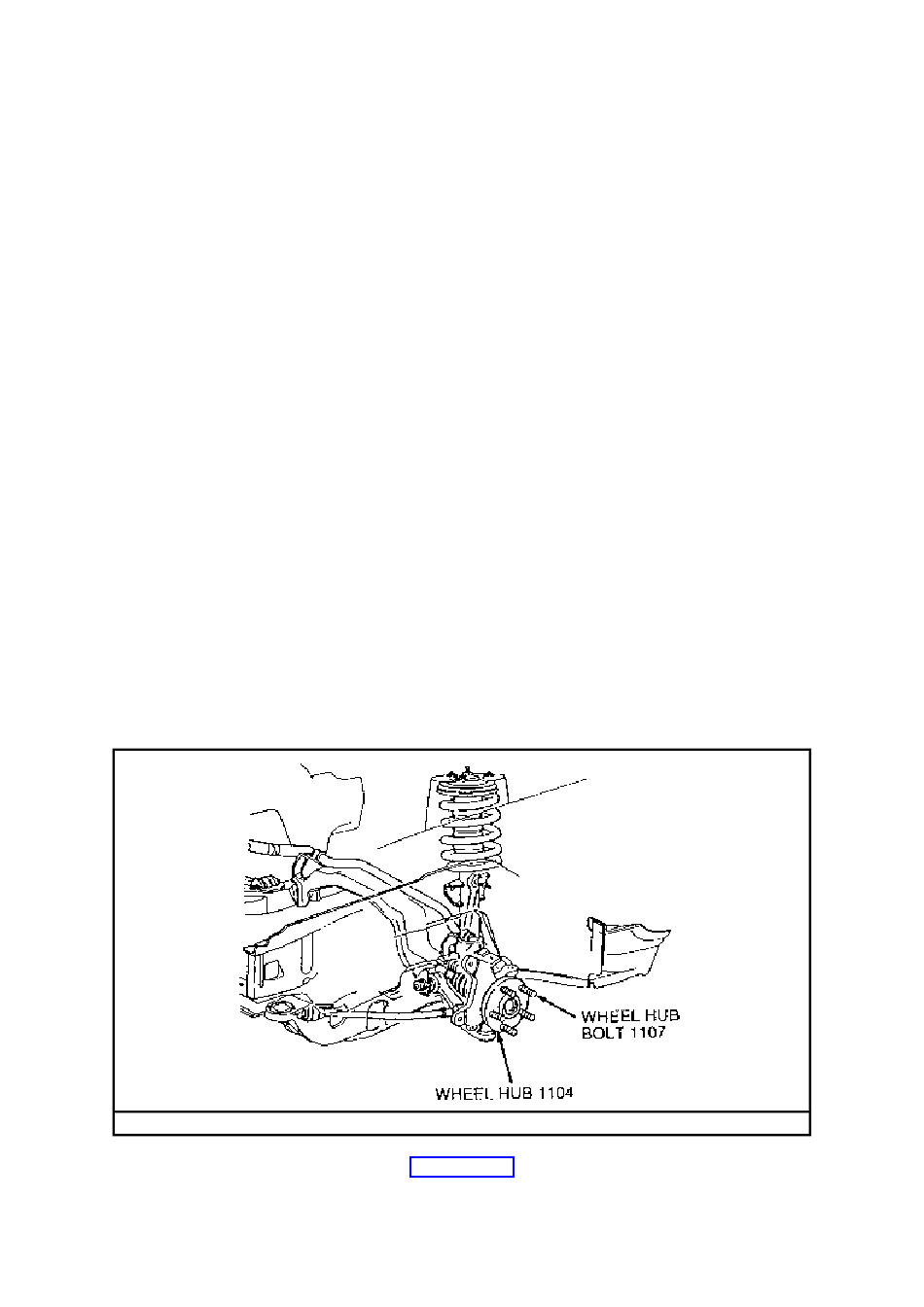

View of the wheel hub and hub bolts/studs
Click to enlarge
