AUTOMATIC TRANSAXLE

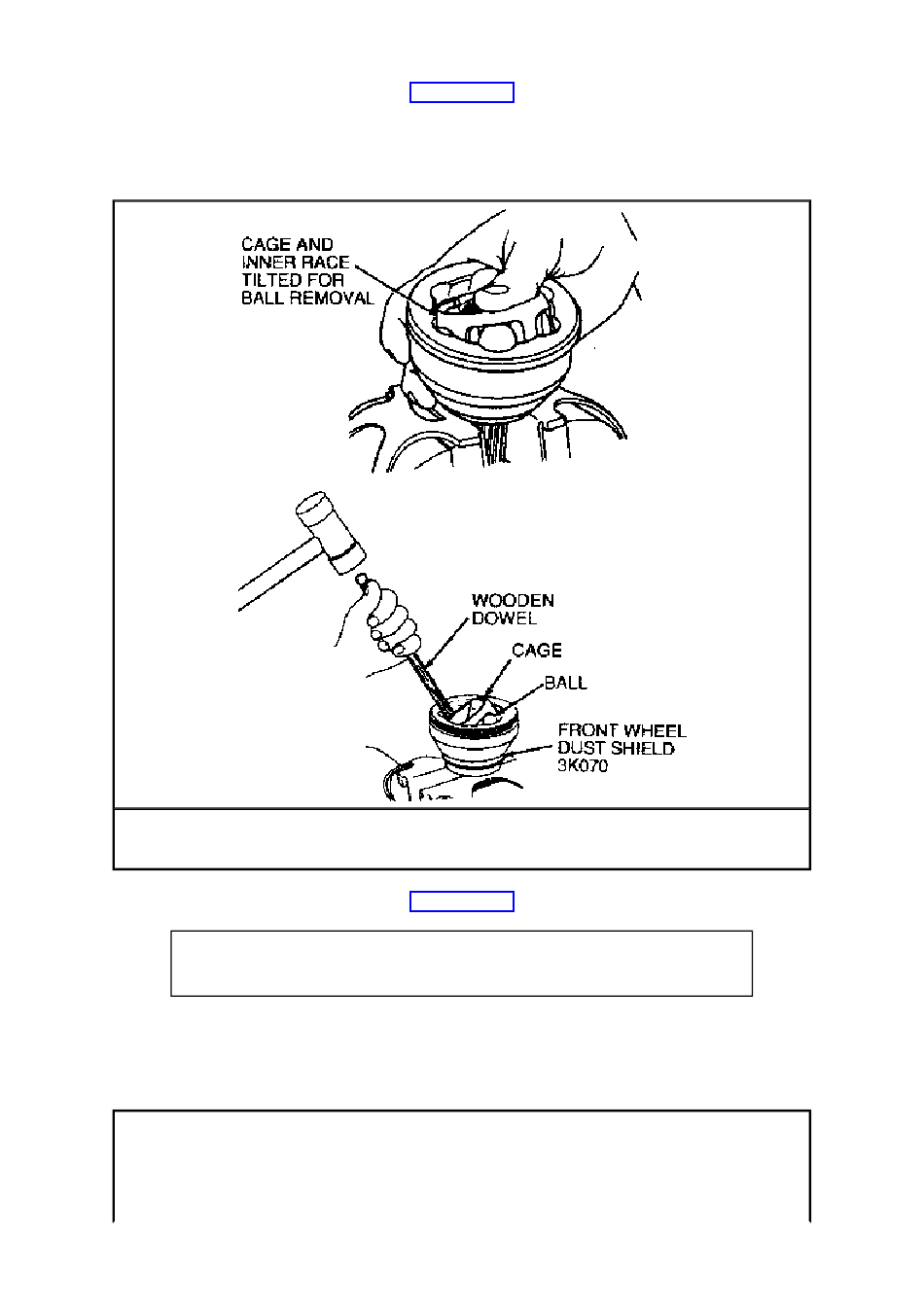

12. Press down on the inner race until it tilts enough to permit removal of the ball. A
tight assembly can be tilted by tapping the inner race with a wooden dowel and
hammer, but do not hit the cage.
Press down on the inner race until it tilts enough to permit removal of the ball. A tight
assembly can be tilted by tapping the inner race with a wooden dowel and hammer, but
Be careful not to scratch or damage the inner race or cage spheres.
13. With the cage sufficiently tilted, remove the ball from the cage. Repeat this until all
of the balls are removed. If the balls are tight in the cage, use a blunt edged prytool
to pry the balls from the cage.
http://www.chiltondiy.com/content/8687/8687_7_3.html
Click to enlarge
do not hit the cage
Click to enlarge
WARNING
