Repair Instructions
Assembly
24
Series 51 and 51-1 Bent Axis Motors Repair Instructions
6. Align ends of the retaining ring between the two bolt holes to allow clearance for speed sensor.
Speed sensors
7. Install O-rings (L85) and (L90) or gasket (L82).
8. Install main housing (B10). Ensure snap ring (L81) ends align with speed sensor port.
9. Install screws (L70).
10. Torque screws:
•
32 N•m [24 lbf•ft] for 60 cc and 80 cc
•
63 N•m [46 lbf•ft] for 110 cc
•
110 N•m [81 lbf•ft] for 160 cc
11009449 • Rev BA • December 2014

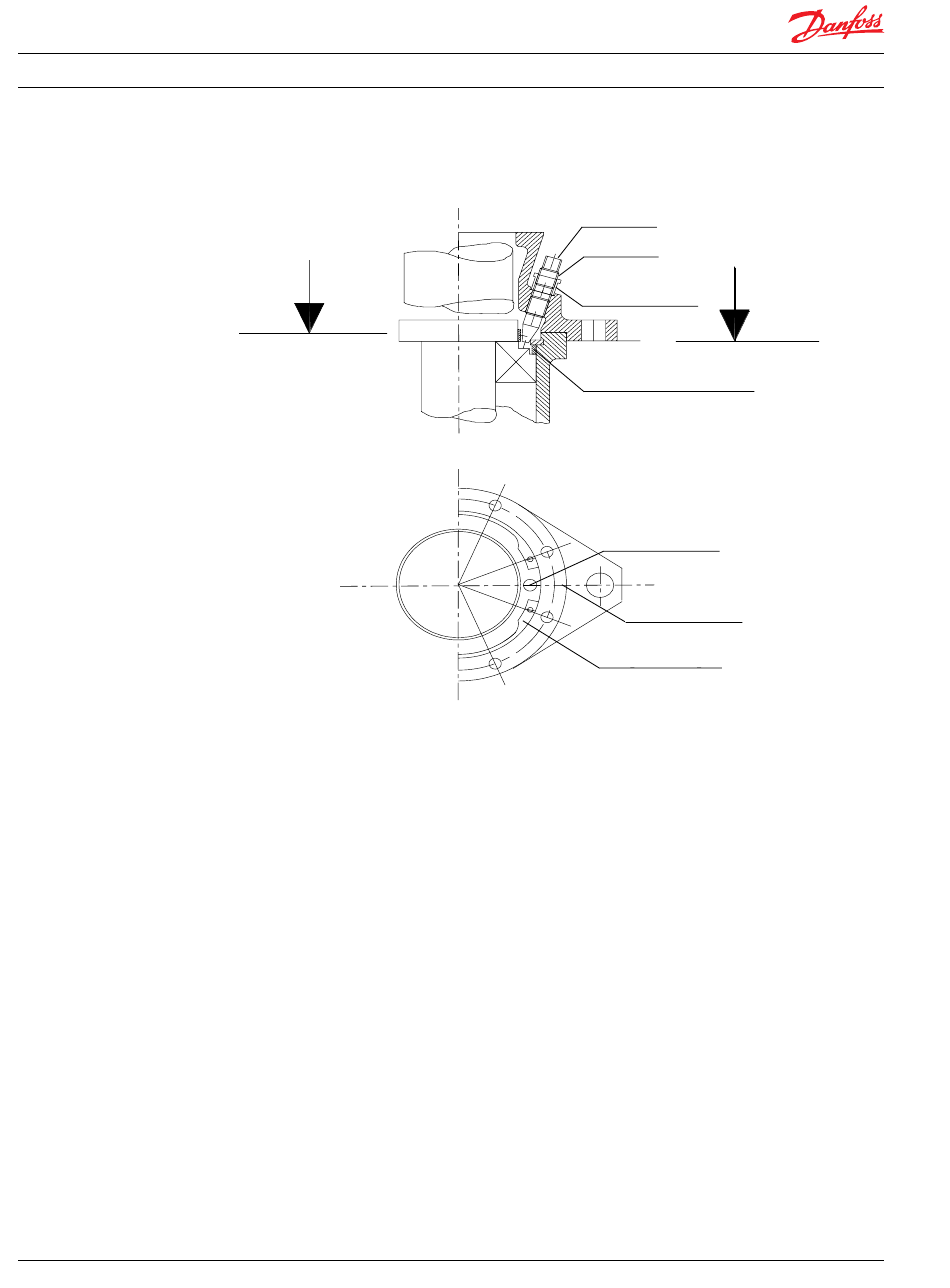

speed sensor
Notch
Locking nut
Spacer ring
Sensor
Axial notch on speed sensor
Retaining-ring (L81)
P104 100
