13 - 2 FRAME & BUMPERS
FRONT BUMPER
REINFORCEMENT

REMOVAL

(1) Remove front bumper fascia. (Refer to 13 -
FRAME & BUMPERS/BUMPERS/FRONT FASCIA -
REMOVAL).
(2) Support front bumper reinforcement on a suit-
able lifting device.
(3) Remove the three bolts attaching front bumper
reinforcement to frame rail (Fig. 1).
(4) Remove front bumper reinforcement from vehi-
cle.

INSTALLATION

(1) Place front bumper reinforcement into position
on vehicle.
(2) Install the three bolts attaching front bumper
reinforcement to frame rail and tighten to 20 N·m
(15 ft. lbs.). (Fig. 1).
(3) Install front bumper fascia. (Refer to 13 -
FRAME & BUMPERS/BUMPERS/FRONT FASCIA -
INSTALLATION).

FRONT FASCIA

REMOVAL
(1) Release hood latch and open hood.
(2) Remove the headlamp assemblies (Refer to 8 -
ELECTRICAL/LAMPS/LIGHTING
HEADLAMP - REMOVAL).
1 - PUSH PINS (4)
2 - ATTACHING SCREW

3 - FRONT BUMPER REINFORCEMENT

1 - ATTACHING SCREW(S)
2 - RAIL ASSEMBLY
3 - BUMPER REINFORCEMENT
(3) Hoist vehicle and support with safety stands,
as necessary.
(4) Remove the four screws attaching bottom of
fascia/air dam to radiator closure panel (Fig. 2).
NOTE: The whole front splash shield does not need
to be removed.
- EXTERIOR/
(5) Remove three screws attaching front fascia to
front splash shield on each side. (Refer to 23 - BODY/
Fig. 2 FRONT FASCIA
4 - FASCIA TO FENDER ATTACHING SCREW
5 - FASCIA ATTACHING SCREWS

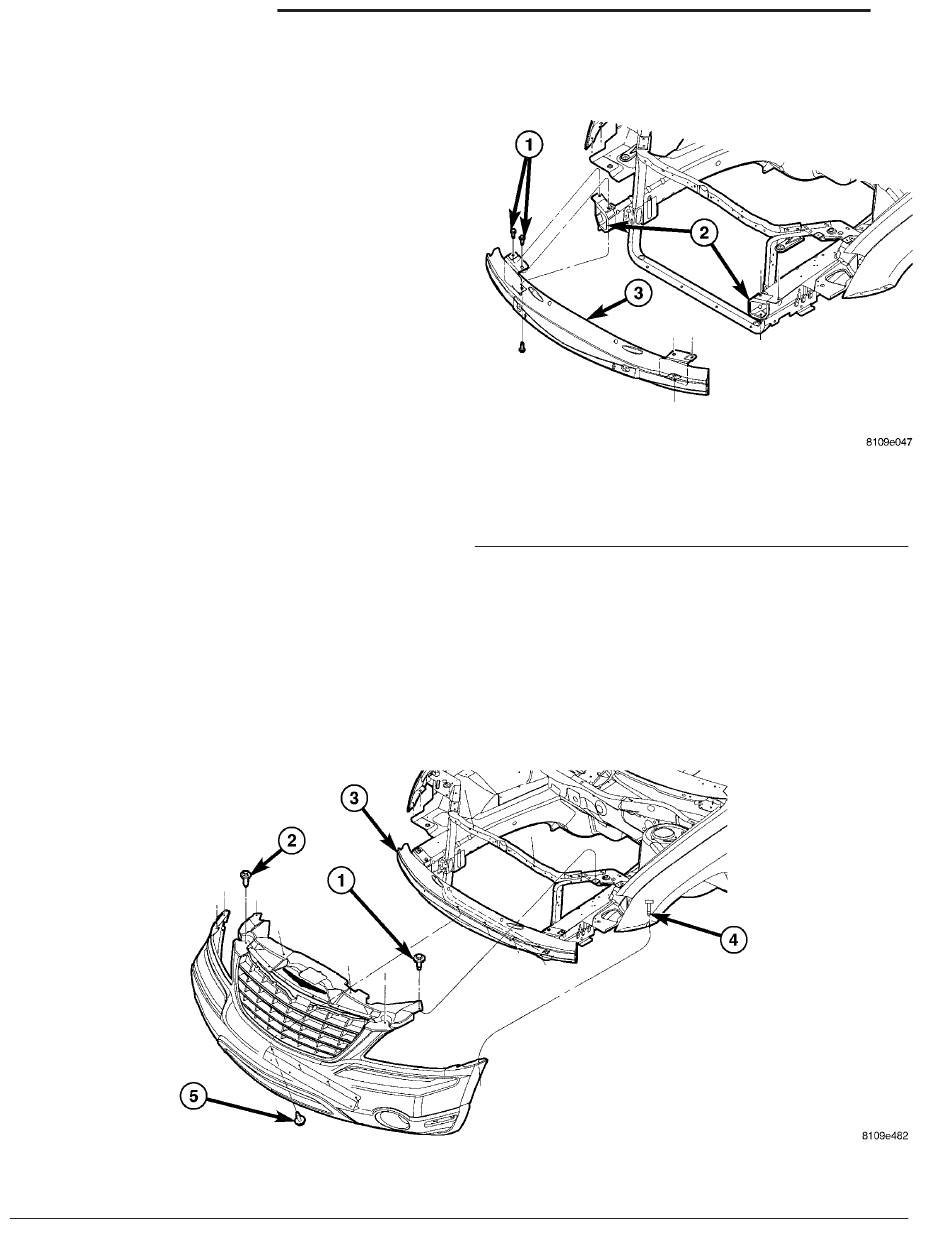

Fig. 1 FRONT BUMPER REINFORCEMENT
CS
