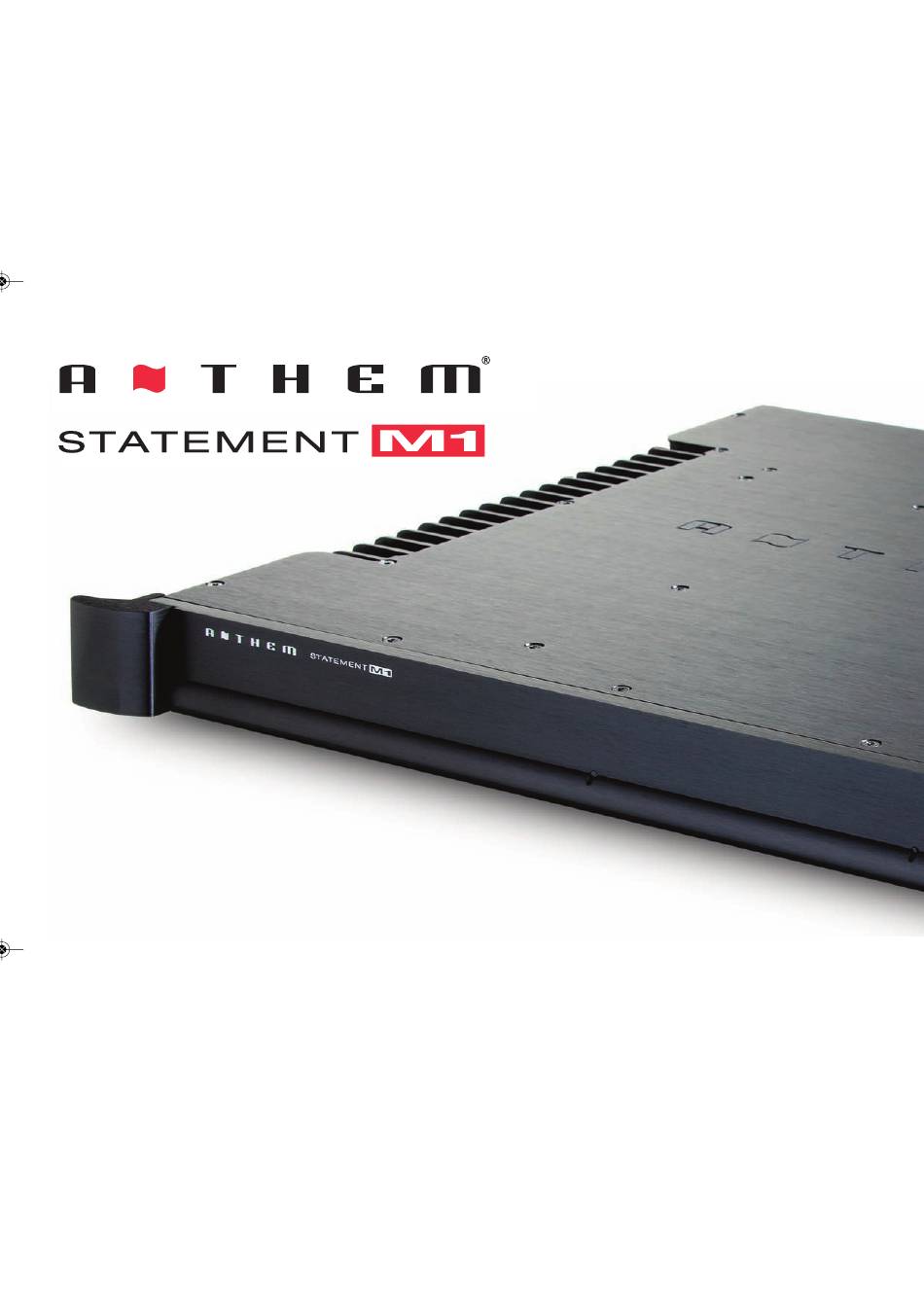

- Page 1 OPERATING MANUAL...
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS READ THIS SECTION CAREFULLY BEFORE PROCEEDING! The lightning flash with arrowpoint within an equilateral CAUTION triangle warns of the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of RISK OF ELECTRIC SHOCK sufficient magnitude to constitute a risk of electric DO NOT OPEN shock to persons. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where 2. Keep these instructions. they exit from the apparatus. 3. Heed all warnings. 11. - Page 5 WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Avoid installing this unit where foreign objects may fall onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place: •...
- Page 6 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 7 IMPORTANT INFORMATION FOR UK CUSTOMERS: DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.
- Page 8 For this reason Paradigm Electronics Inc. (the manufacturer of Paradigm speakers and Anthem electronic products) has arranged with its distributors in European Union member nations to collect and recycle this product at no cost to you. To find your local distributor please contact the dealer from whom you purchased this product or go to our website at www.paradigm.com.

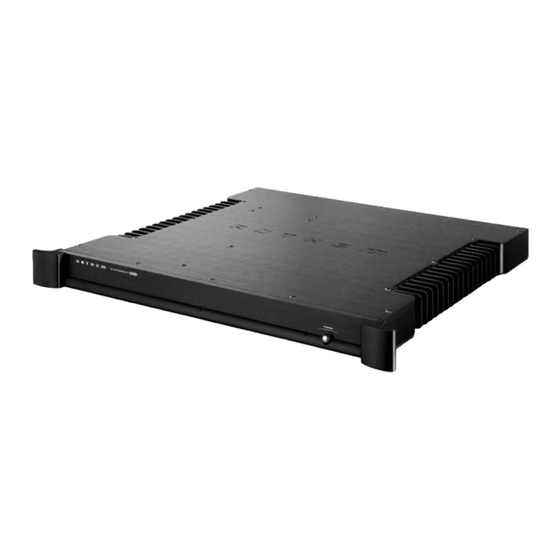

- Page 9 Thank you for purchasing Anthem Statement M1 Power Amplifier. All Anthem products are engineered to recreate the passion of a live musical performance and emotional involvement experienced in the best movie theaters by utilizing the highest level of circuit design, superior parts and manufacturing techniques, innovative features, and intuitive ergonomics.
-
Page 10: Before Making Connections
Check that you have received everything on the packing list and report discrepancies to your dealer as soon as possible. Retain the packing materials and the invoice that you received from your authorized Anthem dealer at time of purchase – without it, service will not be provided under warranty. -
Page 11: In-Use Notices
• Failing to comply with any safety instruction, precaution, or warning in this manual is in violation of the intended use of the product. • Anthem and any related party assume no liability for the user’s failure to comply with requirements. -
Page 12: Connections And Operation
2. CONNECTIONS AND OPERATION 2.1 INPUT CONNECTIONS Balanced XLR connection offers the highest transmission quality, particularly over long cable lengths, because it rejects noise and hum pickup. If using the XLR input, set the input switch to the 0 dB position if your preamplifier’s XLR outputs are at normal line level, or to the -6 dB position if your preamplifier’s XLR outputs are at 2x line level. - Page 13 2. CONNECTIONS AND OPERATION continued) 2.3 ON MODES With the three-way switch located on the rear panel, you can set the way the amplifier is turned on and off. To use Trigger-On, connect a standard 3.5mm (.125”) mono mini plug cable between the amplifier and the preamplifier or control component. Once all other connections are made, connect the power cord to the amplifier and then the wall outlet.
-
Page 14: Front And Rear Panels
2. CONNECTIONS AND OPERATION continued) 2.4 FRONT AND REAR PANELS 1 Handles (rackmounts provided in accessory box) 2 Power LED 3 Status LED 4 Power button... - Page 15 2. CONNECTIONS AND OPERATION continued) 2.4 FRONT AND REAR PANELS (continued) XLR (BALANCED) (5-24 VDC) TRIGGER ON MODE O U T M A N UA L DESIGNED, ENGINEERED AND MANUFACTURED IN CANADA CIRCUIT BREAKER: SONIC FRONTIERS INTERNATIONAL PUSH TO RESET 120- 240V 50/60Hz WARNING: BOTH SPEAKER TERMINALS ARE ACTIVE.
- Page 16 3. LED INDICATION CODES Power LED: This is on when the amplifier is operating normally and off at all other times. Status LED: Normal brightness indicates operate mode. If the M1 detects a problem, the amplifier output will turn off for 12 seconds* and the LED will flash a number of times, pause for 2 seconds, and repeat the flash cycle to allow the user to count the number of flashes per cycle before the power button is pressed twice.
- Page 17 3. LED INDICATION CODES continued) 4 flashes: Temperature exceeds limit. Make sure there is adequate ventilation. The amp will resume operation only once internal temperature drops within acceptable range (4 degrees Celsius less than fault). 6 flashes: Average input current exceeds limit. This fault is activated to avoid nuisance AC input interruption. This condition can occur if two or more speakers are connected in parallel.
-
Page 18: Specifications
SPECIFICATIONS Power Output continuous, 20 Hz to 20 kHz, <0.1% THD+N ......................................1000 W With 120V AC supply the amplifier’s maximum output into impedances 4 and lower, as well as its maximum duration, vary depending on line voltage regulation. Frequency Response 20 Hz to 20 kHz open circuit ....................................+/- 0.1 dB ......................................+/- 0.1 dB Power Bandwidth 1000 W at 8... - Page 19 SPECIFICATIONS continued) Voltage Gain 29 dB Input Sensitivity ......................100 mV for 1 W output, 3.2 V for 1000 W output (8 ) Input Impedance ..............................10 k (RCA), 20 k (XLR) Damping Factor............................800 to 1400 depending on frequency XLR Configuration........................Pin 1: Ground, Pin 2: Positive, Pin 3: Negative POWER REQUIREMENT Consumption in a typical music/theater installation standby mode, 120V mains................................<1 W...
- Page 20 SPECIFICATIONS continued) Where mains voltage is 120V, one dedicated 15A circuit per amplifier is recommended depending on speaker. A 20A circuit is adequate for two amplifiers playing music where speaker impedance is 8 . This product operates from a single phase AC power source that supplies between 108V and 264V at a frequency of 50 or 60 Hz. DIMENSIONS Height with feet................................2 inches (5.7 cm)
-
Page 21: Limited Warranty
6 months: Projector lamps The warranty period begins on the date of purchase from Anthem or an Authorized Anthem Dealer. If Anthem determines that the product has a defect in materials or manufacturing during the warranty period Anthem will at its option repair, replace or provide the necessary replacement parts without charging for parts or labor. - Page 22 A Return Authorization (RA) number must be obtained from Anthem Technical Support before a product can be shipped to Anthem for any reason. Product shipped to Anthem without its RA Number clearly visible on the outside of the shipping carton will be refused and returned to the sender, freight collect.
- Page 23 NOTES...
- Page 24 NOTES...
