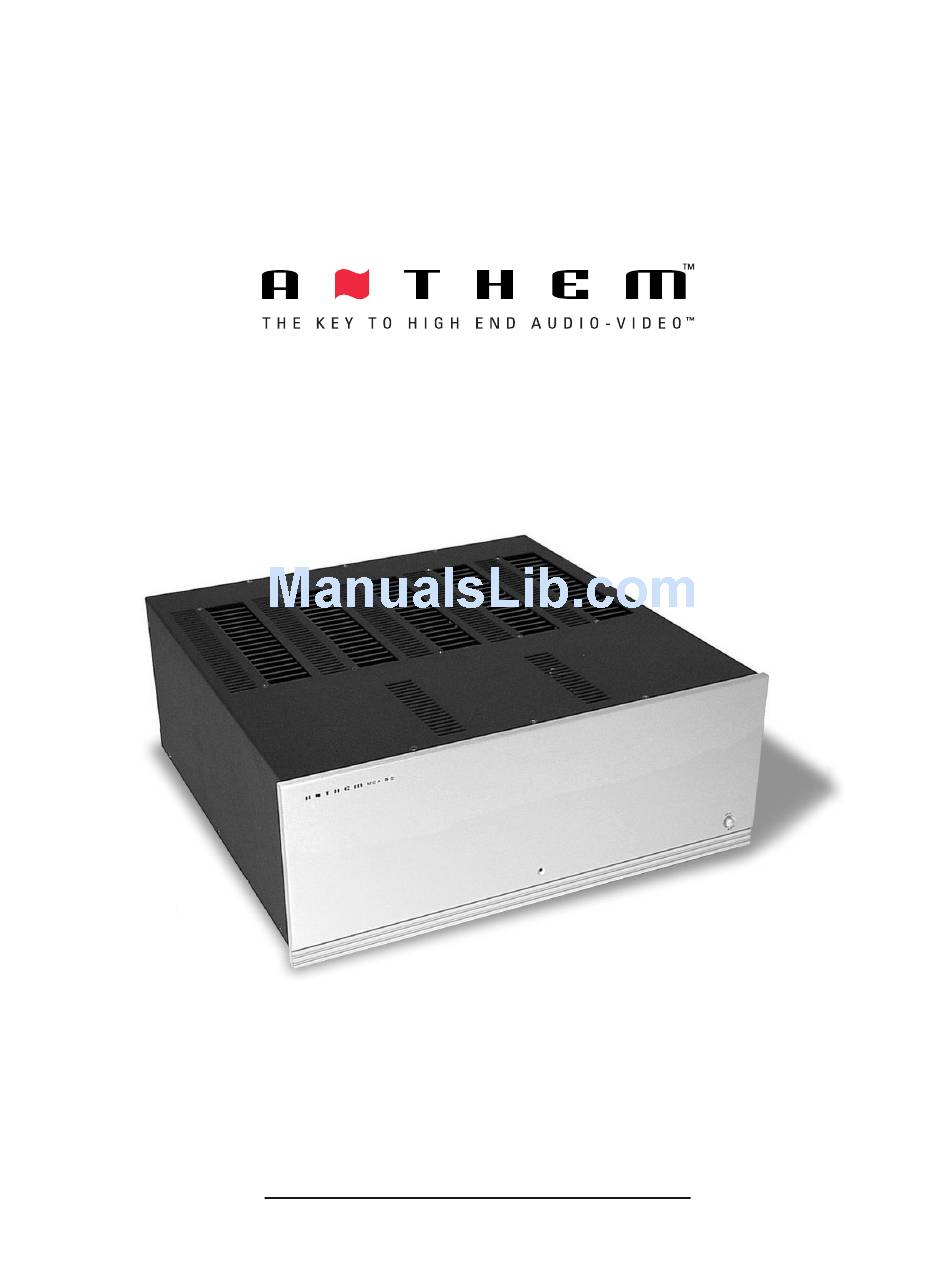

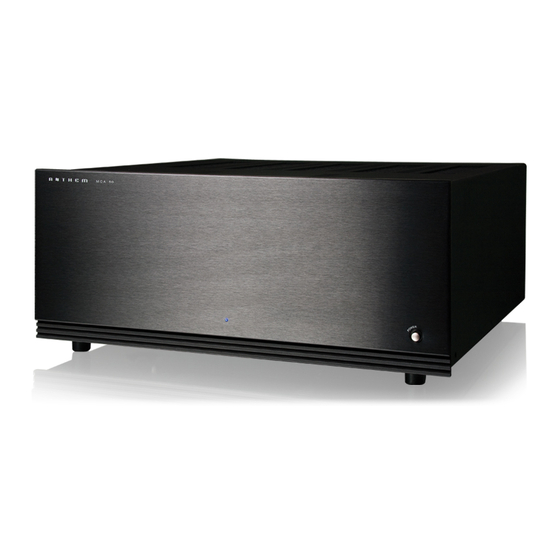

  • Page 1 M C A 2 0 / 3 0 / 5 0 A M P L I F I E R S O P E R A T I N G M A N U A L...
  • Page 2 DEAR VALUED CUSTOMER, We at Sonic Frontiers International hope you will derive many years of listening pleasure from your new multi-channel Anthem MCA Series Amplifier. This Operating Manual contains important information regarding the operation and care of your MCA Series Amplifier.
  • Page 3 M C A F I G U R E 1 MCA 20/30/50 front panel. M C A WARNING RISK OF HAZARDOUS ENERGY! MAKE PROPER SPEAKER CONNECTIONS. SEE OPERATING MANUAL BEFORE USING. F I G U R E 2 MCA 20 rear panel.
  • Page 4 The 3.5mm (.125”) mini-jack INPUT receives a 5-24V AC/DC trigger signal from an upstream component (preamplifier, surround sound processor such as the Anthem AVM 20, or system controller), and delivers the same trigger signal through the OUTPUT to other system components.
  • Page 5 Connect loudspeakers to the appropriate post as described If a problem still persists, please contact your authorized in the Speaker Connection Posts section above. Anthem Dealer directly. The remaining input signal connection is made with PACKING MATERIALS connectors from a suitable Preamp or SSP such as the Please retain all of the packing material and shipping boxes Anthem AVM 20.
  • Page 6 MCA 30 3 Single-Ended, 3 Balanced, 1 Relay Trigger (3.5 mm Mono Jack) MCA 50 5 Single-Ended, 5 Balanced, 1 Relay Trigger (3.5 mm Mono Jack) MCA 20 2 Pairs Speaker Binding Posts, 1 Relay Trigger (3.5 mm Mono Jack) OUTPUTS MCA 30 3 Pairs Speaker Binding Posts, 1 Relay Trigger (3.5 mm Mono Jack)

  • Page 7: Disclaimer Of Liability

    If a problem or defect is discovered in your Anthem MCA On the expiration of the warranty period all liability of SFI in Series Amplifier, please contact your Authorized Anthem connection with the product shall terminate.
  • Page 8 D E S I G N E D A N D M A N U F A C T U R E D S O N I C F R O N T I E R S I N T E R N A T I O N A L 3 5 3 5 L A I R D R O A D , U N I T # 1 6 , M I S S I S S A U G A , O N T A R I O , C A N A D A L 5 L 5 Y 7...

This manual is also suitable for:

Mca 30Mca 50
