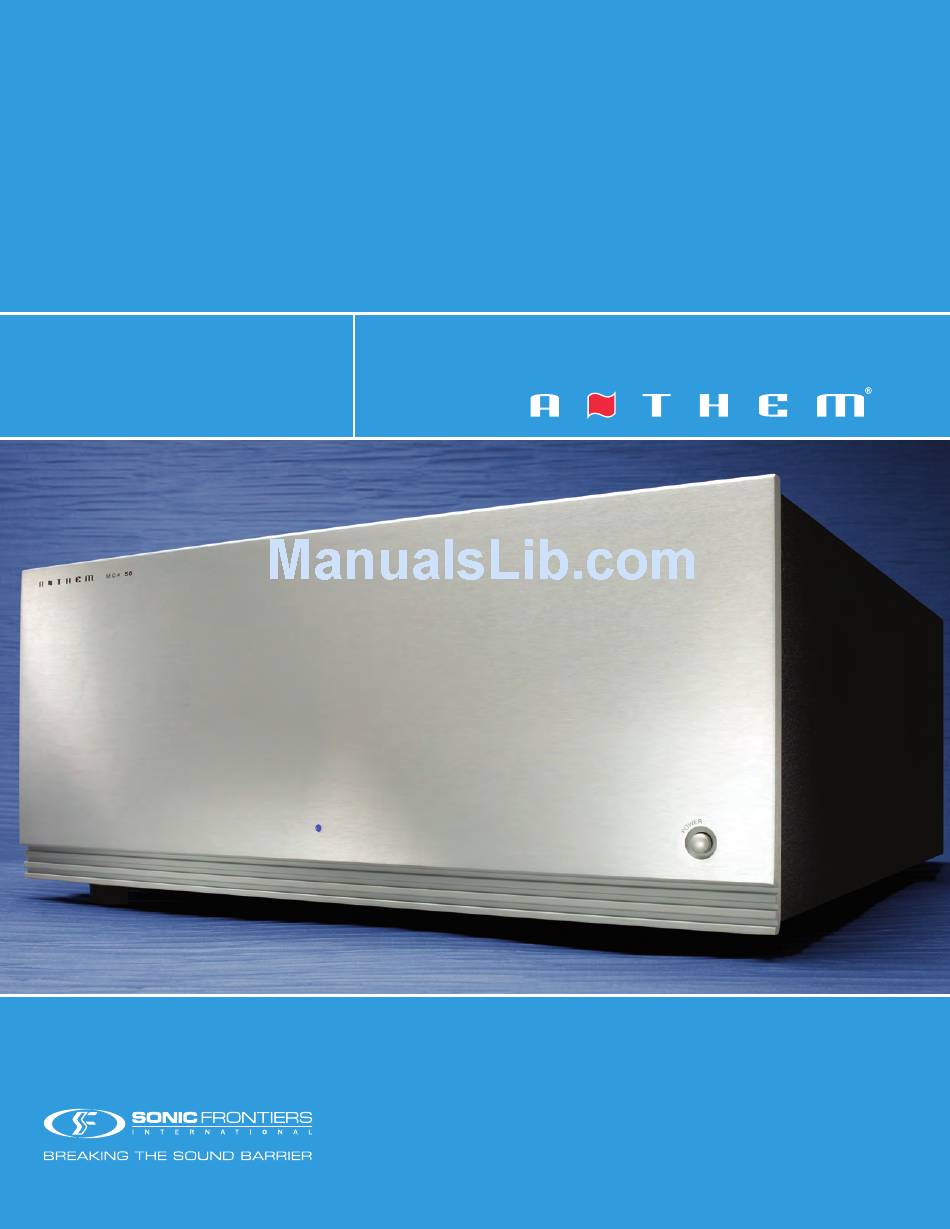

- Page 1 MCA SERIES OPERATING MANUAL w w w . a n t h e m A V . c o m ™...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS READ THIS SECTION CAREFULLY BEFORE PROCEEDING! WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowpoint within an equilateral triangle warns of the presence of uninsulated “dangerous voltage”... - Page 3 8. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
- Page 4 For this reason Paradigm Electronics Inc. (the manufacturer of Paradigm speakers and Anthem electronic products) has arranged with its distributors in European Union member nations to collect and recycle this product at no cost to you. To find your local distributor please contact the dealer from whom you purchased this product or go to our website at www.paradigm.com.

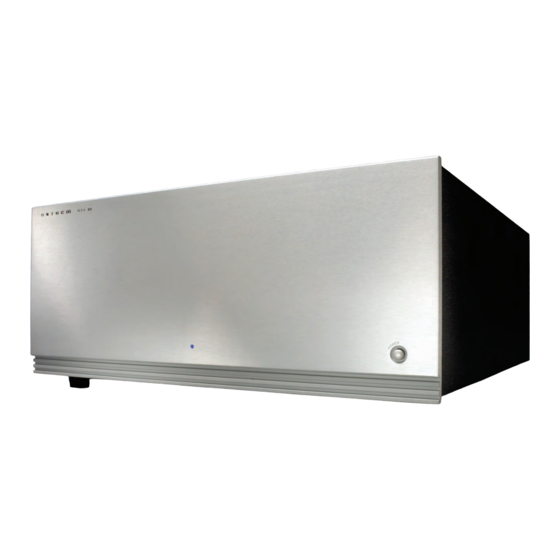

- Page 5 Thank you for purchasing the Anthem MCA Power Amplifier. MCA series amplifiers are made in 2, 3, and 5-channel versions. Anthem products are engineered to recreate the passion of a live musical performance and thrill of the best movie theaters by using the highest level of circuit design, superior build quality, innovative features, and intuitive ergonomics.
-
Page 6: Connections And Operation
2. CONNECTIONS AND OPERATION INPUT CONNECTIONS Balanced XLR connection offers the highest transmission quality, particularly over long cable lengths, because it rejects noise and hum pickup. Note that if an RCA plug is inserted into the RCA jack, that channel’s XLR input is disabled. -
Page 7: Rear Panel Layout
2. CONNECTIONS AND OPERATION continued … REAR PANEL LAYOUT M C A M C A WARNING WARNING RISK OF HAZARDOUS ENERGY! MAKE PROPER SPEAKER CONNECTIONS. SEE OPERATING MANUAL BEFORE USING. RISK OF HAZARDOUS ENERGY! MAKE PROPER SPEAKER CONNECTIONS. SEE OPERATING MANUAL BEFORE USING. MCA 20 MCA 30 M C A... -
Page 9: Specifications
SPECIFICATIONS Power Output (Continuous RMS, 20 Hz to 20 kHz, <1.0% THD). MCA 20: One Channel Driven (8 , 4 , 2 )..... . 225 W, 370 W, 535 W All Channels Driven (8 , 4 , 2 ) . -
Page 11: Limited Warranty
Anthem shall have no obligation to correct any defect that is not reproducible by Anthem. If inspection by Anthem discloses that the repair required is not covered by this warranty, regular repair charges shall apply. - Page 12 D E S I G N E D A N D M A N U F A C T U R E D I N N O R T H A M E R I C A t e l . ( + 1 ) 9 0 5 - 3 6 2 - 0 9 5 8 M - F 9 : 0 0 a m - 5 : 3 0 p m ( E T ) w w w .
