Summary of Contents for Anthem Integrated 1

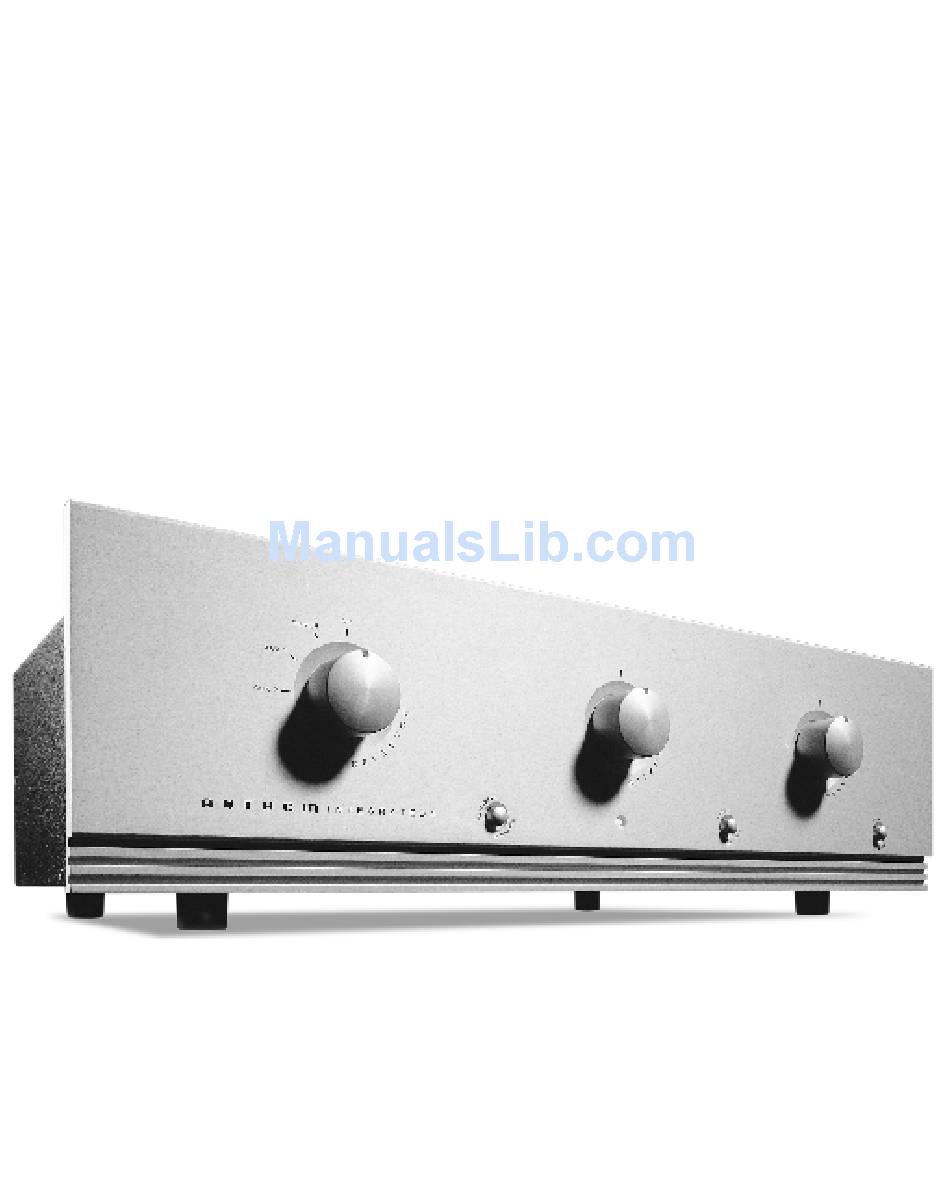

- Page 1 A N T H E M I N T E G R A T E D 1 O P E R A T I N G M A N U A L...
- Page 2 We at Sonic Frontiers hope you will derive many years WHAT’S IN THE BOX? of listening pleasure with your new Anthem Integrated 1. In addition to the Integrated 1, it’s cover, and the oper- This Operating Manual contains important information ating manual you are presently reading (with associated regarding the operation and care of the Integrated 1.
- Page 4 C O N T R O L F U N C T I O N S SELECTOR S WIT CH L E D This knob is rotated to select a Line Level Input (L) or When the LED is lighted the Integrated 1 is “ON”, the optional Phono Input (O).
- Page 6 Selector Switch (A). Sonic Frontiers or Anthem dealer, distributor or the factory directly. LINE L EVEL INPUTS F OR CD , TUNER AND AU XILIAR Y SOURCES...
- Page 7 OPTIONAL PHONO INPUT AND G RO UND CONNECT IO N This input is designed to replace the AUX 2 line level input when the optional phono input module is installed. This extra amplification stage provides addi- tional gain when dealing with sensitive signals from moving magnet phono cartridges.
- Page 8 1 2 AT 7 (V3 ) FIRST STAGE AMPLIF ICATION TUBE EL84 (LV4,5 ,6,7 & V4,5,6,7) POW ER TUBES The first stage of amplification in the amplifier section of These tubes provide the last stage of amplification, set up the Integrated 1 is achieved through the use of this dual in push/pull pairs (4 tubes per channel, two per phase).
- Page 9 O P E R A T I O N IN SE RTION OF THE T UB ES 1. Using the screwdriver supplied, remove the cover of the Integrated 1. For your convenience, only two of the Before plugging in the Integrated 1, check to see that the screws are installed at the factory.
- Page 10 or the Integrated 1. has blown, the thin metal conductor will have melted and the glass may appear “smoked”. If the fuse has blown, replace To record from a source, place the Tape/EPL-Source but- with a fuse of the same rating (2.5 Amp/250V slo-blo for 100 ton (D) in the SOURCE position, select the source material to 120 volt countries and 1.25 Amp/250V slo-blo for 200 to you wish to record via the Selector Switch (A), and com-...
- Page 11 BREAK-IN T IME PACKING MAT E R I A L S As with all audio electronic products, the ultimate sonic Please retain all of the packing material and shipping boxes character of the Integrated 1 will not be realized until and for your Integrated 1.
- Page 12 4. Sonic Frontiers, Inc. shall not be responsible in any way for consequential or indirect damages or liabilities resulting from the use and operation of the product covered herein or resulting from any breach of this warranty or any implied warranty relating to said product. During this period, Sonic Frontiers, Inc.
- Page 13 T E C H N I C A L S P E C I F I C AT I O N S P R E A M P L I F I E R S P E C I F I C AT I O N S (AC line set at 117V 60Hz) Line Level Inputs to Pre Outputs CD, Tuner, Aux 1, Aux 2/Phono, Tape...
- Page 14 D E S I G N E D A N D M A N U F A C T U R E D S O N I C F R O N T I E R S I N C O R P O R A T E D 2 7 9 0 B R I G H T O N R O A D , O A K V I L L E , O N T A R I O , C A N A D A L 6 H 5 T 4 T E L : ( 9 0 5 ) 8 2 9 - 3 8 3 8...
