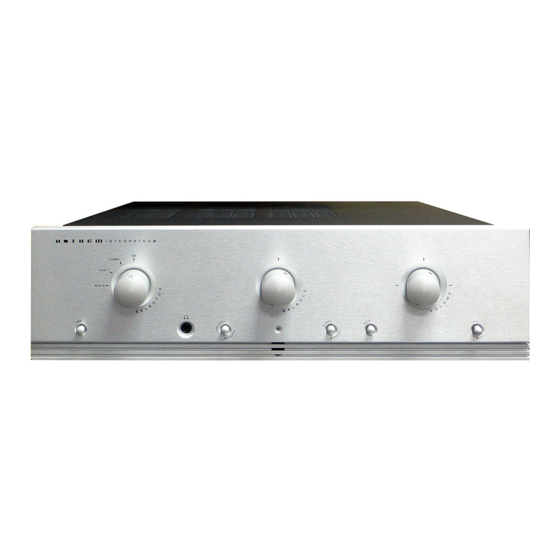

Anthem Integrated 2 Owner's Manual

H N I C A L S P E C I F I C A T I O N S
TS (6): CD, Tuner, Aux 1, Aux 2/Phono, Tape, SSP
PUTS (4): Tape, Preamplifier, Main Power Amplifier,
tereo Headphone Jack
TROLS (3): Input Select, Balance, Volume
CHES (5): SSP, Tape/EPL (External Processor
, Mono/Stereo, Mute/Operate, Power On/Off
COMPLEMENT: 2-6DJ8/6922
ER REQUIREMENTS: 100-120VAC 60Hz (Export
40VAC 50/60Hz) - 400VA
NSIONS: 19" (48 cm) W x 5.25" (13.5 cm) H x 16"
m) D, Knobs extend 3/4" (1.9 cm) forward of panel
WEIGHT: 38 Ibs, (17.2 kg) - unpacked
G R ATED AMPLIFIER SPECIFICAT I O N S
D POWER: 90 Watts (25.5Vrms) into 8 ohms -
uous; or 145 Watts (23Vrms) into 4 ohms; both
els driven 20Hz to 20kHz @ <1% THD&N
UENCY RESPONSE: -0.5dB 20Hz to 35kHz
); -3.0dB 10Hz to 95kHz (@ 1W)
AL TO NOISE RATIO: -95dB (A-weighted ref 80W
power); -90dB (Unweighted ref 80W rated power)
&N: 0.1% 1kHz @ rated power,
% 30Hz to 15kHz @ rated power,
8Hz to 23kHz @ rated power
SE: Non Inverting
T IMPEDANCE: 40k ohms (Line level inputs)
39dB
ITIVITY: 280mV input for rated power, 8 ohms
me control @ maximum)
PREAMPLIFIER SP ECIFICATIONS
(Line Level Inputs to Pre Outputs)
INPUT IMPEDANCE: 40k ohms (line level inputs)
OUTPUT IMPEDANCE: 150 ohms (minimum required
load: 10k ohms)
FREQUENCY RESPONSE: -0.5dB 20Hz to 90kHz,
-3.0dB 1Hz to 200kHz
SIGNAL TO NOISE RATIO: -90dB (Unweighted ref 1V
@ Pre Out); -95dB (A-weighted ref 1V @ Pre Out)
THD&N: 0.01% 10Hz to 50kHz
(Ref 1V @ Pre Out)
PHASE: Non Inverting
GAIN: 15dB (5.7x)
POWE R A MPLIFI ER SPECIFICAT I O N S
(SSP Input(s) to Main Speaker Output)
RATED POWER: 90 Watts into 8 ohms - continuous; or
145 Watts into 4 ohms; both channels driven; both chan-
nels driven; 20Hz to 20kHz @ <0.1% THD&N
FREQUENCY RESPONSE: -0.5dB 10Hz to 40kHz (1W);
-3.0dB 15Hz to 100kHz (1W)
SIGNAL TO NOISE RATIO: -100dB (A-weighted ref
80W rated power); -90dB (Unweighted ref 80W rated
power)
THD&N: 0.1% 20Hz to 20kHz @ rated power;
PHASE: Polarity Non-inverting
INPUT IMPEDANCE: 19k ohms (Power Amplifier Inputs)
DAMPING FACTOR: 100 @ 8 ohms
GAIN: 24dB (16x)
SENSITIVITY: 1.6VRMS input for rated power
This symbol is intended to alert the user to the
presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
We at Sonic Frontiers hope you will derive many years
of listening pleasure with your new Anthem Integrated 2.
This Operating Manual contains important information
regarding the operation and care of the Integrated 2.
Be sure to read this manual carefully and follow these
instructions in order to keep your unit performing and
sounding its best. Please contact Sonic Frontiers if you
have any questions, a Customer Service Representative
will be pleased to assist you.
WHAT'S IN THE BOX?
In addition to the Integrated 2, it's cover, and the o
ating manual you are presently reading (with associa
inserts and warranty card), there are a few more item
take inventory of before steps are taken to make the
Anthem Integrated 2 operational.
These items are:
• 2 6DJ8/6922 tubes
• a glove for handling the tubes
• a detachable AC power cord
• 18 phillips screws
• a phillips screwdriver
• remote handset
After completing an inventory of these items, proce
to the next steps.
