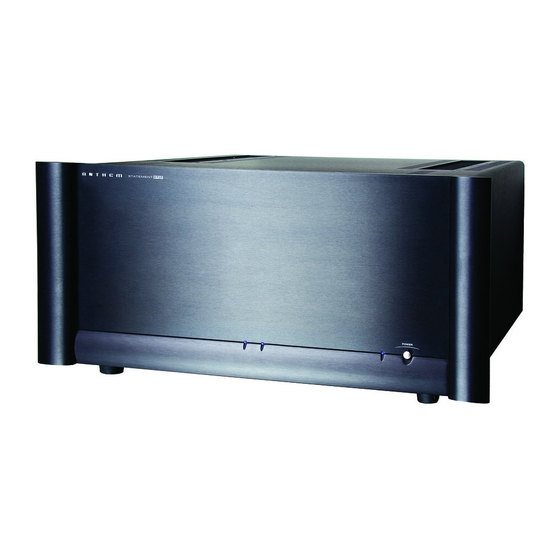

Anthem Statement P2 Operating Manual
Hide thumbs
Also See for Statement P2:
- Product review (3 pages) ,
- Brochure & specs (5 pages) ,
- Operating manual (10 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anthem Statement P2
Summary of Contents for Anthem Statement P2

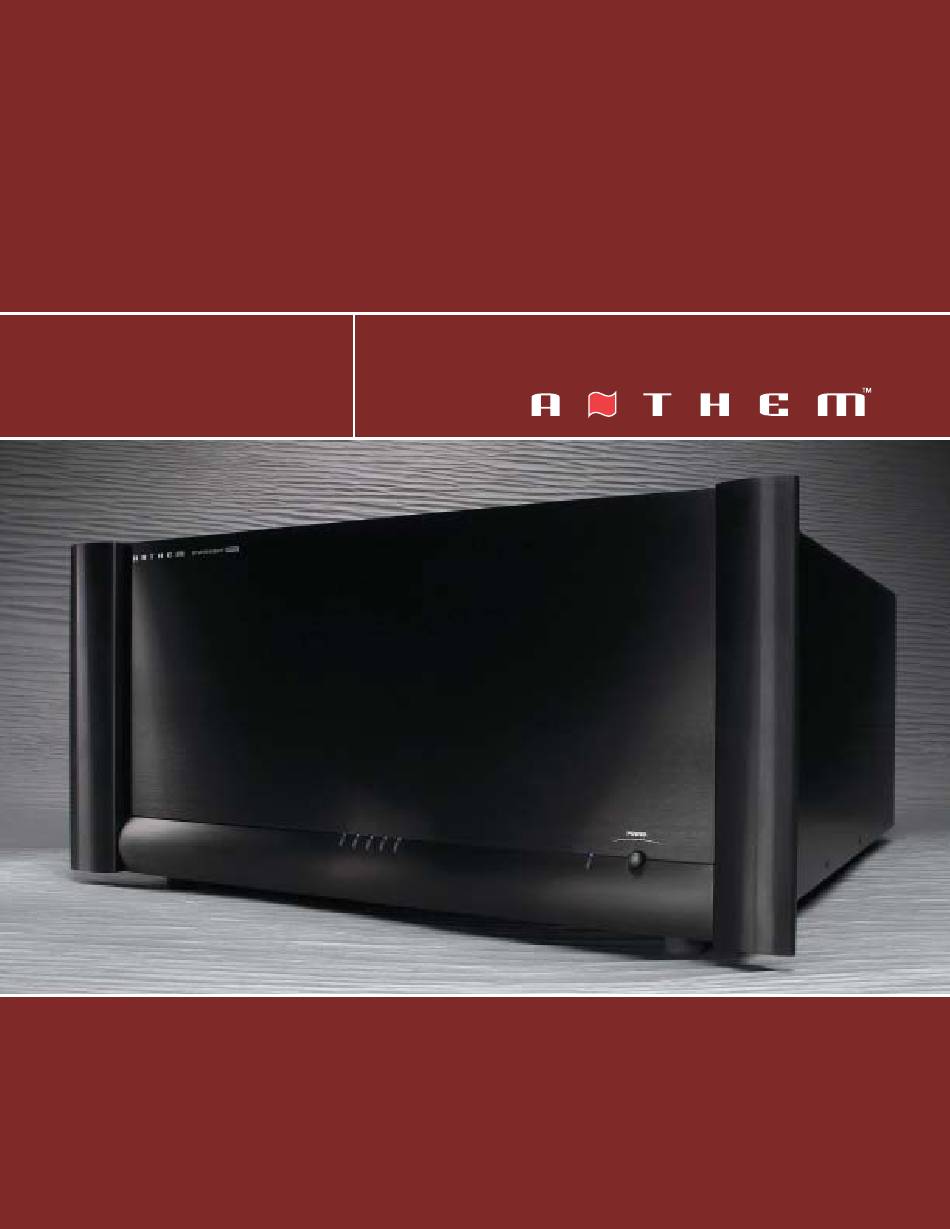

- Page 1 STATEMENT P2/P5 O P E R AT I N G M A N U A L w w w . a n t h e m A V . c o m...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS READ THIS SECTION CAREFULLY BEFORE PROCEEDING! WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowpoint within an equilateral triangle warns of the presence of uninsulated “dangerous voltage”... - Page 3 8. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
- Page 4 21. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. Copyright © Anthem ™ /Sonic Frontiers International. All rights reserved. The information contained herein may not be reproduced in whole or in part without our express written permission.
-
Page 5: Packing List
Anthem equipment allows audiophiles to almost “be there” each and every time they sit and enjoy music or home theater in the comfort of their home. Anthem provides all this with the highest level of craftsmanship, sophisticated circuit designs, superior quality parts and materials, modern intuitive ergonomics, and stylish industrial design. -
Page 6: Supply Power Requirements
1. INTRODUCTION continued … 1.2.2 SUPPLY POWER REQUIREMENTS The Statement amplifier operates from a single phase AC power source that supplies between 105V and 130V at a frequency of 60 Hz. It cannot be changed from 120V to 240V operation. Note: The Statement P5 uses two power cords –... -
Page 7: Input Connections
2. CONNECTIONS AND OPERATION INPUT CONNECTIONS Balanced XLR connection offers the highest transmission quality, particularly over long cable lengths, because it rejects noise and hum pickup. If using the XLR inputs, set the input switches to the 0 dB position if your preamplifier’s XLR outputs are at normal line level, or to the -6 dB position if your preamplifier’s XLR outputs are at 2x line level. - Page 8 2. CONNECTIONS AND OPERATION continued … REAR PANEL LAYOUT WARNING STATEMENT P2 WARNING STATEMENT P5 1 – Circuit breakers (not shown – located on top) 6 – On-Mode (Trigger / Manual / Auto) 2 – Single Ended RCA Input 7 – Speaker Binding Posts 3 –...
-
Page 9: Power Requirements
Outputs Statement P2 ....2 pairs Binding Posts, 1 Relay Trigger (3.5 mm Mono Jack) Statement P5 ....5 pairs Binding Posts, 1 Relay Trigger (3.5 mm Mono Jack) Switches Front Panel . - Page 10 Anthem Electronics will repair or replace any defective components free of charge. Warranty is void if the Anthem product is not purchased from an Authorized Anthem Dealer, if the serial number has been removed, altered, or defaced, if the product has been operated or handled other than in accordance with the instructions in its Operating Manual or otherwise abused, misused, damaged by accident or while in transport, tampered with, modified, or repaired by anyone other than Anthem Electronics or an authorized Anthem Electronics service center.
- Page 12 D E S I G N E D A N D M A N U F A C T U R E D I N N O R T H A M E R I C A A n t h e m c a n b e r e a c h e d f r o m 9 : 0 0 a m t o 5 : 3 0 p m ( E S T ) b y p h o n e 9 0 5 - 3 6 2 - 0 9 5 8 o r 2 4 h o u r s a d a y b y f a x 9 0 5 - 5 6 4 - 4 6 4 2 ™...
