DIGITAL TIME SWITCH
DIN RAIL MOUNTING
TECHNICAL DATA
Number of Channels: 1
Total number of ON and OFF events: 20
Switching Interval: 1 Minute
Manual Override: to the next scheduled event or
permanently.
Input Voltage: 120 VAC, 50/60 Hz
Power Consumption: 5 VA MAX.
Output:
Switch Configuration: SPDT (unpowered)
Switch Contact Rating: 16A Resistive
Battery Backup: 150 Hours
Battery Type: Rechargeable Ni-Cd
Operating Temperature:
14° to 140° F (-10° to 55° C)
Accuracy at 68° F: + /- 2.5 seconds/day
Dimensions: 1-7/16"w X 2-7/8"d X 3-1/4"h
Weight: 4 oz.
INSTALLATION
CAUTION:
1. INPUT WIRES TO CONTROLLER MUST
BE DEDICATED, i.e. NO OTHER LOAD
CONNECTED TO THE SAME CIRCUIT.
2. UNIT IS TO BE INSTALLED BY A
LICENSED ELECTRICIAN
DIN RAIL MOUNTING # 50022 (35 mm)
Locate red clip on back of unit and push it down.
Mount unit to DIN rail. Push red clip up from bot-
tom to lock unit onto rail. To remove from rail,
push entire unit straight up thereby forcing the
red clip down to the open position. For surface
mounting, a small din rail is provided.

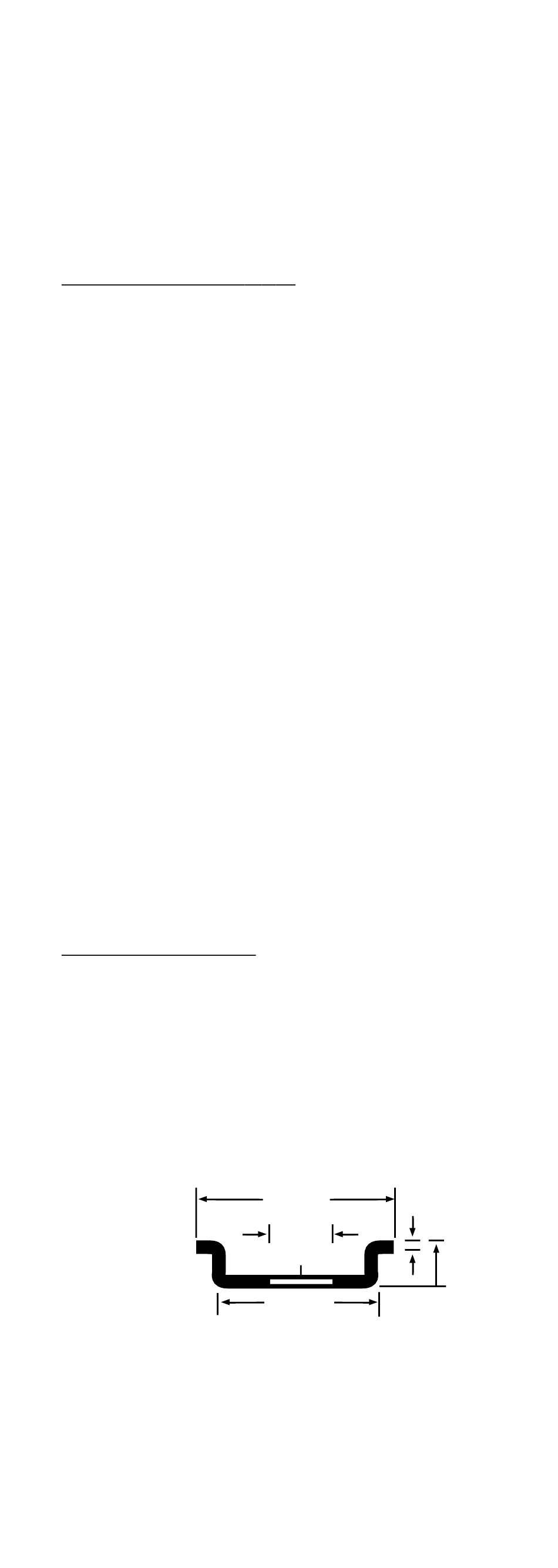

TORK DIN 100
7 DAY
35mm
6.3mm
27mm
1 mm
7.5mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tork DIN 100
Summary of Contents for Tork DIN 100
-
Page 1: Technical Data
TORK DIN 100 DIGITAL TIME SWITCH 7 DAY DIN RAIL MOUNTING TECHNICAL DATA Number of Channels: 1 Total number of ON and OFF events: 20 Switching Interval: 1 Minute Manual Override: to the next scheduled event or permanently. Input Voltage: 120 VAC, 50/60 Hz Power Consumption: 5 VA MAX. -
Page 2: Wiring Diagram
WIRING DIAGRAM SPDT TIMER SUPPLY CHANNEL 1 To begin setting the unit, remove the clear cover by lifting up from the bottom. Insert a pin into the reset opening to clear all memory. After a few seconds, all numbers across the top (days of week) will flash. TO SET CLOCK NOTE REGARDING DAYLIGHT SAVING TIME: A manual daylight saving time adjustment is... - Page 3 3 - Press Minute (MIN) key to set current minute. Release CLK key. TO SET SCHEDULE For convenience, write out your desired sched- ule on a separate paper. 1 - Press schedule (SCH) key once. The dis- play will show all the days of the week in numbers.
- Page 4 To return to automatic run mode, press ON/OFF key until appears in lower left of display. RESET In order to clear all memory, including real time and schedules, insert pin into reset opening. ® TORK 1 GROVE STREET, MT. VERNON, NY 10550 TEL: 914-664-3542 FAX: 914-664-5052 MLI-117(B)
