Subaru Legacy 2005 Service Manual page 265

Belt tension (without belt tension gauge):
Front side belt
When installing new parts
7 — 9 mm (0.276 — 0.354 in)
At inspection
9 — 11 mm (0.354 — 0.433 in)
Rear side belt
When installing new parts
7.5 — 8.5 mm (0.295 — 0.335 in)
At inspection
9.0 — 10.0 mm (0.354 — 0.394 in)
GEN
P/S

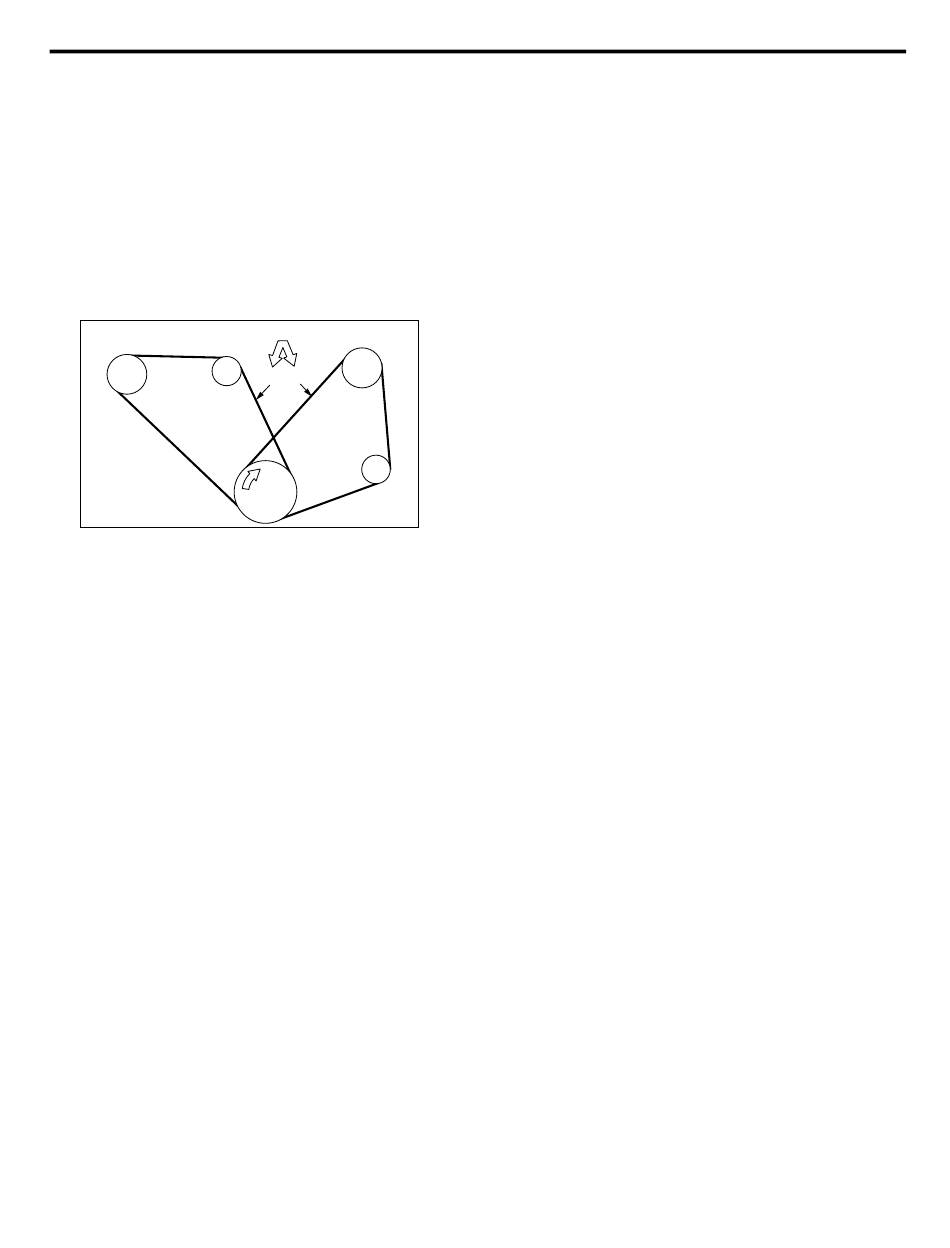

(A) Front side belt
(B) Rear side belt
(C) 98 N (10 kgf, 22 lbf)
C/P Crank pulley
GEN Generator
P/S Power steering oil pump pulley
A/C Air conditioning compressor pulley
I/P Idler pulley
(C)
A/C
(A) (B)
I/P
C/P
ME-00226
ME(H4SO 2.0)-39
V-belt
MECHANICAL
