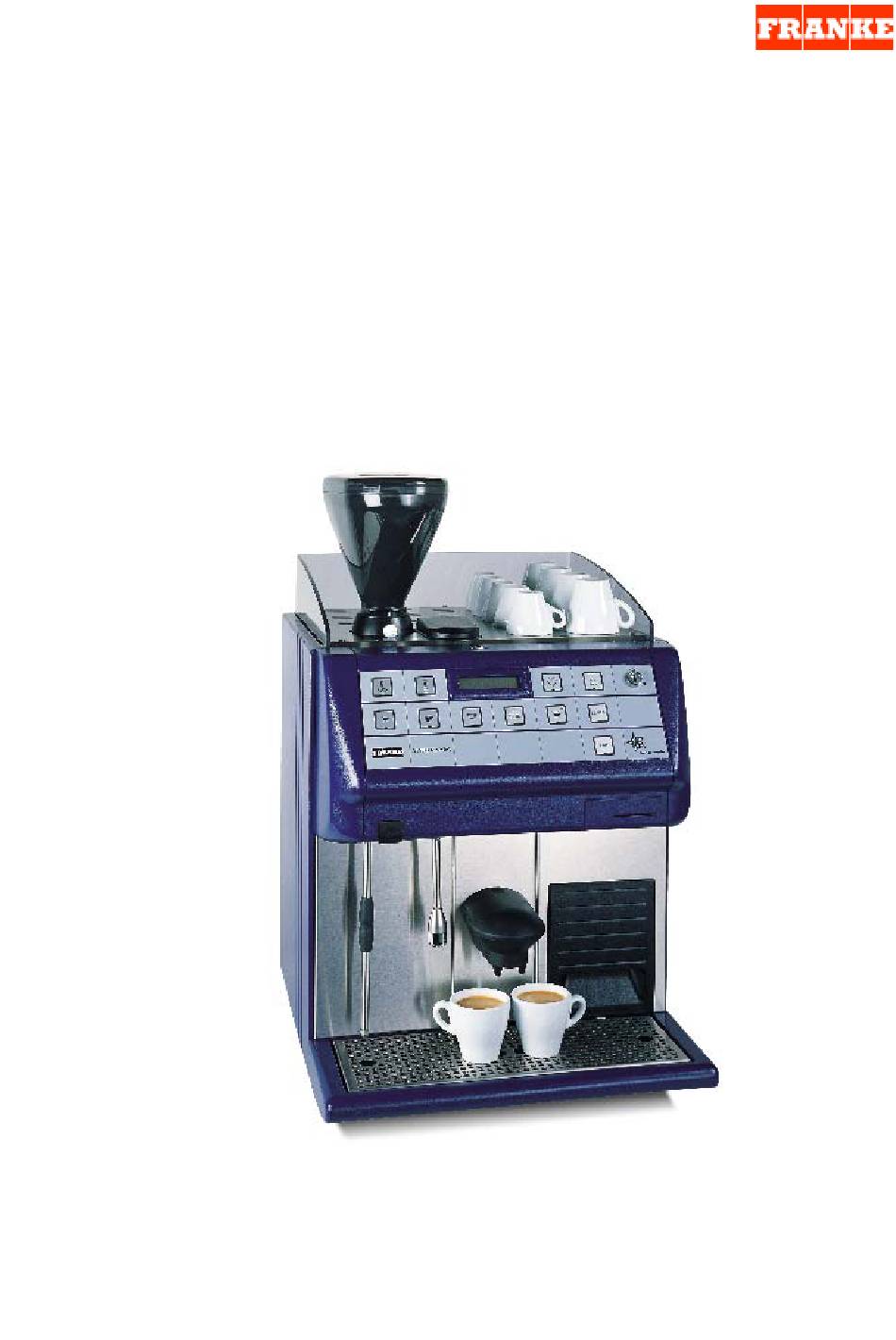

- Page 1 Programming Instructions Typ G Swiss Mambo Softwareversions up from G 2.00; G3.01 Date: Mai 1998 Visum: Franke Kaffeemaschinen AG CH-4663 Aarburg Tel.: *41 (0)62 787 37 37 Fax: *41 (0)62 787 30 10 www.km.franke.ch...
-
Page 2: Table Of Contents
Coffee-Machine G MANUAL 2/1 CONTENTS Programming keyboard General view Access into program parameters Exit from the programming tree structure Input key Main groups in the programming tree structure Installation 2.1.1 Explanations of the installation main group Service 2.2.1 Calibration of the Grinder Program parameters Counters Set-up... -
Page 3: Programming Keyboard
Coffee-Machine G MANUAL 2/2 Programming keyboard 1.1 General view Coffee beans container Inlet for ground coffee Cup storage space CLEAN Control panel System Chipcard Coffee outlet with integrated Cappucinatore Hot water outlet Coffee cake container Steam tube G rate... -
Page 4: Access Into Programming Parameters
Coffee-Machine G MANUAL 2/3 1.2 Access into program parameters User: The "Adjust-Card" allows fast and immediate access to adjust and optimize product parameters, such as water quantity, grind quantity, steam-time and milk quantity for Cappuccino, coffee brewing temperature and pricing for internal data central. Procedure: 1. -
Page 5: Input Key
Coffee-Machine G MANUAL 2/4 1.4 Input keys NEXT When this key is actuated we move on to the next pro- gramming step. BACK Similar function to the NEXT key to move back one step in the programming tree structure. This key is used to confirm an input, to access a main group of the programming tree struc- ture or certain program steps to... -
Page 6: Installation
Coffee-Machine G MANUAL 2/6 2.1 Installation INSTALLATION In this maingroup we have the possibility to activate all actuators manually. In the dis- SCALD HEAD 1:UP 2:DN 3:INIT play will appear a small menu. By pres- next back sing the correspon- SLIDE ding numeric pad the 1:SL 2:SR... - Page 7 Coffee-Machine G MANUAL 2/7 It then travels to the basic position. This reference cycle enables the piston itself to measure the geometry of the brewing assem- bly and set its top and bottom points, together with the position of the stop switch. Slide 1 : SL The left slide is activated (Y10) as long as the key is pressed.
-
Page 8: Service
Coffee-Machine G MANUAL 2/8 Output 2 Key 1: Y21 = Coffee outlet in front. Key 2: Y22 = Common outlet. Relay 1- 7: Key 1 = Relay 1 Key 7 = Relay 7 Relay 8-14: Key 1 = Relay 8 Key 7 = Relay 14 2.2 Service This main group is considered as a help for the service engineer. - Page 9 Coffee-Machine G MANUAL 2/10 Calibration of grinders CAL -> OK If in the main group "SETUP" under "MILL OPTIONS" the "CL AFTER CHECK" is set on 2, it is necessary to ( N EXT ) calibrate the grinders prior to the Key OK ? "MILLCHECK".
- Page 10 Coffee-Machine G MANUAL 2/14 Parameters in Programming Tree Default- facts from Tree Parameter Function E-prom Remarks SERVIC DATE Date of last service TELEPHONE Telephone no. of service 00000.00. 99999.99. station 00.00 99.99 20 digits SERVICE Automatically reminder to the 30000 CHECK operator to call the service for a check-up...
- Page 11 Coffee-Machine G MANUAL 2/15 Default- facts from Tree Parameter Function M a x E-prom Remarks PROGR MILLTIME Mill time / Mill quantity 12 s time (s) PARA MILL QUANT 18 g weight (g) M ET E R MILLTIME 2 OR Second milltime or quantity when 12 s time (s)
- Page 12 Coffee-Machine G MANUAL 2/16 Default- facts from Tree Parameter Function E-prom Remark SETUP LANGUAGE LANGUAGE Dialogue language 0 = English 1 = German 2 = French 3 = Spanish DEVICE SELF 0 = NORMAL, 1 = SELF LOCK LEVEL 0 = No locking of boilers 1 = Coffee, tea, steam Install interlocked...
- Page 13 Coffee-Machine G MANUAL 2/17 Default- facts from Tree Parameter Function M in M a x E-prom Re mark s S E T U P MILL OPTIONS AFTER Measuring of the coffee quantity CHECK 0 = No ejection after check 1 = Ejection after check 2 = Measuring with scald head in g AUTO MILL...
-
Page 14: Setup
Coffee-Machine G MANUAL 2/18 Default- facts from Tree Parameter Function E-prom Remarks SETUP OTHER OPTIONS SOFTENER Water softener system 0 = Without water softener system 1 = Water softener connected PRINTER Tape printer 0 = Without printer 1 = With printer LF 2 = With printer CR LF CYCLES Increment of product touch... -
Page 15: Additional Programming Possiblities With The Software G .301
Coffee-Machine G MANUAL 2/19 Additional programming possiblities with the Software G .301 Default- facts from Tree Parameter Function E-prom Remarks SETUP FAST BREWING SYSTEM FAST BREWING 0 = Fast brewing system 0ff Pregrinding SYSTEM 1 = Fast brewing system On GRINDER 1 = Left grinder 2 = Right grinder... -
Page 16: Concise Description Of The Special Options
Coffee-Machine G MANUAL 2/20 Concise description of the special options Grinding and When this option is selected, the quantity to be ground is requested twice. mixing While coffee production is in progress, the left and right mills are activated for MILL QUANT 1 and 2. Brewing The production of brewed coffee is effected in accordance with the following cycle: the brewing piston stops at the topmost brewing...
