SPECTRA X-XL
Original Operating Instructions
Read the operating instructions and the chapter on safety information before operating the
machine. Keep the operating instructions near the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPECTRA X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Franke SPECTRA X

Summary of Contents for Franke SPECTRA X

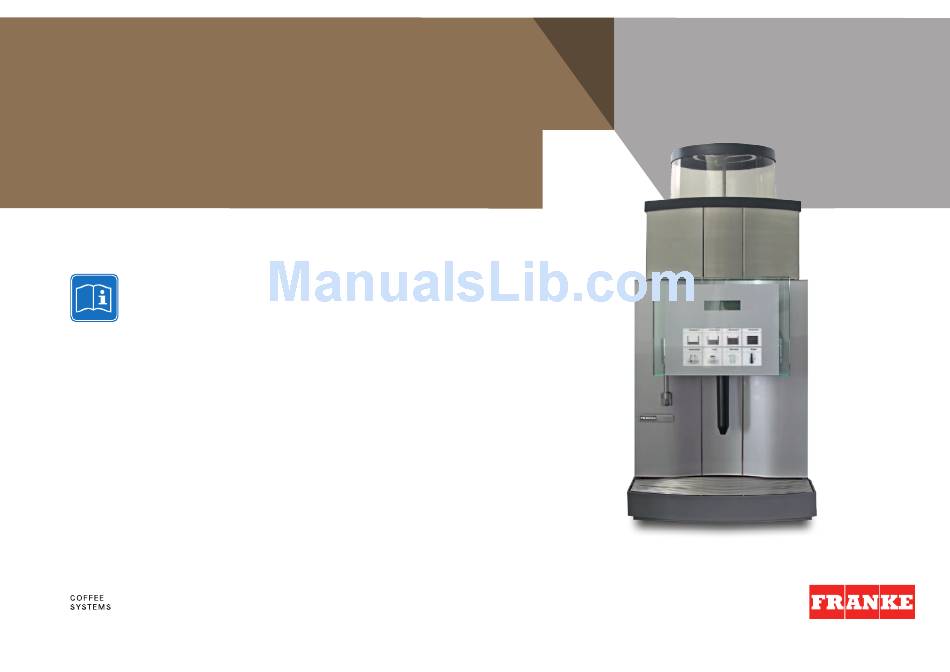

  • Page 1 SPECTRA X-XL Original Operating Instructions Read the operating instructions and the chapter on safety information before operating the machine. Keep the operating instructions near the machine.
  • Page 3 The Spectra is a powerful and space-saving coffee machine.It adapts to your needs perfectly. Your customers will be impressed. We hope you enjoy your coffee machine and that it will bring you con- sistently happy customers. Sincerely, FRANKE Kaffeemaschinen AG...

  • Page 4: Table Of Contents

    Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 .

  • Page 5: Explanation Of Symbols

    Explanation of symbols Describes in text and pictures a DANGER indicates potentially life- DANGER step that you must perform. threatening danger or grave injury. WARNING indicates risk of injury. WARNING Steps on a background are op- tional. They must be performed depending on the model of your CAUTION indicates risk of minor CAUTION...

  • Page 6: Or Your Safety

    Proper use Spectra X-XL The Spectra X-XL is a coffee machine for use in food service, offices • Have the safety features checked regularly by our Service. Have and similar environments. It is designed to process ground coffee the machine serviced at regular intervals.

  • Page 7: General Risks

    • Do not touch the outlets or nozzles. • Only service personnel should open the machine! The surfaces of the cup warmer are hot. • Repairs may be performed only by Franke Service Technicians. • Do not touch these surfaces.
  • Page 8 WARNING NOTICE Risk of scalding! Damage from unsuitable raw materials! Due to missing outlet. The coffee machine is not suitable for the processing of instant cof- fee, aromatized coffees or whole beans. • Always use the machine with the correctly installed outlet. •...

  • Page 9: Cope Of Delivery And Identification

    Item no.: 1H 325 974 The configuration of your coffee machine may differ from that shown in the instructions. Please refer to your purchase agreement. Additional accessories may be obtained directly from your retailer or from FRANKE Kaffeemaschinen AG in Aarburg, Switzerland.

  • Page 10: Identification

    Identification Spectra X-XL type plate Cup warmer type plate (example) (example for the add-on units) Franke Kaffeemaschinen AG Franke Kaff eemaschinen AG Franke-Strasse 9 Franke-Strasse 9 Manufacturer CH-4663 Aarburg CH – 4663 Aarburg Switzerland Switzerland Machine number Name: Spectra X-XL (Commercial Coff...

  • Page 11: Description Of The Machine

    Description of the machine In this section you will learn more about the functions and options of your coffee machine and where the controls are located. Capacities and operator panels Introduction Capacities The coffee machine has numerous options. To give you an overview Specialty Hourly capacity of your machine, we will illustrate various options with a sample...

  • Page 12: Spectra X-Xl And Add-On Unit

    Spectra X-XL and add-on unit Ground coffee container Programming keypad cover Cup warmer (optional) To enjoy coffee at its best, Cleaning lock you need pre-heated cups. The cup warmer fits perfectly Display next to your Spectra X-XL. Operator panel (Basic, Vetro)

  • Page 13: Display And Programming Keypad

    Display and programming keypad Programming keypad Cover You can use the programming keypad to switch your Spectra X-XL on and off or start a cleaning or rinsing cycle, and you can individually Card reader program your coffee machine with the Adjust Plus Card. The card reader enables you to save programmed settings on the Adjust Plus Card.

  • Page 14: Installation And Technical Data

    Installation and technical data Your Spectra X-XL must be properly installed so that you can operate it correctly—one of our service technicians will do that for you. You'll have to take care of a few things first. You'll find the preparations for problem-free en- joyment of your coffee machine here.
  • Page 15 Dimensions of the Spectra X-XL Installation dimensions of the Spectra X-XL Front view Side view min. min. min. min. min. Top view Cross-section from above (grommet hole) Prepare a stable, ergonomic surface . The (min. load capacity: 150 kg or 330.7 lb) control unit should be at eye level.
  • Page 16 Technical data for the cup warmer Add-on unit installation dimensions Capacity up to 120 cups (depending on cup size) Electrical connection 200 - 240 V 1L N PE 300 W 50/60 Hz  Fuse: 10 A Electric cable 2000 mm Weight 17 kg Width 300 mm (11¾") Depth 580 mm...

  • Page 17: Start-Up, Filling And Emptying

    Start-up, Filling and Emptying In this chapter you will learn how to start up your Spectra X-XL coffee machine for the first time. In addition to the start-up procedure, you will learn about processes that take place automatically during start-up and about additio- nal preparations.

  • Page 18: Add Ground Coffee

    Add ground coffee WARNING Risk of injury, eye injury and damage to the machine! Objects in the ground coffee container may splinter and be ejected, leading to damage to the machine or injury. Never put anything into the ground coffee container! Never poke any object around in the ground coffee container! Open ground coffee container.

  • Page 19: Coffee Grounds Ejector (Optional)

    Coffee grounds ejector (optional) The use of a coffee grounds ejector is required, depending on the region. The coffee grounds ejector separates the coffee grounds from the rinse water and thus prevents blocked pipeline systems. Use your coffee grounds ejector in accordance with its operating instructions.

  • Page 20: Preparing Drinks

    Preparing drinks You chose the Spectra X-XL because you love coffee and want to offer your customers something special. You will find information about preparing drinks and the variations possible for your specialty drinks here. Select brewing setting The brewing setting must be selected in order for coffee to be obtai- ned.

  • Page 21: Insert/Remove Outlet

    Insert/remove outlet Outlet tube Special outlet for jug Cleaning tube CAUTION Risk of scalding! Due to missing outlet. Use the machine only with the correctly installed outlet. Turn the outlet tube clockwise Select desired outlet and put it by approx. one quarter of a in place rotation.

  • Page 22: Preparing Drinks With The Basic Control Panel

    Preparing drinks with the Basic control panel WARNING Risk of scalding or burning! The dispensers and drinks are hot. Only touch the outlets on the insulated handles. Do not touch the area under the outlets. In case of scalding or burns, immediately cool the affected area Select the desired product.

  • Page 23: P Reparing Drinks With The V Etro Control Panel ( Variation )

    Preparing drinks with the Vetro control panel (variation) WARNING Risk of scalding or burning! The dispensers and drinks are hot. Only touch the outlets on the insulated handles. Do not touch the area under the outlets. In case of scalding or burns, immediately cool the affected area and, depending on the severity of the injury, consult a doctor.

  • Page 24: D Ispensing Hot Water

    Hot water dispenser WARNING Risk of scalding or burning! The dispensers and drinks are hot. Do not touch the area under the outlets. In case of scalding or burns, immediately cool the affected area and, depending on the severity of the injury, consult a doctor. Place the appropriate cup Select hot water.

  • Page 25: Cleaning, Rinsing And Servicing

    Cleaning, rinsing and servicing Even a coffee machine like the Spectra X-XL must be cared for. To ensure high-quality flavor, the Spectra X-XL must be cleaned at least once daily and serviced at regular intervals. Overview of the separate cleaning instructions...

  • Page 26: Replacing The Detergent Canister

    Replacing the detergent canister WARNING Risk of acid burns caused by detergent. The undiluted detergent has an acidic-effect when it comes into contact with skin or clothing. • Make sure to wear your personal protective equipment. • Wear protective gloves and protective goggles. Switch coffee machine off.

  • Page 27: C Onfiguring

    Konfigurieren Your Spectra X-XL is completely and individually programmable – so that the Spectra X-XL is just as flexible as you are. We have kept the programming simple to make your job easier. Try it for yourself. Controls Programming keypad Navigating within the menu Insert the Adjust Plus Card into the card reader.
  • Page 28 Modify your product 1 Products 1.11 Coffee quantity 1.12 Hot water quantity 1 Products settings. You can use 1.1 Select product various parameters to Product buttons for making –/Press the –/Press the (–/+ approx. (–/+ approx. control and define the selection 100 ml) 4 s)
  • Page 29 2.5 Timer 3 2.6 Timer 4 1 Products ON 07:00 M*T*W*T*F S S ON 08:00 M*T*W*T*F S S OFF 17:00 M*T*W*T*F S S OFF 20:00 M*T*W*T*F S S Set the switch-on time. Set the Set the switch-on time. Set the 2 Clock switch-off time.
  • Page 30 5.1 Machine total 5.3 Filter water qty 5.5 Number of cleanings 1 Products Number Remaining qty 290 lit Number Filter capacity 2500 lit Last 02.01.2010 19:25 Next 25.11.2010 The display shows the total The remaining quantity up to The display shows the number 2 Clock number of all drinks ever the wearing of the water filter...
  • Page 31 6.3 Filter water qty 6.11 Product counters 1 Products Remaining qty 290 lit Clear? -> Button − Next 25.11.2010 Clear? -> Button − Water quantity remaining until The product counter is 2 Clock water filter is to be reset. The other counters are replaced (difference between not affected.
  • Page 32 –/+ button for changing 6 Clear counters Save the settings of the Spec- Copy the settings on the Card tra X-XL on the Adjust Plus to the Spectra X-XL. Card. Press CLEAN to start copying. 7 Error messages Press CLEAN to save the data.

  • Page 33: Shut Down And Disposal

    Observe local disposal regulations when disposing of consumable materials, waste and detergents.. Risk of damage to the machine! Contact your FRANKE service team for proper storage. Observe the storage conditions and drain your coffee machines. Disposing of the coffee machine Storage temperatures: -10 °C to +50 °C...

  • Page 34: Troubleshooting

    Troubleshooting If a problem occurs, your Spectra X-XL will give you instructions. Events and information are shown on the display. Should you be unable to resolve a problem despite all best efforts, please contact our ser- vice department. Help with Machine Errors Event no.

  • Page 35: Certifications

    Certifications Declaration of conformity FRANKE Kaffeemaschinen AG in Aarburg, Switzerland, certifies that the Spectra X-XL coffee machine and its optional add-on units comply with the following standards. The Spectra X-XL coffee machine checked for compliance with the following standards: EN 60335-1:2002/AC2010+A11:2004+A1:2004+A12:2006+A2+A13:2008+A14:2010, EN 60335-2-15:2002/A2:2008, EN 60335-...
